The Best Selling, Highest Quality House Plans Online


WILSON House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
read our customer stories and testimonials
"The plans were great. We loved the open plan and large great room and could not wait to move in. Thank you."
— Carol B. of Pennsylvania

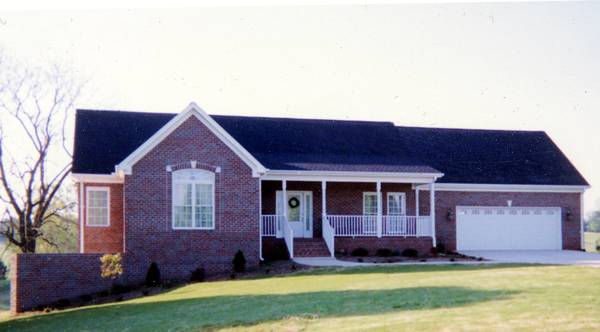

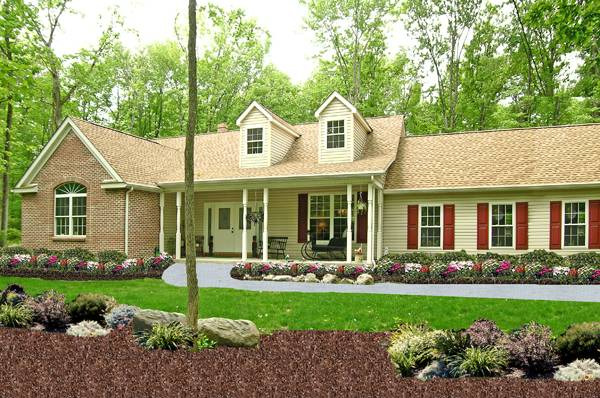

Front Photo

Front Photo image of WILSON House Plan
All images copyrighted by designer.

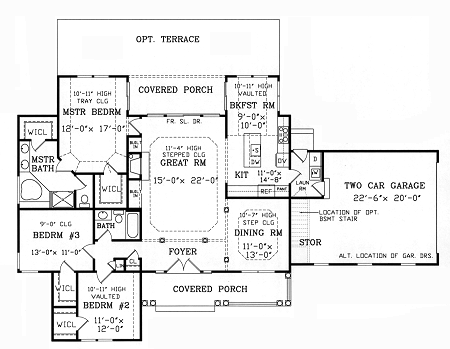

First Floor Plan

First Floor Plan image of WILSON House Plan
All images copyrighted by designer.





Plan: THD-JAA-3698
ENERGY STAR Heated Area: 1783 Sq. Ft.
First Floor: 1783 Sq. Ft.
Width: 74 Ft. 10 In.    Depth: 47 Ft. 8 In.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Country, Southern
Foundation: Basement, Crawl Space, Slab Foundation
Designer Notes:
Learn more about the amenities and key features of WILSON House Plan.

Available Packages
 PDF BID SET  $605.00
 Four Set Package  $705.00
 Eight Set Package  $795.00
 PDF Construction Set - Single Use  $895.00
 Reproducible Vellum Set  $920.00
 CAD FILE - single use  $1,395.00
Foundation Options
 Crawl Space  $0.00
 Slab Foundation  $0.00
 Basement  $100.00
Plan Options
 ENERGY STAR® Approved  $275.00
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $350.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:74' 10"
Depth:47' 8"
Dwelling Number:Single
  EXTERIOR STYLE
Country
Southern
Farm House
Ranch
  FACADE
Owner's Choice
OwnersChoice
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:1783 Sq. Ft.
Total: 1783 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:490 Sq. Ft.
Porch:181 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Basement
Crawl Space
Slab Foundation
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9.1
Second Floor Ceiling:0
Maximum House Height:22' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/ 12
  ROOF LOAD
Live:30
Dead:10
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
Attached
Built-Ins
Covered Front Porch
Covered Rear Porch
Dining Room
Fireplace
Formal Dining Room
Foyer
Front Porch
  KEY FEATURES
Grand Master Suite
Great Room
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Special Ceiling Treatments
Split Bedrooms
