  1. Front Rendering

    Exclusive Plan from The House Designers
    Front Rendering

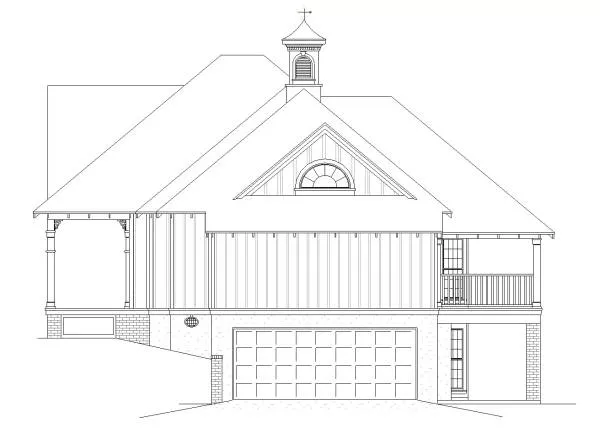

  2. Right side elevation with basement

    Right side elevation with basement

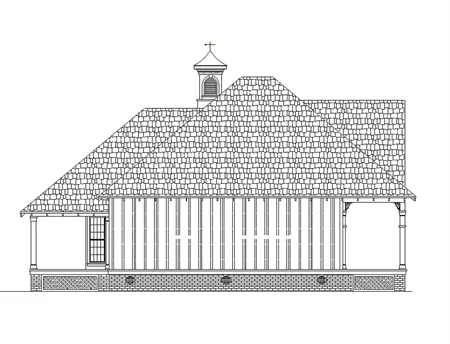

  3. Left side elevation

    Left side elevation

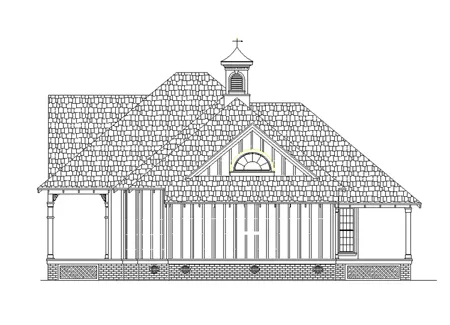

  4. Right Side Elevation

    Right Side Elevation

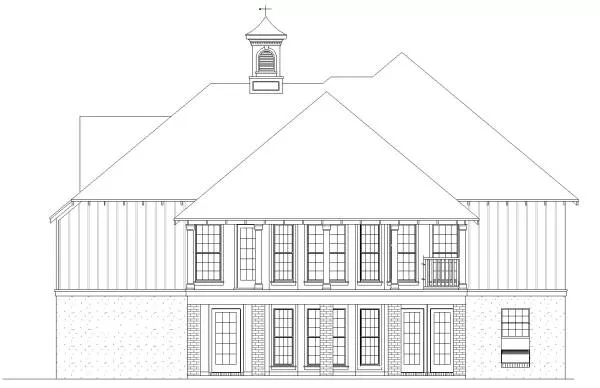

  5. Rear view with basement

    Rear view with basement

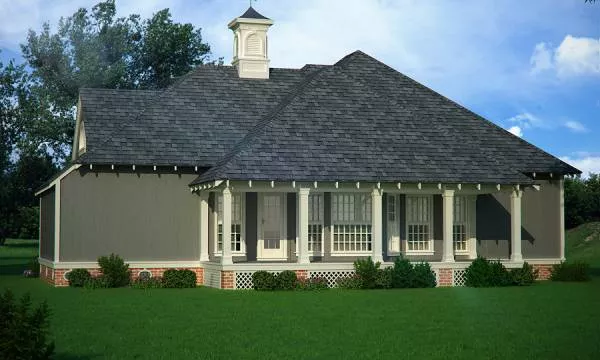

  6. Rear Rendering

    Rear Rendering

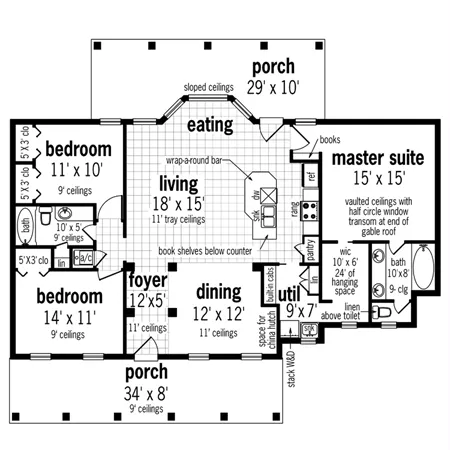

  7. Main Level Floor Plan

    Main Level Floor Plan

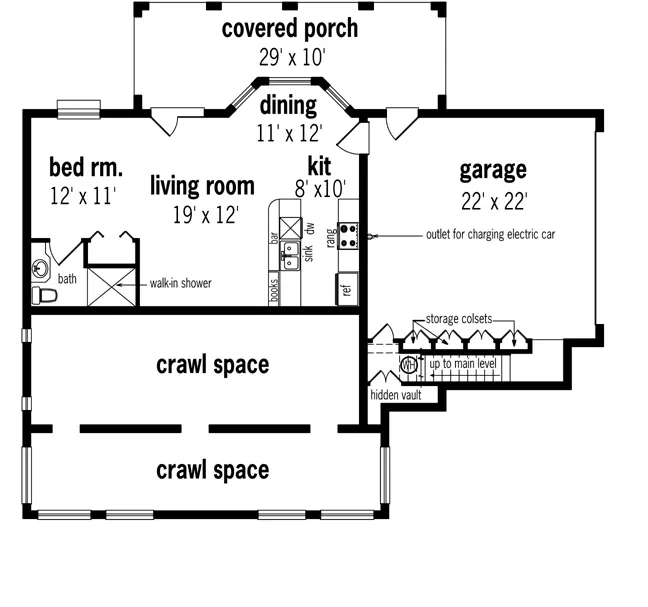

  8. Optional Day Light Basement Foundation

    Optional Day Light Basement Foundation

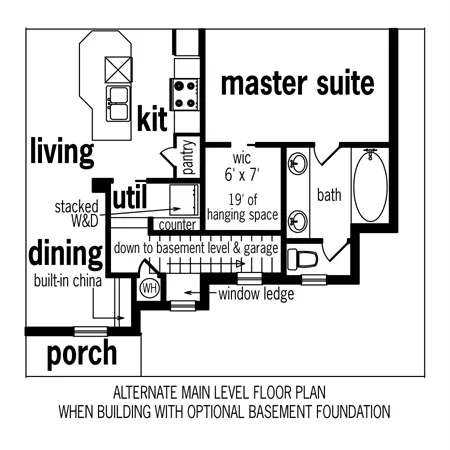

  9. Optional Basement stair location

    Optional Basement stair location
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Although very compact, this is a super energy saving home, but without additional building cost. The small footprint will fit on very small lots, but the inside boasts big home features. With abundant storage space, the utility room is conveniently located between the master bedroom and the kitchen, and it can be accessed from either room.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

Main Level Floor Plan

Main Level Floor Plan
All images copyrighted by designer.

Optional Day Light Basement Foundation

Optional Day Light Basement Foundation
All images copyrighted by designer.

Optional Basement stair location

Optional Basement stair location
All images copyrighted by designer.


Plan #4294: Oakland Park - 1520

ENERGY STAR Heated Area: 1,565 Sq. Ft.
First Floor: 1,565 Sq. Ft.
Width: 54 Ft.    Depth: 48 Ft.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Country, Craftsman
Foundation: Crawl Space Foundation, Optional walk out basement

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $660.00
 1 set  $664.00
 4 sets  $684.00
 8 sets  $729.00
 12 sets  $779.00
 Reproducible Set  $819.00
 PDF Construction Set - 1 Build PDFs Now!   $819.00
 Cad Files  $1,638.00
Foundation Options
 Crawl Space Foundation  $0.00
 Optional walk out basement PDFs Now! available   $90.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Mirror Reverse Set   $60.00
 FULL REVERSE PLANS ON REQUEST   $125.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
54' 0"
Width:
48' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Country
Craftsman
Farm House
Builders
FACADE
Siding
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,565 Sq. Ft.
Main Level:
1,565 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
535 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Crawl Space Foundation
Optional walk out basement
HOUSE AND CEILING HEIGHTS
9 & 11
First Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
10:12
Primary:
INSULATION (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
KEY FEATURES
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Drive-under
Foyer
Front Porch
Great Room
Guest Suite
In-law Suite
KEY FEATURES
Kitchen Island
Laundry 1st Fl
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Slab
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
