HOUSE PLANS
START AT $1,000.00
SQ FT
1,567
BEDS
2
BATHS
2
STORIES
1
CARS
2
WIDTH
28'
DEPTH
94'
© copyright by designer

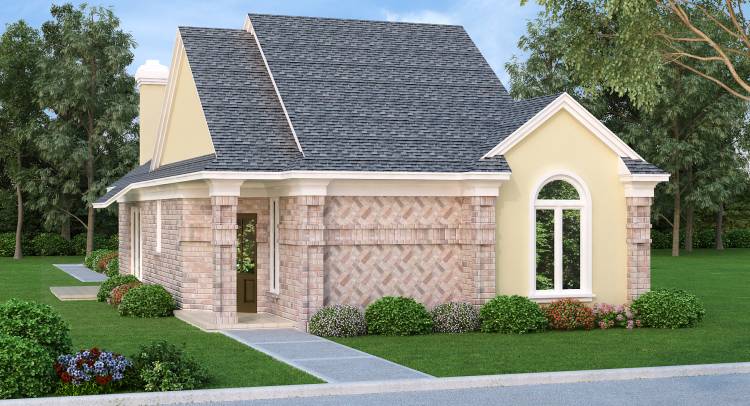

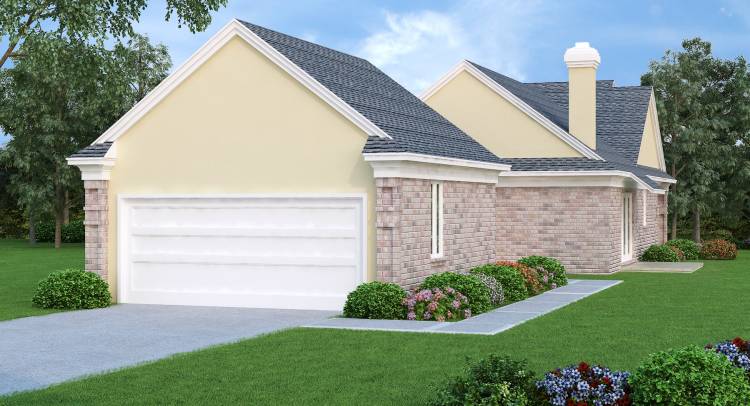

Photographs may reflect modified home | View all 2 images
SQ FT
1,567
BEDS
2
BATHS
2
STORIES
1
CARS
2

House Plan 9035: Swenson downs - 1503

Designed especially for very narrow lots, this luxury 2 bedroom is best suited for patio home developments. One side of the plan is windowless intended for zero lot line applications. All of the glass is oriented to the opposite side of the plan and provides great privacy if oriented to the windowless side of the adjoining patio home. With so much glass, the rooms are airy and bathed in natural light further enhanced by the large skylight in the living room sloped ceiling. The living room also has an energy efficient wood burning fireplace perfect for spending cozy nights at home. The master suite is fit for a king and everything is king sized. There are two huge walk-in closets, built-in desk and books, a plush bath with twin vanities, soaking tub, private toilet, separate shower, linen storage. The secondary bedroom is also generously sized and complete with a walk-in closet and access to a luxury bath. Designed for the gourmet cook, the kitchen is open to the living room and comes complete with a serving bar.
Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
$800
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,000
4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets
Four printed sets of house plans
$1,085
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,130
8 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

8 Printed Sets + PDF
PDFs NOW!™
Digital plans plus 8 printed sets
$1,240
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
$1,240
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$1,900
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Bedroom features
Walk-in Closet
Additional features
Dining Room
Fireplace
Storage Space
Garage Location
Rear
Garage Options
Attached
Rear-entry
Foundation Options
Slab
Lot Options
Suited for narrow lot

Hide Plan Features
Details:
View All Plan Details
2,159 Ft
2
Total Structure:
1,567 Ft
2
Total Heated:
2
Bedrooms:
2
Bathrooms:
2
Garage:
1
Stories:
28' 0"
Width:
94' 0"
Depth:
20' 0"
Height:
9' 0"
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
484 Ft
2
Garage:
70 Ft
2
Storage:
38 Ft
2
Porch:
Exterior Styles
Contemporary
Collections
Affordable
Builders
Old House Classics
Open Floor Plan
PDFs Fast!

Hide Plan Details
Best Price Guarantee

If you find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% Satisfaction Guarantee

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
