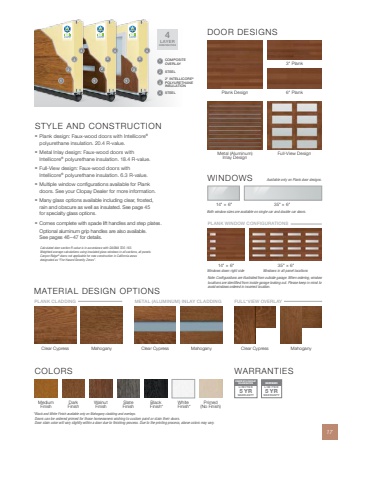

16Canyon Ridge® Modern Plank Design; Shown in Dark Finish with Mahogany Cladding and 35\ × 6\ Windows Down Right Side (from inside garage looking out)faux wood.REAL MODERN.CANYON RIDGE®modernCanyon Ridge® Modern faux-wood garage doors are constructed from a durable, low-maintenance, composite material that won’t rot, warp or crack. As versatile and realistic-looking as natural wood but requiring far less upkeep, the Modern garage door designs feature key elements of contemporary architecture: clean, horizontal lines with mid-centuryappeal, sleek window styles and aluminum accents. These faux-wood doors are a perfect complement to other natural materials and textures on your home’s exterior. Color Blast® finish offers more than 1,500 Sherwin-Williams®color options to complement your home. Clopay’s durable two-part paint system has been thoroughly tested and isbacked by a five-year warranty.CUSTOM PAINT OPTION17Plank Design 6\PLANK CLADDINGPLANK WINDOW CONFIGURATIONSMETAL (ALUMINUM) INLAY CLADDING FULL-VIEW OVERLAYWINDOWS14\35\COLORSWalnut FinishMedium FinishSlate FinishBlack Finish*Dark FinishWhite Finish*Primed(No Finish) *Black and White Finish available only on Mahogany cladding and overlays.Doors can be ordered primed for those homeowners wishing to custom paint or stain their doors. Door stain color will vary slightly within a door due to finishing process. Due to the printing process, above colors may vary.WARRANTIESWARRANTY5YRLIMITEDCOMPOSITE OVERLAY DELAMINATIONWARRANTY5YRLIMITEDHARDWAREMATERIAL DESIGN OPTIONSClear Cypress Mahogany Clear Cypress Mahogany Clear Cypress MahoganySTYLE AND CONSTRUCTION■ Plank design: Faux-wood doors with Intellicore®polyurethane insulation. 20.4 R-value.■ Metal Inlay design: Faux-wood doors withIntellicore® polyurethane insulation. 18.4 R-value.■ Full-View design: Faux-wood doors withIntellicore® polyurethane insulation. 6.3 R-value.■ Multiple window configurations available for Plankdoors. See your Clopay Dealer for more information.■ Many glass options available including clear, frosted,rain and obscure as well as insulated. See page 45for specialty glass options.■ Comes complete with spade lift handles and step plates.Optional aluminum grip handles are also available.See pages 46–47 for details.Calculated door section R-value is in accordance with DASMA TDS-163.Weighted average calculations using insulated glass windows in all sections, all panels.Canyon Ridge® doors not applicable for new construction in California areas designated as “Fire Hazard Severity Zones”.Available only on Plank door designs.14\Windows down right side35\Windows in all panel locations4LAYERCONSTRUCTIONDOOR DESIGNSMetal (Aluminum) Inlay DesignFull-View Design3\Both window sizes are available on single car and double car doors.Note: Configurations are illustrated from outside garage. When ordering, window locations are identified from inside garage looking out. Please keep in mind to avoid windows ordered in incorrect location.2\POLYURETHANE INSULATION32 STEEL4 STEELCOMPOSITE OVERLAY 14 4 43 3 31 1 12 2 2
