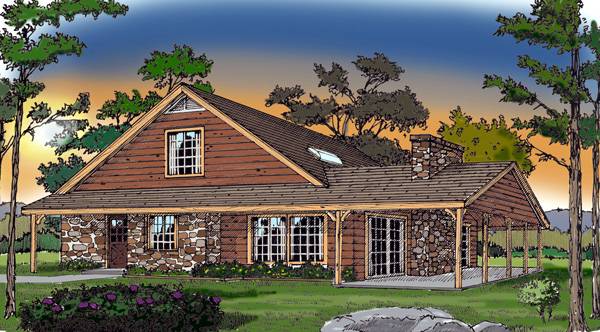

WOODLAKE House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

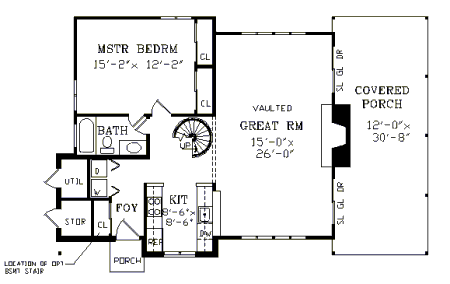

First Floor Plan

First Floor Plan image of WOODLAKE House Plan
All images copyrighted by designer.

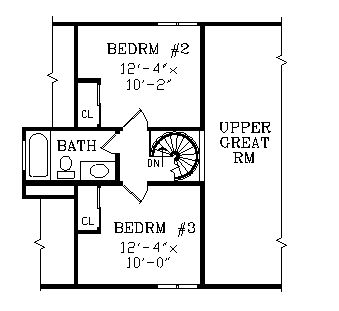

Second Floor Plan

Second Floor Plan image of WOODLAKE House Plan
All images copyrighted by designer.





Plan: THD-JAA-3768
Heated Area: 1315 Sq. Ft.
First Floor: 970 Sq. Ft.
Second Floor: 345 Sq. Ft.
Width: 47 Ft. 6 In.    Depth: 31 Ft.
Bedrooms: 3           Bath: 2
Styles: Modern, Cottage
Foundation: Basement, Crawl Space, Slab Foundation
Designer Notes:
Learn more about the amenities and key features of WOODLAKE House Plan.

Available Packages
 PDF BID SET  $525.00
 Four Set Package  $605.00
 Eight Set Package  $685.00
 PDF Construction Set - Single Use  $785.00
 Reproducible Vellum Set  $810.00
Foundation Options
 Crawl Space  $0.00
 Slab Foundation  $0.00
 Basement  $100.00
Plan Options
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:47' 6"
Depth:31' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Vacation
Modern
Mountain
Cottage
Beach
Log
  FACADE
Owner's Choice
OwnersChoice
OwnersChoice
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:970 Sq. Ft.
Upper Level: 345 Sq. Ft.
Total: 1315 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Porch:368 Sq. Ft.
  GARAGE
Garage Size:
  FOUNDATION
Basement
Crawl Space
Slab Foundation
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8'-1"
Second Floor Ceiling:8'-1"
Maximum House Height:22' 6"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/ 12
Dormer:3-1/2: 12
  ROOF LOAD
Live:30
Dead:10
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
Fireplace
Front Porch
Great Room
Master Bdrm Main Floor
  KEY FEATURES
None
Rear Porch
Vaulted Ceilings
