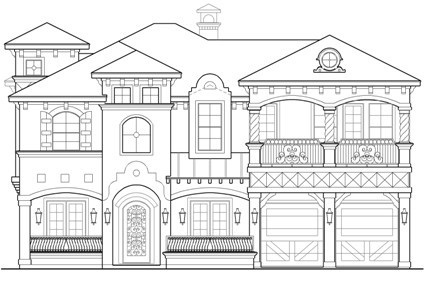

  2. Front Elevation

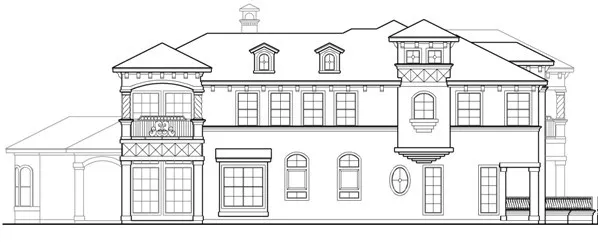

  3. Left Elevation

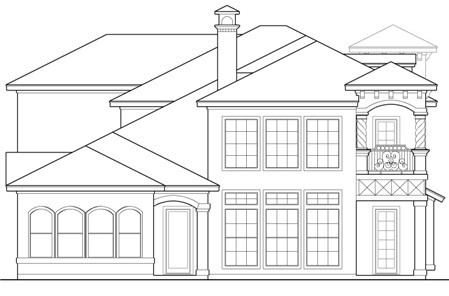

  4. Rear Elevation

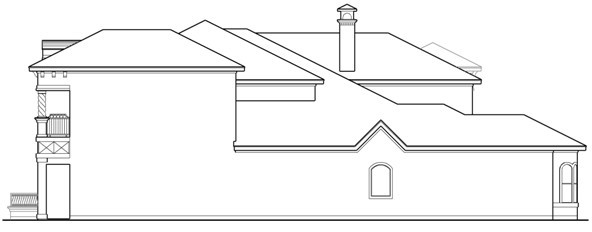

  5. Right Elevation

  6. First Floor

  7. Second Floor

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Questions & Answers
Have questions about this plan? Click here for help!

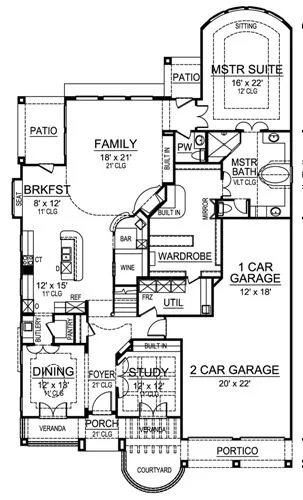

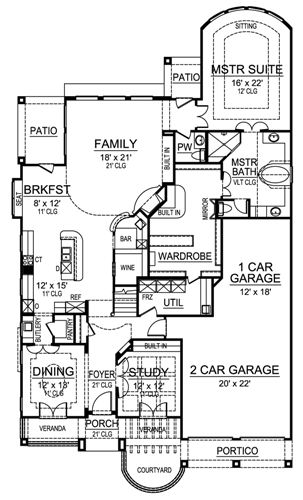

First Floor

First Floor image of WESTLAKE
All images copyrighted by designer.

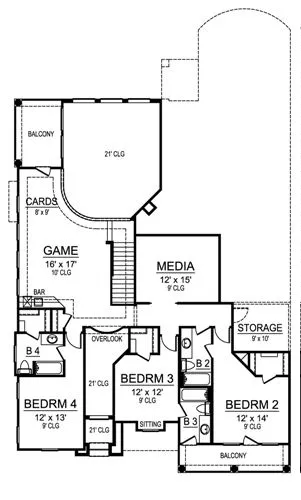

Second Floor

Second Floor image of WESTLAKE
All images copyrighted by designer.


Plan #4533: WESTLAKE

Heated Area: 3,995 Sq. Ft.
First Floor: 2,433 Sq. Ft.
Second Floor: 1,562 Sq. Ft.
Width: 50 Ft.    Depth: 84 Ft.
Bedrooms: 4           Bath: 4.5
Garage: 3
Styles: Mediterranean
Foundation: Crawl Space, Slab
Designer Notes:
Inspired by Tuscany, this home design can become your villa. When you pull up to this home, your eyes are immediately drawn to the balconies, courtyard, verandas, and the portico next to the one and two-car garages.
Available Packages
 One Study Set  $830.00
 Plan PDF Package  $1,250.00
 Five Sets  $1,450.00
 CAD File  $1,875.00
Foundation Options
 Slab  $0.00
 Crawl Space  $250.00
Plan Options
 Additional Sets   $100.00
 Artist Rendering   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:50' 0"
Depth:84' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Mediterranean
Tuscan
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:4
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:2,433 Sq. Ft.
Upper Level: 1,562 Sq. Ft.
Total: 3,995 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:699 Sq. Ft.
Storage:91 Sq. Ft.
Porch:55 Sq. Ft.
Deck:207 Sq. Ft.
Patio:155 Sq. Ft.
  GARAGE
Garage Location:Front
Garage Size:3
  FOUNDATION
Crawl Space
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:11
Second Floor Ceiling:9
Maximum House Height:31' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:6
  INSULATION (R)
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0
  KEY FEATURES
2 Story Volume
Arches
Attached
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Home Office
Kitchen Island
Laundry 1st Fl
  KEY FEATURES
Library/Media Rm
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Sitting Area
Slab
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Wine Cellar
