  1. Front Rendering

    Front Rendering

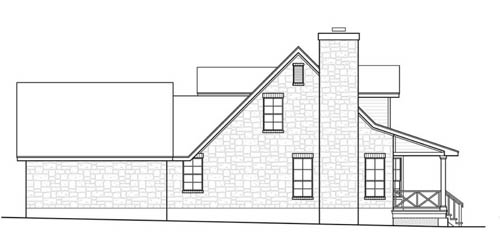

  2. West Elevation

    West Elevation

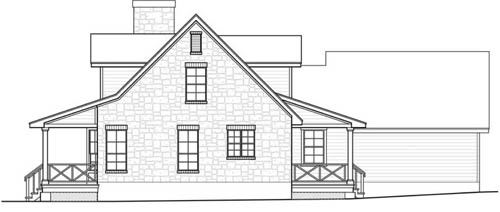

  3. East Elevation

    East Elevation

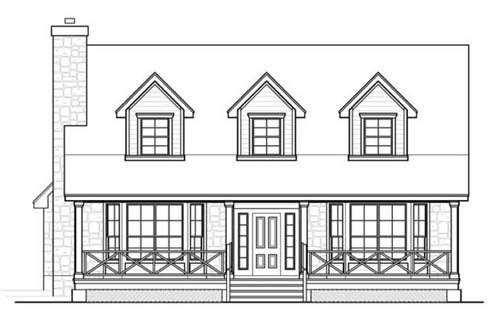

  4. South Elevation

    South Elevation

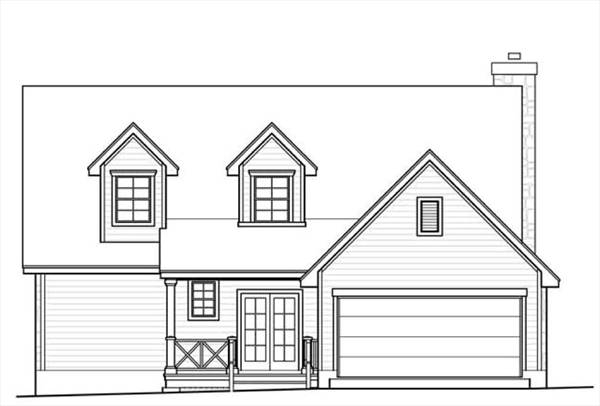

  5. North Elevation

    North Elevation

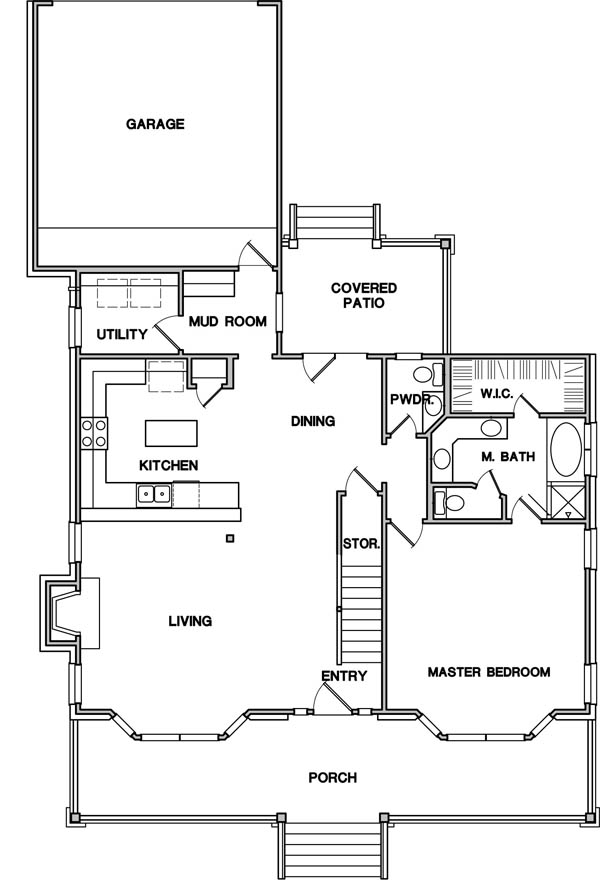

  6. First Floor Plan

    First Floor Plan
  7. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #3083: The Woodville

ENERGY STAR Heated Area: 1,967 Sq. Ft.
First Floor: 1,263 Sq. Ft.
Second Floor: 704 Sq. Ft.
Width: 44 Ft. 3 In.    Depth: 64 Ft.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Country, Farm House
Foundation: Basement, Crawl Space, Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 FiveSets  $695.00
 Eight Sets  $795.00
 Vellum set & 1 Bond set  $995.00
 PDF Plan Package PDFs Now!   $995.00
 Cad File  $1,895.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab PDFs Now! available   $0.00
 Basement PDFs Now! available   $150.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Full Reverse Sets   $170.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
44' 3"
Width:
64' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Country
Farm House
FACADE
Siding/Stone
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,263 Sq. Ft.
Main Level:
704 Sq. Ft.
Upper Level:
1,967 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
394 Sq. Ft.
Garage:
312 Sq. Ft.
Porch:
122 Sq. Ft.
Deck:
GARAGE
Rear
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9/slope
First Floor Ceiling:
8
Second Floor Ceiling:
24' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12:12
Primary:
4:12
Secondary:
10:12
Gable:
4:12
Porch:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
KEY FEATURES
2 Story Volume
Attached
Basement
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Fireplace
Front Porch
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
KEY FEATURES
Mud Room
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rear-entry
Separate Tub and Shower
Sitting Area
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
