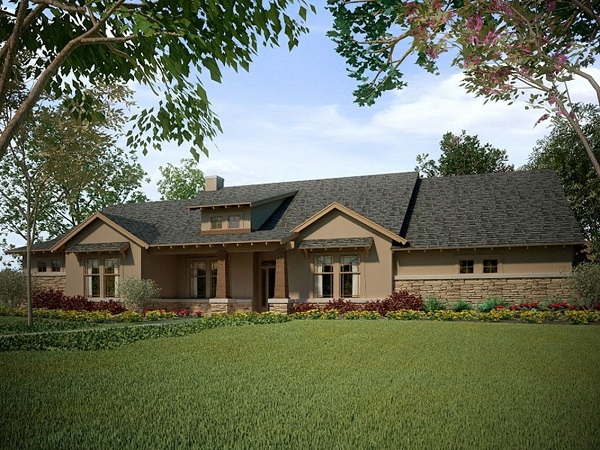

  1. Front Rendering

  2. 1st Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This unique Craftsman style home features a large remote luxury master suite and three bedrooms with a play area on the other side of the house. A great room with corner fireplace is adjacent to an island kitchen with a wide serving counter.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

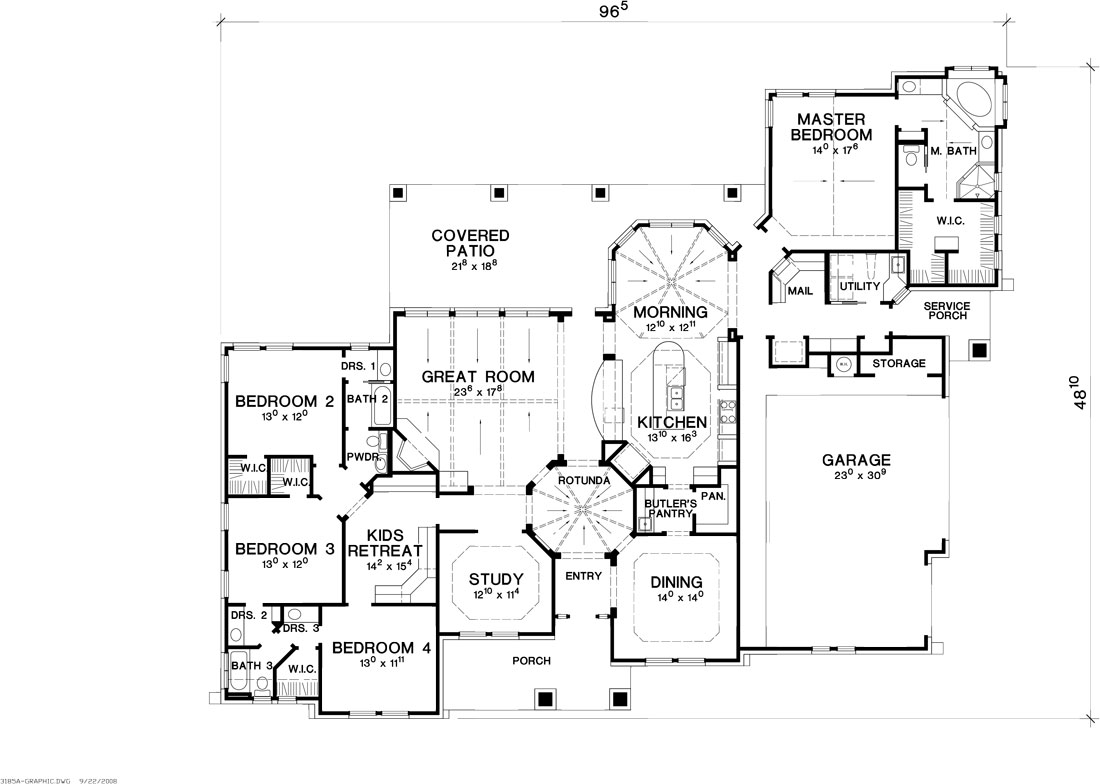

1st Floor Plan

1st Floor Plan image of The Monterey
All images copyrighted by designer.


Plan #3749: The Monterey

Heated Area: 3,197 Sq. Ft.
First Floor: 3,197 Sq. Ft.
Lower Floor: 3,197 Sq. Ft.
Width: 88 Ft. 9 In.    Depth: 73 Ft. 7 In.
Bedrooms: 4           Bath: 3.5
Garage: 0
Styles: Cottage, Craftsman
Foundation: Basement, Crawl Space, Slab
Available Packages
 FiveSets  $1,395.00
 Eight Sets  $1,545.00
 Vellum set & 1 Bond set  $1,895.00
 PDF Plan Package  $1,895.00
 Cad File  $2,995.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
88' 9"
Width:
73' 7"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Cottage
Craftsman
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
3,197 Sq. Ft.
Main Level:
3,197 Sq. Ft.
Lower Level:
3,197 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
775 Sq. Ft.
Garage:
672 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
0
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
24' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
7/12
Primary:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
26
Ceiling:
0
Floor:
KEY FEATURES
Attached
KEY FEATURES
Front Porch
