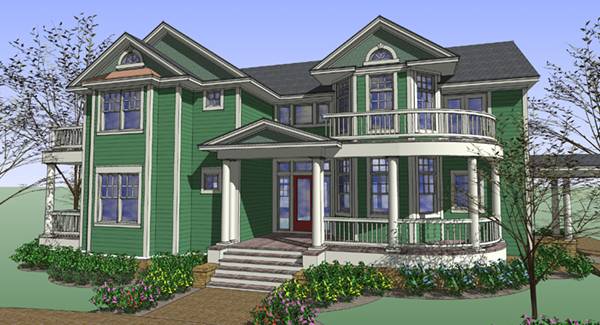

  1. Rendering - Front

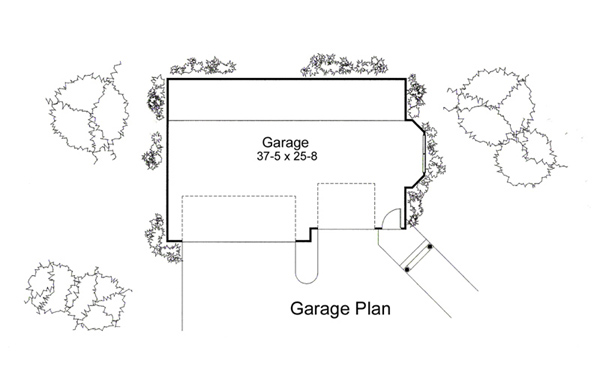

  2. Detached Garage

  3. First Floor Plan

  4. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This plan is full of wonderful details, the curved front porch is just one. The huge Kitchen features plenty of storage and a beamed ceiling. The Utility room is complete with all of the necessities. The Master Suite is grand and boasts a private patio for romantic sunsets.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

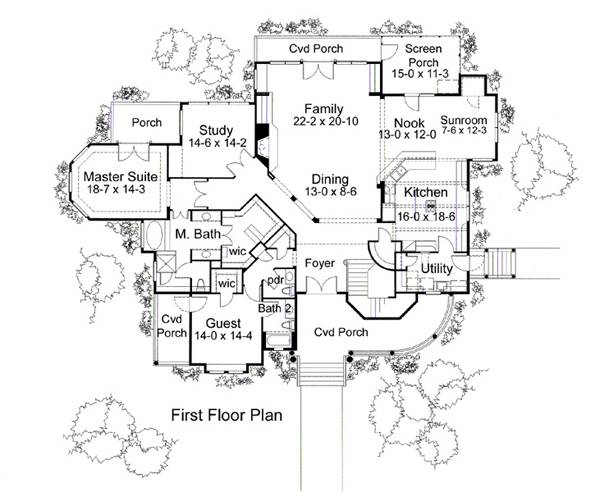

First Floor Plan

First Floor Plan image of The Meridian
All images copyrighted by designer.

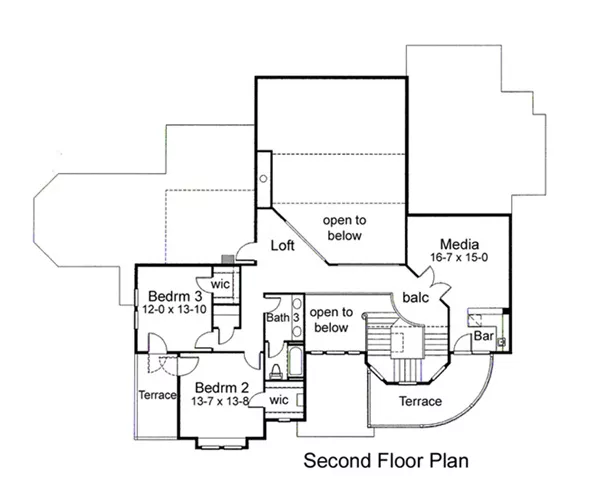

Second Floor Plan

Second Floor Plan image of The Meridian
All images copyrighted by designer.


Plan #5819: The Meridian

Heated Area: 4,345 Sq. Ft.
First Floor: 3,784 Sq. Ft.
Second Floor: 1,161 Sq. Ft.
Width: 83 Ft. 7 In.    Depth: 66 Ft.
Bedrooms: 4           Bath: 3.5
Garage: 0
Styles: Country, Farm House
Foundation: Basement, Crawl Space, Slab
Available Packages
 PDF Bid Set  $1,250.00
 Five Sets  $1,500.00
 Eight Sets  $1,750.00
 Vellums  $2,500.00
 PDF  $2,500.00
 AutoCad Files (DWG)  $3,000.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
 Basement  $200.00
Plan Options
 Additional Sets   $75.00
 Mirror Reverse   $50.00
 Full Reverse   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
83' 7"
Width:
66' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Country
Farm House
Victorian
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
3,784 Sq. Ft.
Main Level:
1,161 Sq. Ft.
Upper Level:
4,345 Sq. Ft.
Total:
GARAGE
0
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF LOAD
20
Live:
15
Dead:
20
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
13' 7" X 13' 8"
Bedroom
12' 0" X 13' 10"
Bedroom
13' 0" X 8' 6"
Dining
22' 2" X 20' 10"
Family
14' 0" X 14' 4"
Guest
16' 0" X 18' 6"
Kitchen
18' 7" X 14' 3"
Master Suite
16' 7" X 15' 0"
Media
13' 0" X 12' 0"
Nook
15' 0" X 11' 3"
Screen Porch
14' 6" X 14' 2"
Study
7' 6" X 12' 3"
Sunroom
KEY FEATURES
Elegant Curved Front Porch
Front Porch
None
Open Living/Kitchen/Nook areas
Spacious Master Suite
Sunroom off of the Kitchen
Very Large Family
