  1. FRONT RENDERING

    FRONT RENDERING

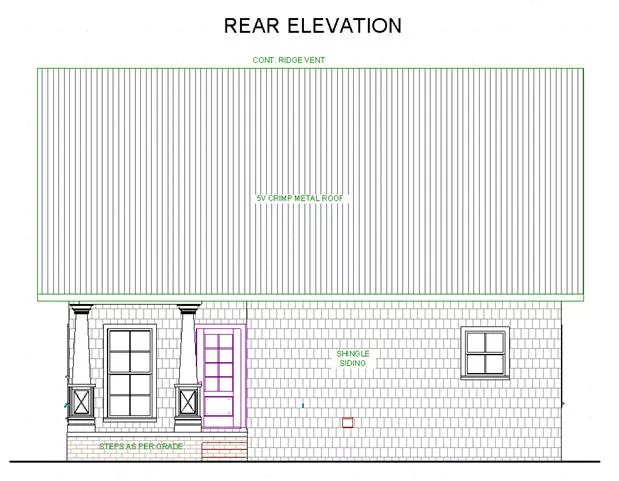

  2. Rear Elevation

    Rear Elevation
  3. Color Picture

    Color Picture

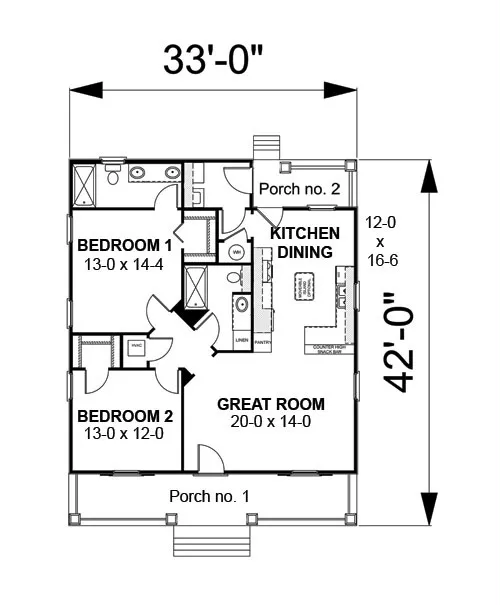

  4. Floor Plan

    Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Are you looking to get the most for your money? Well, look no further. Enter this spacious Great Room with three full-length windows to ensure maximum natural lighting. The Kitchen/Dining is fully loaded with a movable Island, snack bar, pantry, and lots of cabinets.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate Presidents Day: Save Up to $100 On Your Plan Package! See details

Floor Plan

Floor Plan
All images copyrighted by designer.


Plan #1880: The McHenry

Heated Area: 1,122 Sq. Ft.
First Floor: 1,122 Sq. Ft.
Width: 33 Ft.    Depth: 42 Ft.
Bedrooms: 2           Bath: 2
Styles: Cottage, Country
Foundation: Crawl Space, Slab
Available Packages
 Five Sets  $630.00
 PDF - File Package - One build only  $875.00
 Vellums  $875.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 RRR - Right Reading Reverse   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
33' 0"
Width:
42' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Cottage
Country
Craftsman
Vacation
Mountain
North Carolina
NUMBERS OF ROOMS
2
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,122 Sq. Ft.
Main Level:
1,122 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
248 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
FOUNDATION
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9/12
Primary:
4/12
Secondary:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
13' 0" X 12' 0"
BEDROOM #2
33' 0" X 5' 6"
FRONT PORCH
20' 0" X 14' 0"
GREAT ROOM
12' 0" X 16' 6"
KITCHEN/DINING
8' 0" X 5' 8"
LAUNDRY
KEY FEATURES
Columns
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Double Vanity Sink
Front Porch
Great Room
Kitchen Island
Master Suite
Moveable Island
None
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Slab
Walk-in Closet
