  1. Front Elevation

    Front Elevation

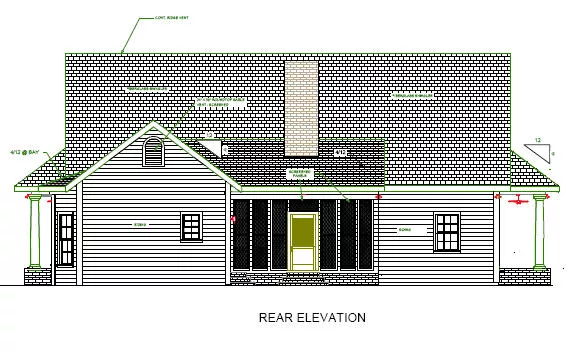

  2. Rear Elevation

    Rear Elevation

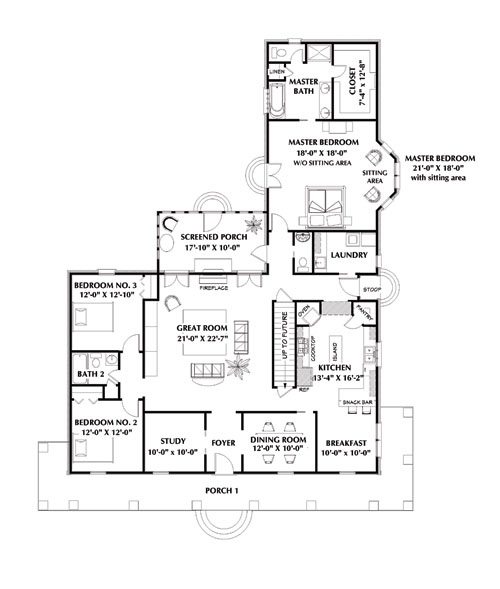

  3. Floor Plan

    Floor Plan

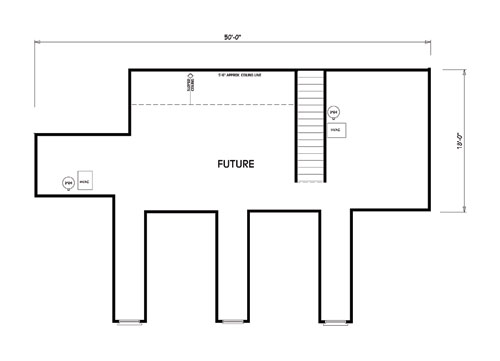

  4. Future Area

    Future Area
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
You get a sense of welcome as you approach the covered porch of this southern style home. Enter the Foyer and see a stunning Dining Room accented with an arched opening, a pocket door from the Kitchen makes it convenient for the host.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate Presidents Day: Save Up to $100 On Your Plan Package! See details

Floor Plan

Floor Plan
All images copyrighted by designer.

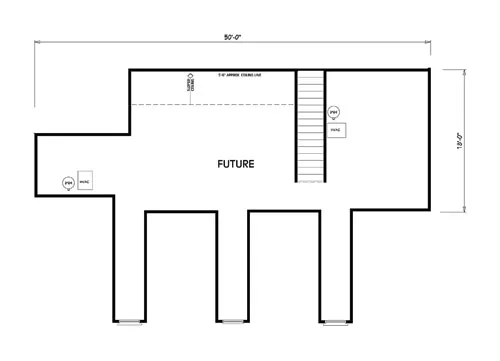

Future Area

Future Area
All images copyrighted by designer.


Plan #8695: The Mayfair

Heated Area: 2,337 Sq. Ft.
First Floor: 2,337 Sq. Ft.
Bonus: 847 Sq. Ft.
Width: 62 Ft.    Depth: 76 Ft.
Bedrooms: 3           Bath: 2.5
Styles: Country, Southern
Foundation: Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Five Sets  $740.00
 PDF - File Package - One build only PDFs Now!   $975.00
 Vellums  $975.00
Foundation Options
 Slab PDFs Now! available   $0.00
Plan Options
 ENERGY STAR® Approved  $175.00
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 RRR - Right Reading Reverse   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
62' 0"
Width:
76' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Vacation
Country
Southern
Mountain
Builders
Texas
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
2,337 Sq. Ft.
Main Level:
2,337 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
670 Sq. Ft.
Porch:
847 Sq. Ft.
Bonus Room:
GARAGE
0
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
9' 0"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9/12
Primary:
4/12
Secondary:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
8' 0" X 5' 6"
Bathroom #2
12' 0" X 12' 0"
Bedroom #2
12' 0" X 12' 0"
Bedroom #3
10' 0" X 10' 0"
Breakfast
12' 0" X 10' 0"
Dining
21' 0" X 22' 7"
Great Room
13' 4" X 16' 2"
Kitchen
10' 8" X 12' 8"
Master Bathroom
18' 0" X 18' 0"
Master Bedroom
KEY FEATURES
Built In Microwave
Built-in entertainment center cabinets
Country Kitchen
Covered Front Porch
Covered Porch
Dining Room
Double Vanity Sink
Fireplace
Formal Dining Room
Foyer
Front Porch
Great Room
Home Office
Kitchen Island
Large Kitchen
Large Master Suite on the first floor
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
None
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Raised Snack Bar
Rear Porch
Screened Porch/Sunroom
Separate Tub and Shower
Sitting Area
Slab
Split Bedrooms
Split Floor plan layout
Storage Space
Unfinished Space
Walk-in Closet
Walk-in Pantry
Wraparound Porch
