  1. Front Elevation

    Front Elevation
  2. Rear Elevation

    Rear Elevation
  3. Floorplan

    Floorplan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The Manchester elicits the charming appeal of a quaint cottage that you might find in an old village in the English countryside! Very unique design which maximizes every inch of its useable space. Three spacious bedrooms and two-and-a-half baths provide plenty of room for that growing family.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

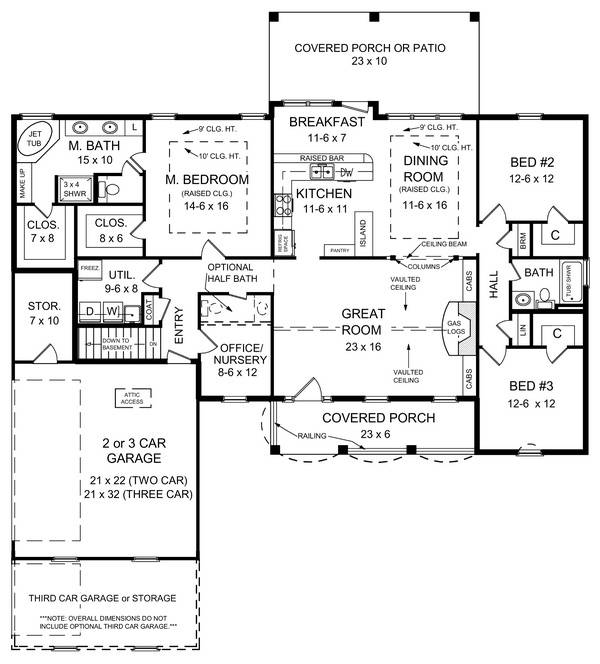

Floorplan

Floorplan
All images copyrighted by designer.


Plan #5691: The Manchester

Heated Area: 2,002 Sq. Ft.
First Floor: 2,002 Sq. Ft.
Width: 64 Ft. 6 In.    Depth: 61 Ft. 4 In.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Cottage, Country
Foundation: Basement, Crawl Space, Slab
Available Packages
 One Set  $900.00
 Five Sets  $960.00
 PDF File Package  $1,085.00
 Vellums  $1,155.00
 CAD files  $1,655.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Materials List   $130.00
 Additional Sets   $60.00
 Right Reading Reverse   $150.00
 Mirror Reverse   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
64' 6"
Width:
61' 4"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Country
Craftsman
European
Builders
Pet Lovers
Texas
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
2,002 Sq. Ft.
Main Level:
2,002 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
460 Sq. Ft.
Garage:
71 Sq. Ft.
Storage:
389 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
22' 9"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
8:12
Primary:
10:12
Dormer:
ROOF LOAD
30
Live:
10
Dead:
INSULATION (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
KEY FEATURES
Attached
Basement
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Exercise Room
Fireplace
Front Porch
Great Room
His and Hers Master Closets
Home Office
KEY FEATURES
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Nursery Room
Open Floor Plan
Oversized
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Slab
Split Bedrooms
Storage Space
Walk-in Closet
Workshop
