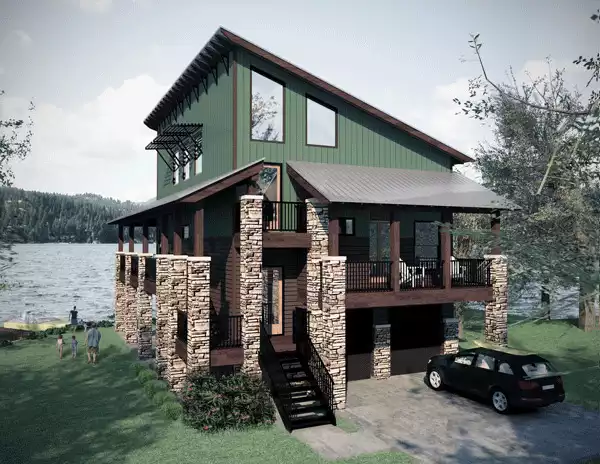

  1. Front Exterior

    Front Exterior

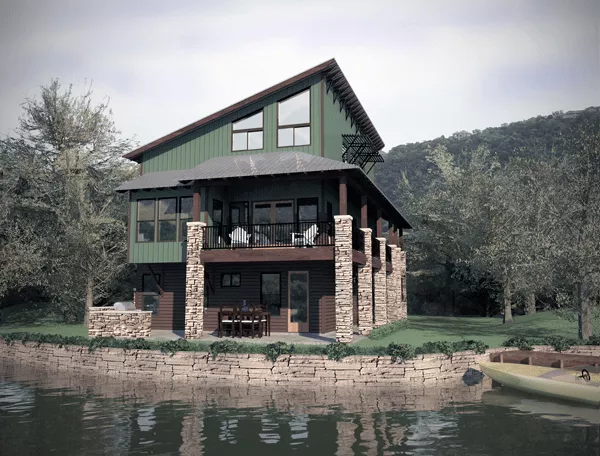

  2. Rear Rendering

    Rear Rendering

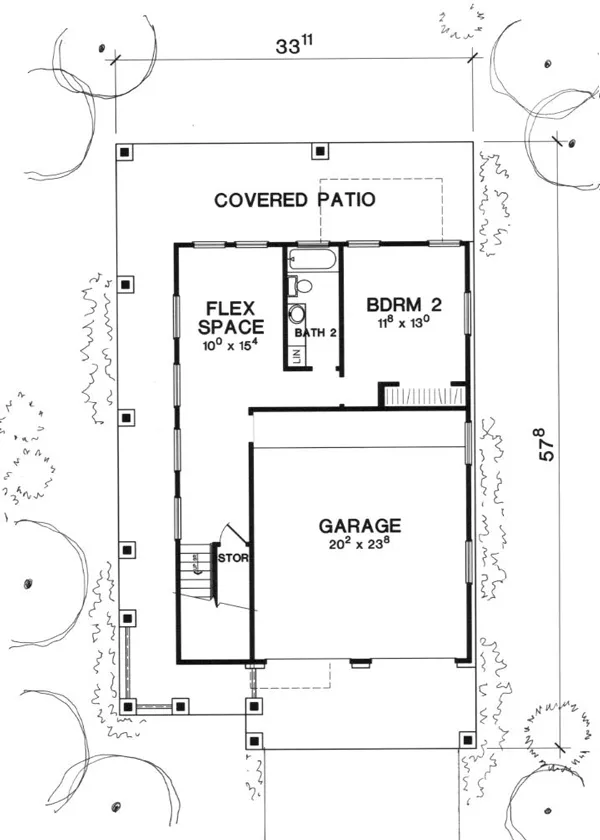

  3. First Floor Plan

    First Floor Plan

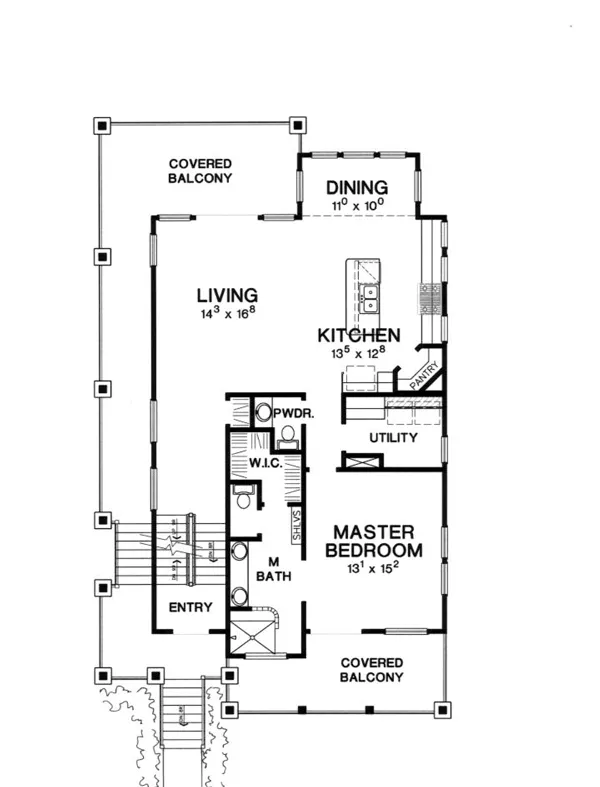

  4. Second Floor Plan

    Second Floor Plan

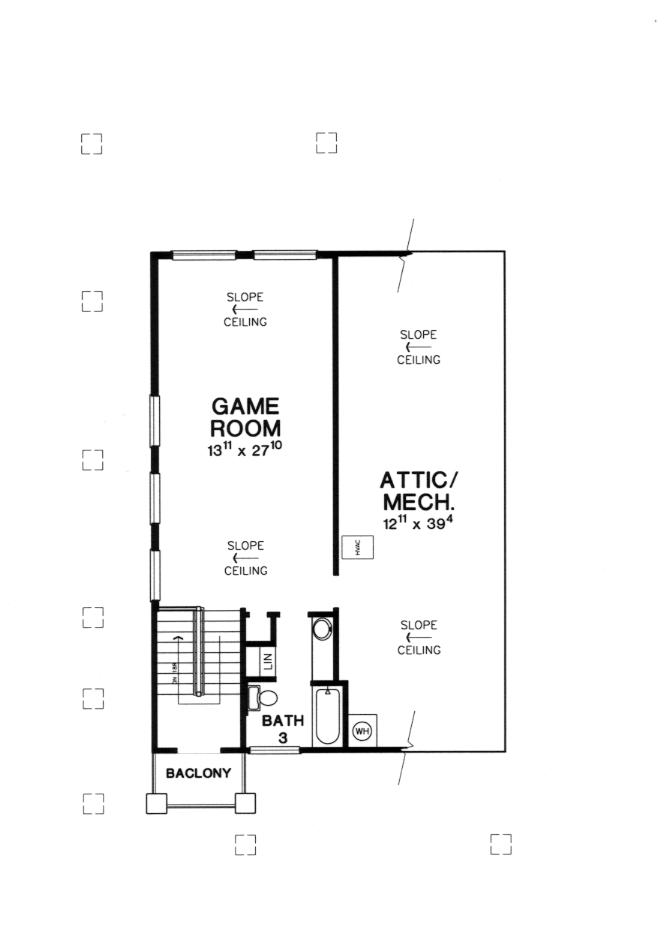

  5. Third Floor Plan

    Third Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The Lake Austins name is perfect, because it is the perfect plan for a lakeside, coastal or Mountain View lot. This house design accommodates a view and provides open space for fun while having a narrow footprint to fit many of these prime lots.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan
All images copyrighted by designer.

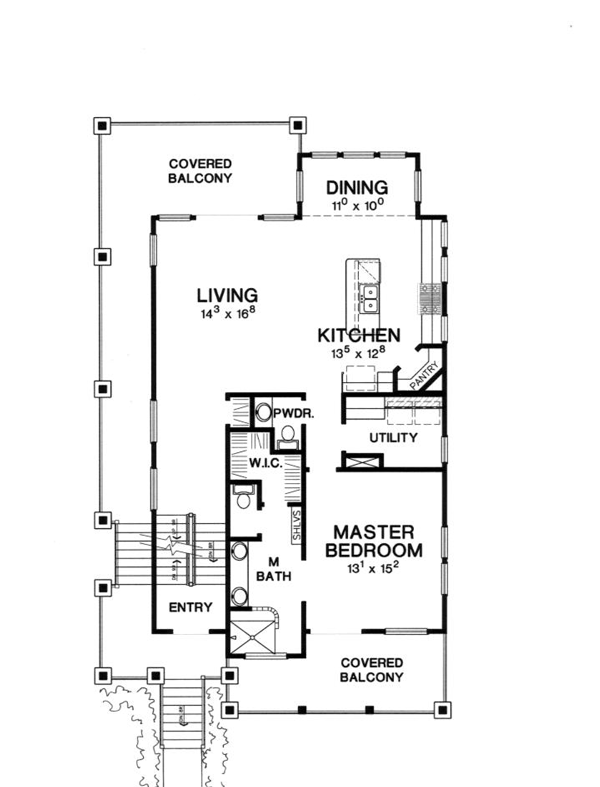

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.

Third Floor Plan

Third Floor Plan
All images copyrighted by designer.


Plan #1861: The Lake Austin

Heated Area: 2,346 Sq. Ft.
First Floor: 624 Sq. Ft.
Second Floor: 1,128 Sq. Ft.
Third Floor: 594 Sq. Ft.
Width: 33 Ft. 11 In.    Depth: 57 Ft. 8 In.
Bedrooms: 2           Bath: 3.5
Garage: 2
Styles: Beach, Cape Cod
Foundation: Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 FiveSets  $995.00
 Eight Sets  $1,095.00
 Vellum set & 1 Bond set  $1,345.00
 PDF Plan Package PDFs Now!   $1,345.00
 Cad File  $2,345.00
Foundation Options
 Slab PDFs Now! available   $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $50.00
 Mirror Reverse Sets   $0.00
 Full Reverse Sets   $280.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
3
Number of Stories:
33' 11"
Width:
57' 8"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Bungalow
Cottage
Craftsman
Modern
Southern
Southwest
Spanish
FACADE
Siding
Siding/Stone
Stone
NUMBERS OF ROOMS
2
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
624 Sq. Ft.
Main Level:
1,128 Sq. Ft.
Upper Level:
594 Sq. Ft.
Third Level:
2,346 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
517 Sq. Ft.
Garage:
32 Sq. Ft.
Porch:
528 Sq. Ft.
Deck:
415 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
10
Second Floor Ceiling:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
4:12
Primary:
6:12
Secondary:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Attic/Mech.
Bonus Room
Covered Front Porch
Covered Rear Porch
Covered wrap-around Balcony
Covered wrap-around Patio
Deck
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Flex Space
Front Porch
Guest Suite
Home Office
Kitchen Island
KEY FEATURES
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Master Bdrm Main Floor
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rec Room
Slab
Split Bedrooms
Storage Space
Suited for narrow lot
Suited for view lot
Walk-in Closet
Walk-in Pantry
Wraparound Porch
