  1. Color Rendering

    Color Rendering

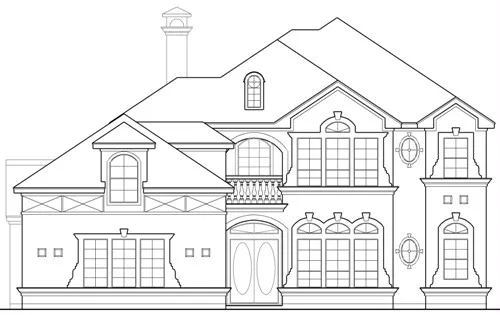

  2. Front Elevation

    Front Elevation

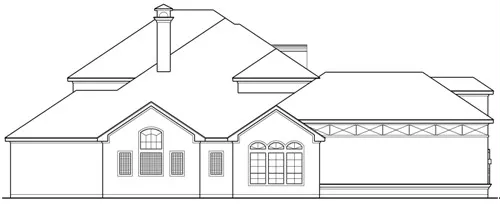

  3. Left Elevation

    Left Elevation

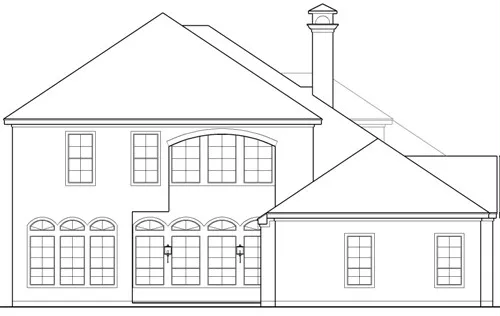

  4. Rear Elevation

    Rear Elevation

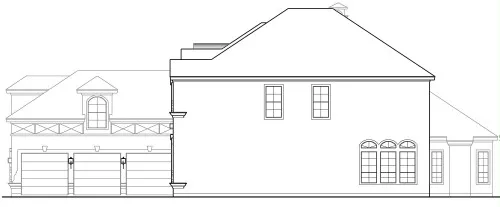

  5. Right Elevation

    Right Elevation

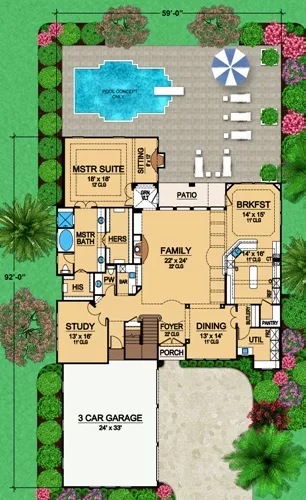

  6. First Floor

    First Floor

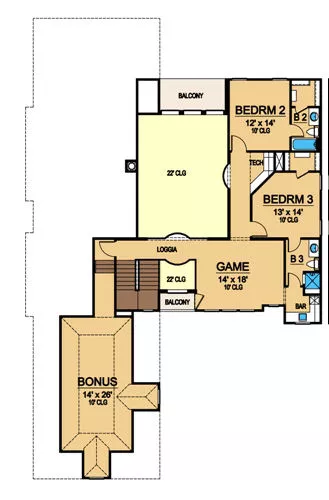

  7. Second Floor

    Second Floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Feel right at home as you walk into this stunning luxury house plan. The two-story foyer is flanked by the quiet study and formal dining room with its large decorative pillars that define its perimeters. The dining room provides direct access to the butlery, utility room, and kitchen for ease in serving.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

First Floor

First Floor
All images copyrighted by designer.

Second Floor

Second Floor
All images copyrighted by designer.


Plan #5121: THE DUKE

Heated Area: 3,426 Sq. Ft.
First Floor: 2,890 Sq. Ft.
Second Floor: 982 Sq. Ft.
Bonus: 499 Sq. Ft.
Width: 59 Ft.    Depth: 92 Ft.
Bedrooms: 3           Bath: 3
Garage: 3
Foundation: Crawl Space, Slab
Available Packages
 One Study Set  $780.00
 Plan PDF Package  $1,160.00
 Five Sets  $1,360.00
 CAD File  $1,745.00
Foundation Options
 Slab  $0.00
 Crawl Space  $250.00
Plan Options
 Reverse/Mirror Set   $200.00
 Additional Sets   $100.00
 Artist Rendering   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
59' 0"
Width:
92' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Mediterranean
Tuscan
NUMBERS OF ROOMS
3
Bedrooms:
3
Full Baths:
FINISHED SQUARE FOOTAGE
2,890 Sq. Ft.
Main Level:
982 Sq. Ft.
Upper Level:
3,426 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
839 Sq. Ft.
Garage:
499 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
3
Garage Size:
FOUNDATION
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
11
First Floor Ceiling:
10
Second Floor Ceiling:
36' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
8
Primary:
8
Secondary:
INSULATION (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
KEY FEATURES
2 Story Volume
Arches
Attached
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
His and Hers Master Closets
KEY FEATURES
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Sitting Area
Slab
