The Chesterfield House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

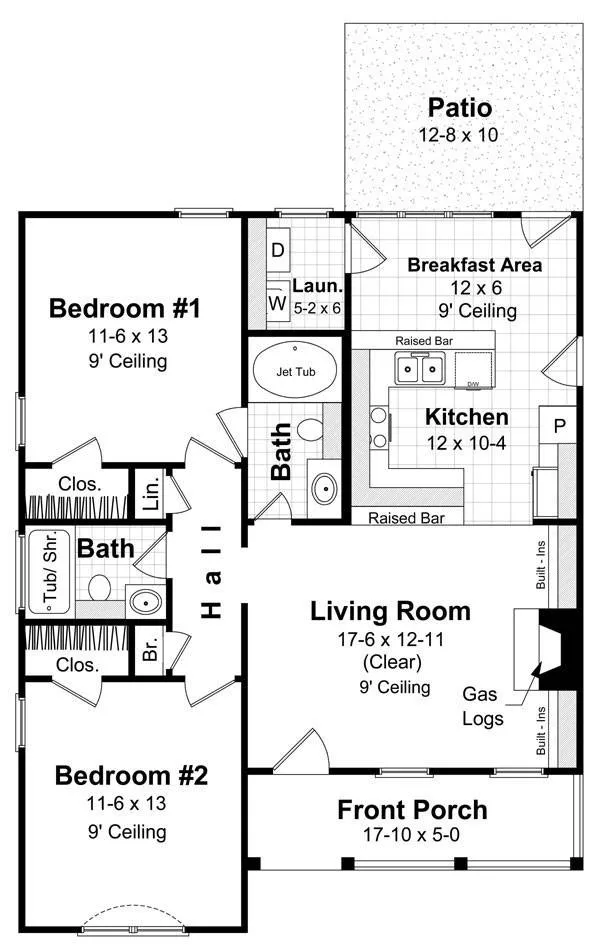

Floorplan

Floorplan image of The Chesterfield House Plan
All images copyrighted by designer.





Plan: THD-IQH-5860
Heated Area: 1000 Sq. Ft.
First Floor: 1000 Sq. Ft.
Width: 30 Ft.    Depth: 38 Ft. 4 In.
Bedrooms: 2           Bath: 2
Styles: Cottage, Country
Foundation: Crawl Space, Slab
Designer Notes:
Learn more about the amenities and key features of The Chesterfield House Plan.

Available Packages
 One Set  $670.00
 Five Sets  $720.00
 PDF File Package  $830.00
 Vellums  $890.00
 CAD files  $1,330.00
Plan Options
 Materials List   $120.00
 Additional Sets   $55.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:30' 0"
Depth:38' 4"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Traditional
Cottage
Country
  NUMBERS OF ROOMS
Bedrooms:2
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:1000 Sq. Ft.
Total: 1000 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:307 Sq. Ft.
Storage:29 Sq. Ft.
Porch:89 Sq. Ft.
  GARAGE
Garage Size:
  FOUNDATION
Crawl Space
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Maximum House Height:18' 2"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:6:12
  ROOF LOAD
Live:30
Dead:10
  INSULATION (R)
Exterior Wall:15
Interior Wall:0
Ceiling:38
Floor:19
  KEY FEATURES
Covered Front Porch
Exercise Room
Fireplace
Front Porch
Great Room
Home Office
  KEY FEATURES
Laundry 1st Fl
Master Bdrm Main Floor
None
Nook / Breakfast Area
Peninsula / Eating Bar
