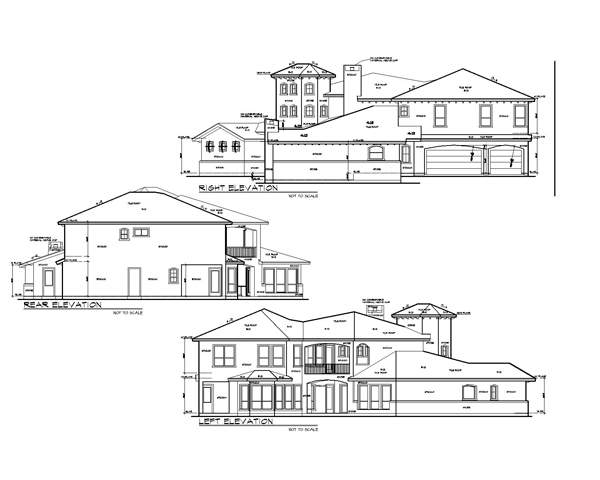

  10. Rear Elevation

    Rear Elevation
  11. Study

    Study
  12. Rear Elevation

    Rear Elevation

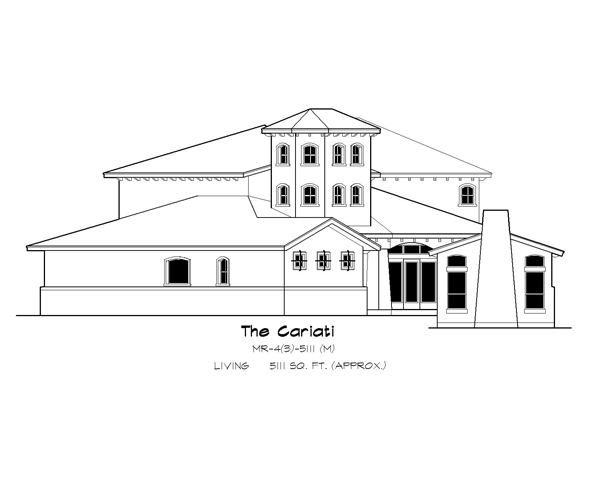

  13. Front Elevation

    Front Elevation

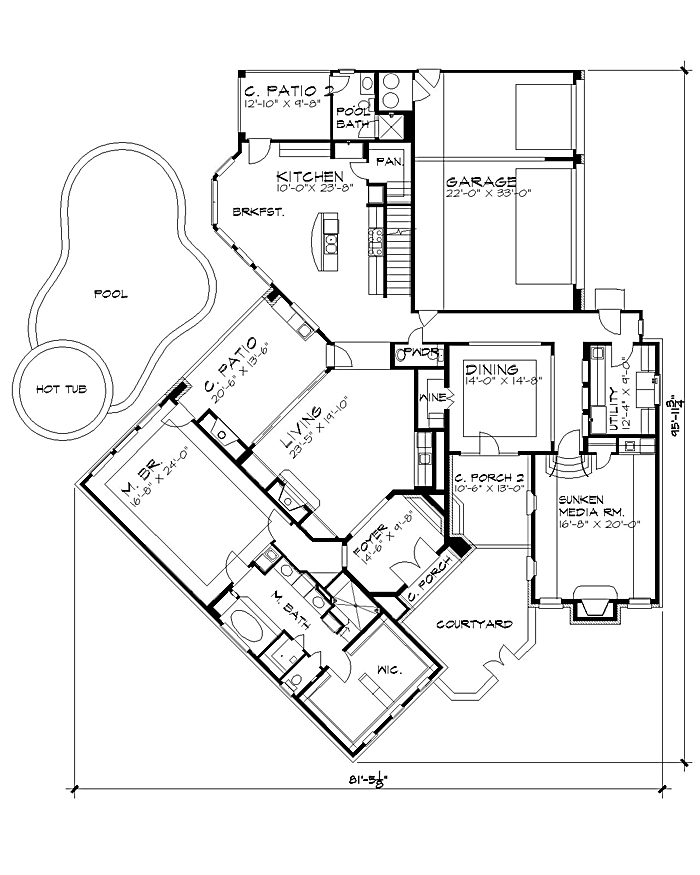

  14. First Floor Plan

    First Floor Plan

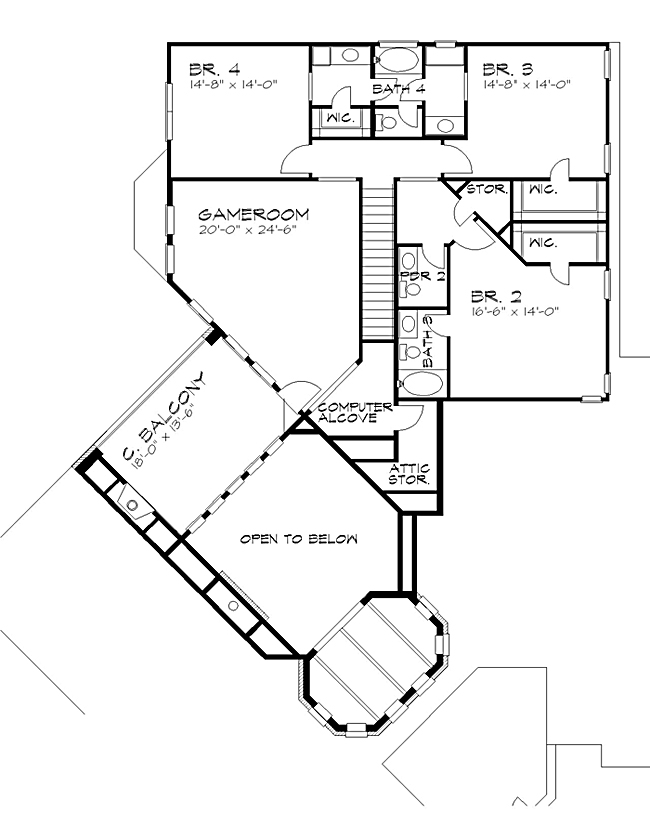

  15. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Situated on a tight cul-de-sac lot, this house has it all! A two-story turret leads you in to the two-story living room. The living room opens to the covered patio and to the pool area. The master suite is off the foyer, and has a sitting area with access the covered patio.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >
© copyright by designer

First Floor Plan:

First Floor Plan
© copyright by designer

Second Floor Plan:

Second Floor Plan


Plan #4262: The Cariati

Heated Area: 5,111 Sq. Ft.
First Floor: 3,456 Sq. Ft.
Second Floor: 1,655 Sq. Ft.
Width: 81 Ft. 6 In.    Depth: 96 Ft.
Bedrooms: 4           Bath: 5.5
Garage: 3
Styles: Mediterranean, Spanish
Foundation: Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF- Bid Set PDFs Now!   $950.00
 Four Sets  $1,050.00
 Eight Sets  $1,150.00
 PDF- Construction Set  $1,300.00
Foundation Options
 Slab PDFs Now! available   $250.00
Plan Options
 Mirror Reverse   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
81' 6"
Width:
96' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Mediterranean
Spanish
Tuscan
NUMBERS OF ROOMS
4
Bedrooms:
5
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
3,456 Sq. Ft.
Main Level:
1,655 Sq. Ft.
Upper Level:
5,111 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
810 Sq. Ft.
Garage:
174 Sq. Ft.
Porch:
397 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
3
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
10
Second Floor Ceiling:
FRAMING INFORMATION
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
ROOF PITCH
5:12
Primary:
4:12
Secondary:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
