  1. Rendering - Front

    Rendering - Front

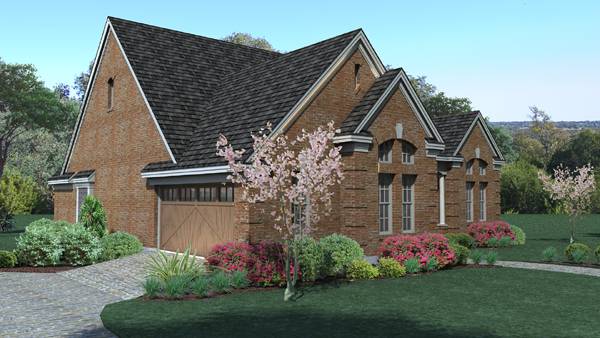

  2. Rendering - Front Right

    Rendering - Front Right

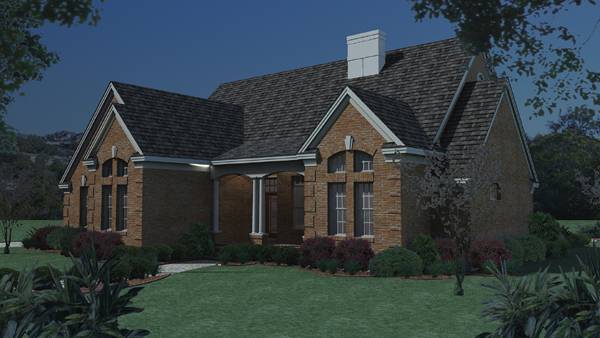

  3. Rendering - Front Left

    Rendering - Front Left

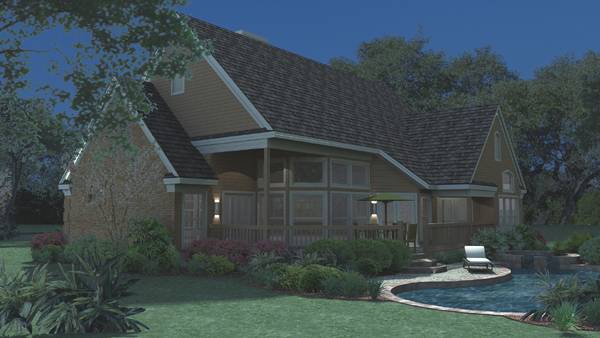

  4. Rendering - Left Rear

    Rendering - Left Rear

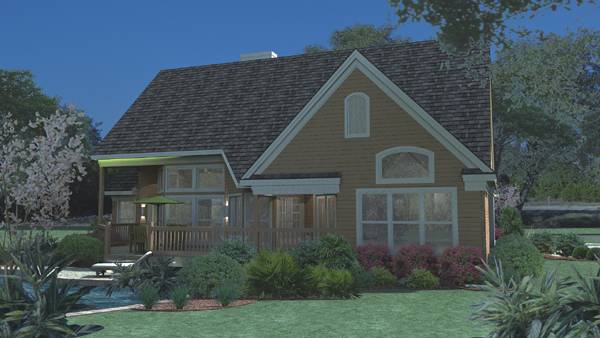

  5. Rendering - Right Rear

    Rendering - Right Rear

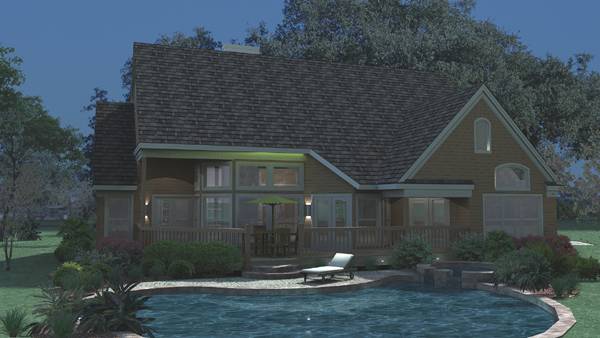

  6. Rendering - Rear

    Rendering - Rear
  7. Rendering - Rear

    Rendering - Rear
  8. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This plan offers many custom features. The spacious Family Room shares a see-thru fireplace with the formal Dining. A columned entrance and low wood- capped walls showcase the Dining Room. The island Kitchen features a large bar top perfect for conversing while cooking.  Read more >
read our customer stories and testimonials
"We made a few changes to the laundry room and the exterior to fit our needs. We love our new house and are very satisfied with The House Designers."
Customer Review:
— Carroll of Portland, TN
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #5771: The Albany

Heated Area: 1,675 Sq. Ft.
First Floor: 1,675 Sq. Ft.
Width: 58 Ft.    Depth: 59 Ft. 6 In.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Colonial
Foundation: Basement, Crawl Space, Slab
Available Packages
 PDF Bid Set  $450.00
 Five Sets  $540.00
 Eight Sets  $630.00
 Vellums  $900.00
 PDF  $900.00
 AutoCad Files (DWG)  $1,080.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 Materials List   $75.00
 Full Reverse   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
58' 0"
Width:
59' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Colonial
North Carolina
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,675 Sq. Ft.
Main Level:
1,675 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
631 Sq. Ft.
Garage:
274 Sq. Ft.
Porch:
217 Sq. Ft.
Deck:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
29' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12:12
Primary:
ROOF LOAD
20
Live:
15
Dead:
20
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
11' 0" X 11' 6"
Bedroom 1
11' 6" X 10' 0"
Bedroom 2
11' 0" X 13' 0"
Dining
18' 0" X 6' 6"
Front Porch
12' 0" X 13' 0"
Kitchen
18' 0" X 17' 8"
Living
19' 4" X 13' 2"
Master Suite
10' 0" X 10' 0"
Nook
KEY FEATURES
12' Ceiling in Living/Dining/Foyer
Attached
Basement
Covered front and rear porches
Crawlspace
Double WIC's in Master Bath
Rear Porch
See-Thru Fireplace
Side-entry
Slab
Walk-in Pantry
Wide Open Living Spaces
