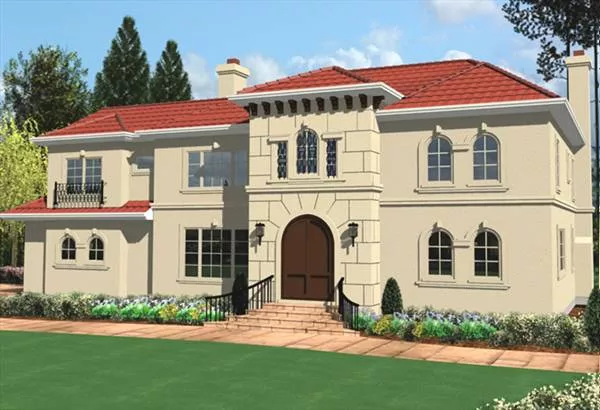

  1. Color rendering

    Color rendering

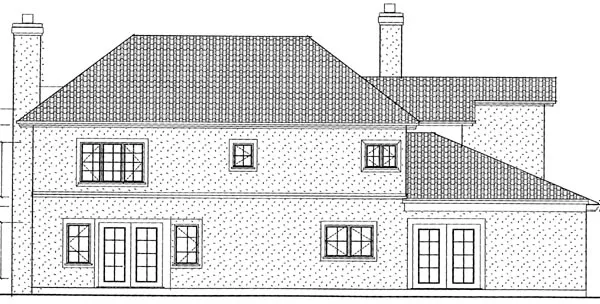

  2. Rear Elevation

    Rear Elevation
  3. Rear Elevation

    Rear Elevation

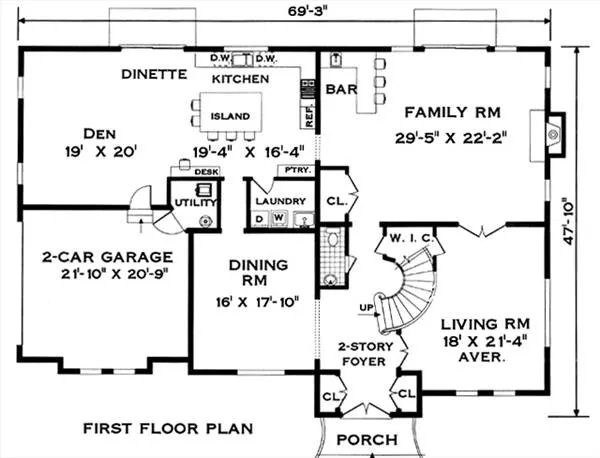

  4. first floor

    first floor
  5. second floor

    second floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The two story foyer is flanked by oversized dining room and comfortable living room.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate Presidents Day: Save Up to $100 On Your Plan Package! See details

first floor

first floor
All images copyrighted by designer.

second floor

second floor
All images copyrighted by designer.


Plan #8303: spanish colonial

Heated Area: 4,708 Sq. Ft.
First Floor: 2,532 Sq. Ft.
Second Floor: 2,176 Sq. Ft.
Width: 69 Ft. 3 In.    Depth: 47 Ft. 10 In.
Bedrooms: 4           Bath: 3.5
Garage: 2
Styles: Colonial, European
Foundation: Basement, Crawl Space, Slab
Available Packages
 One Set  $720.00
 Four Sets  $788.00
 Eight Sets  $872.00
 Vellums  $1,014.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 Materials List   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
69' 3"
Width:
47' 10"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Colonial
European
Spanish
Florida
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
2,532 Sq. Ft.
Main Level:
2,176 Sq. Ft.
Upper Level:
4,708 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
518 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
9
Second Floor Ceiling:
30' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
ROOF PITCH
5/12
Primary:
ROOF LOAD
40
Live:
10
Dead:
100
Wind:
INSULATION (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
KEY FEATURES
Attached
Front Porch
KEY FEATURES
Master suite 12 ft. tray ceiling
