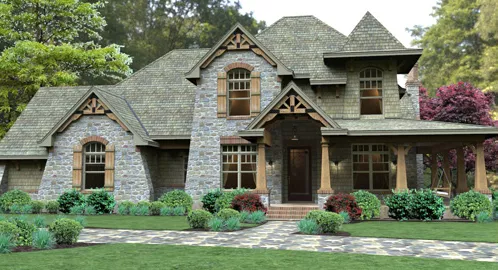

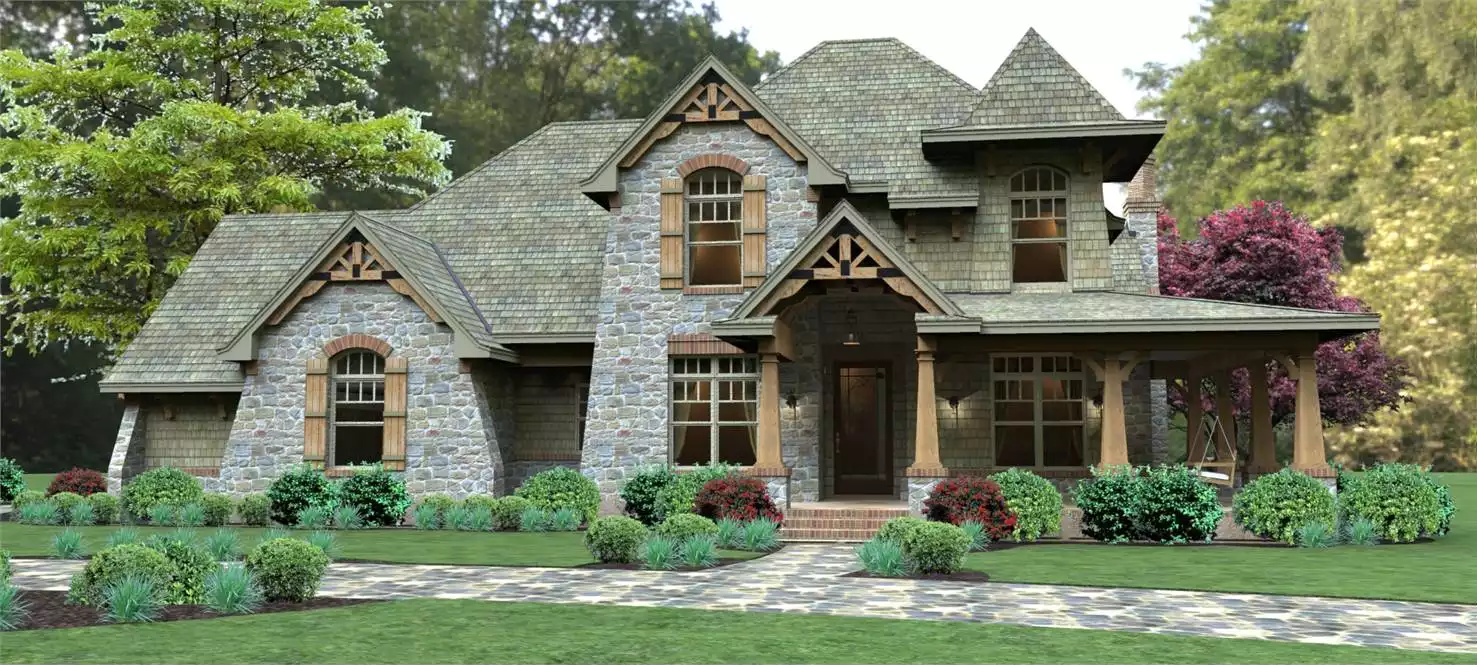

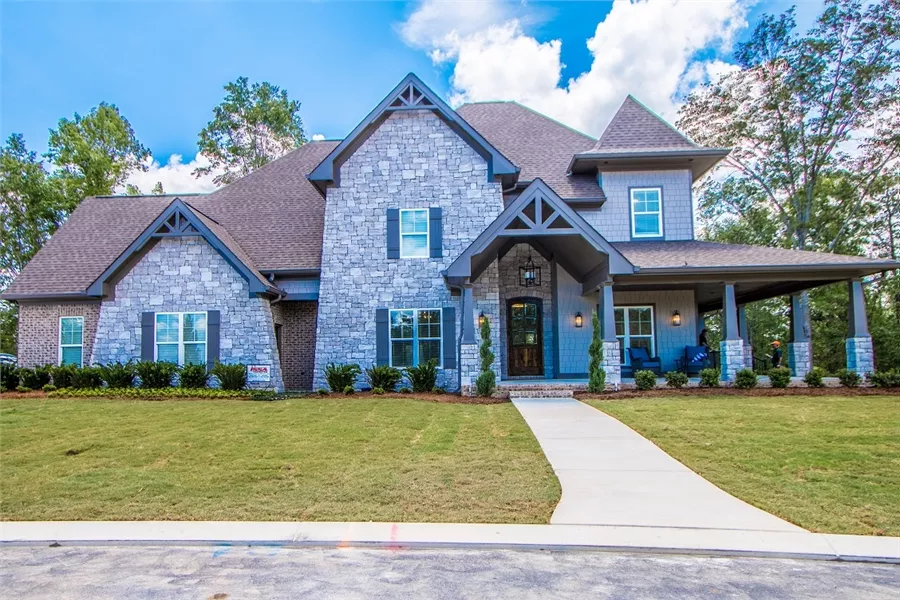

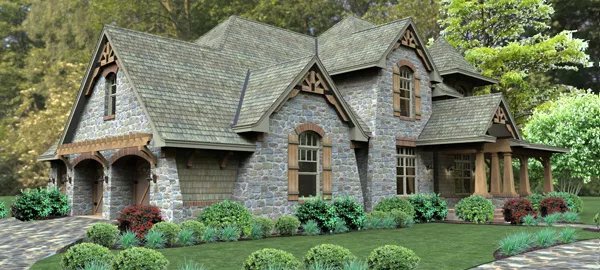

  1. Rendering - Front

    Rendering - Front
  2. Rendering - Front

    Rendering - Front

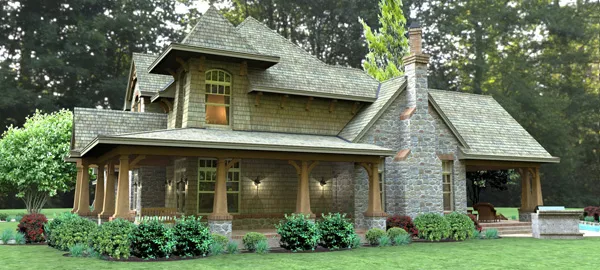

  3. Rendering - Front Left

    Rendering - Front Left
  4. Rendering - Front Right

    Rendering - Front Right

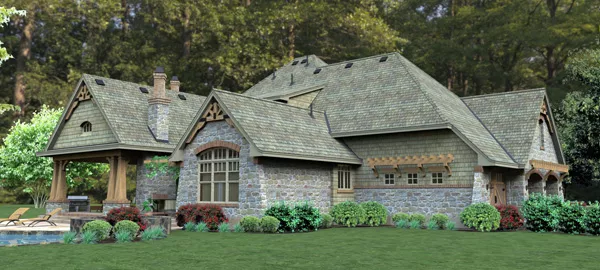

  5. Rendering - Right

    Rendering - Right
  6. Rendering - Right Rear

    Rendering - Right Rear
  7. Rendering - Left Rear

    Rendering - Left Rear
  8. Rendering - Left

    Rendering - Left

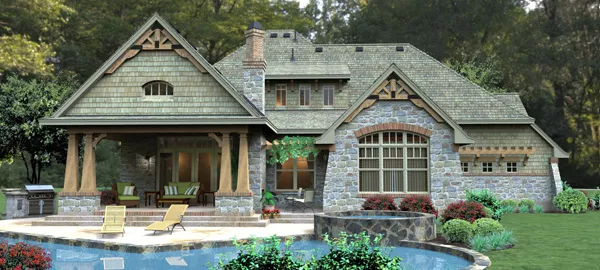

  9. Rendering - Rear

    Rendering - Rear
  10. First Floor Plan

    First Floor Plan
  11. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer

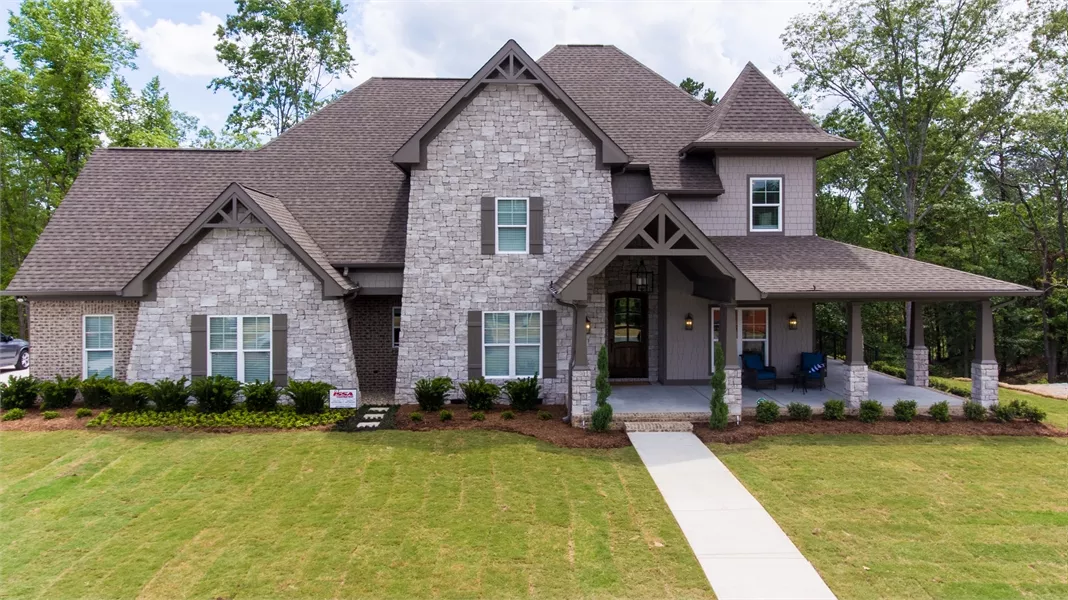

Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

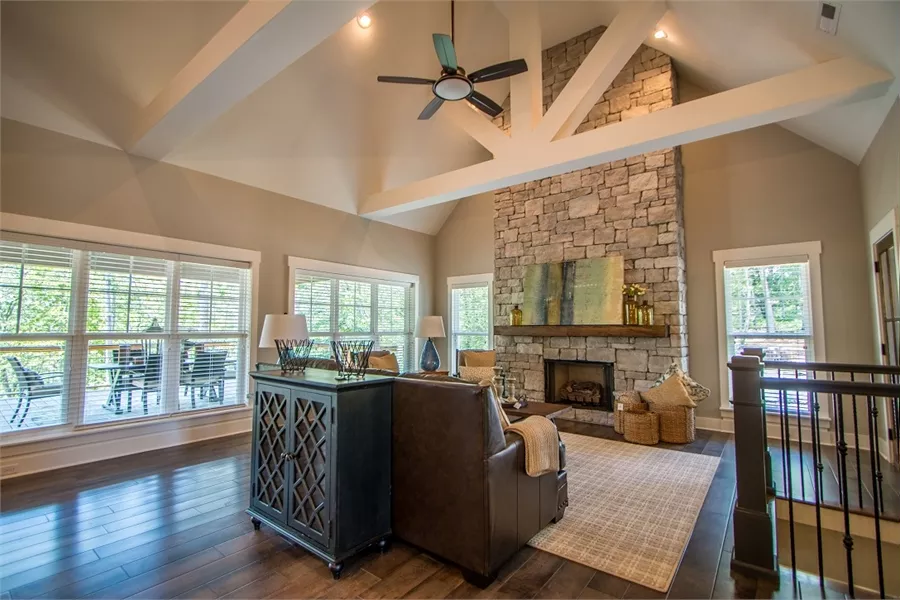

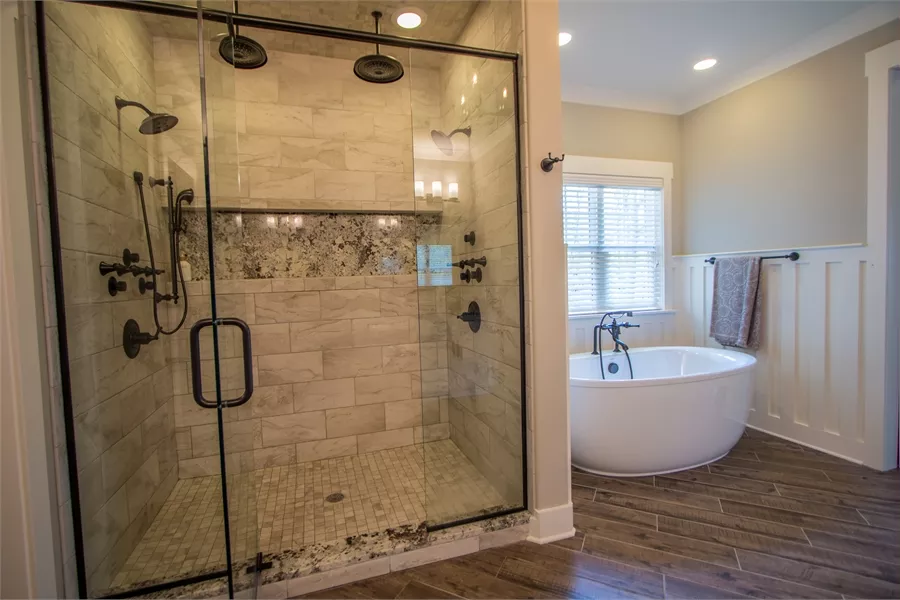

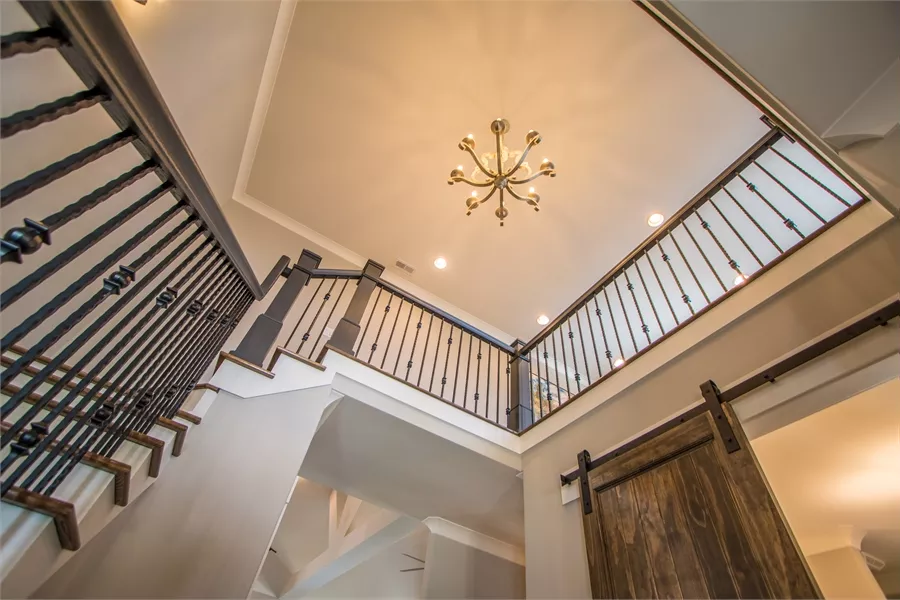

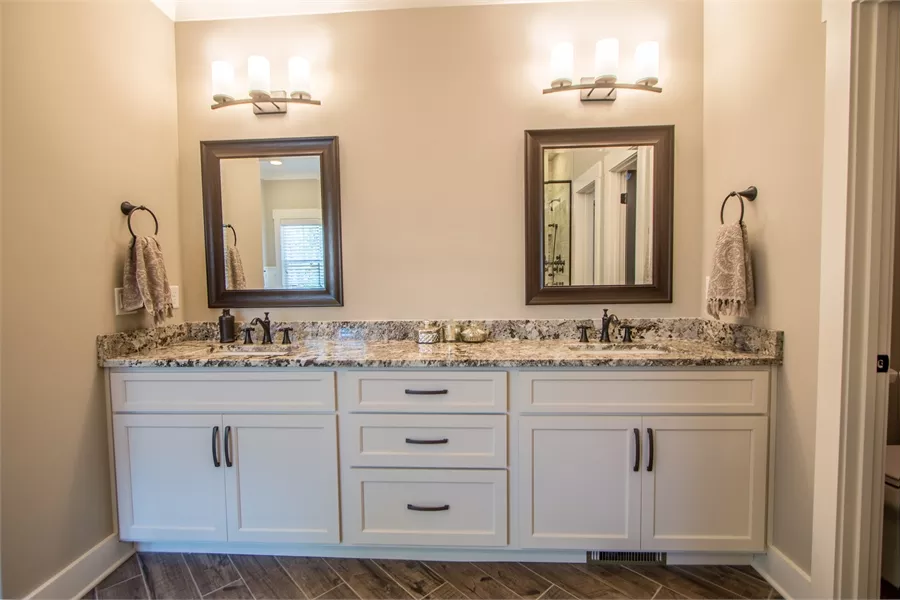

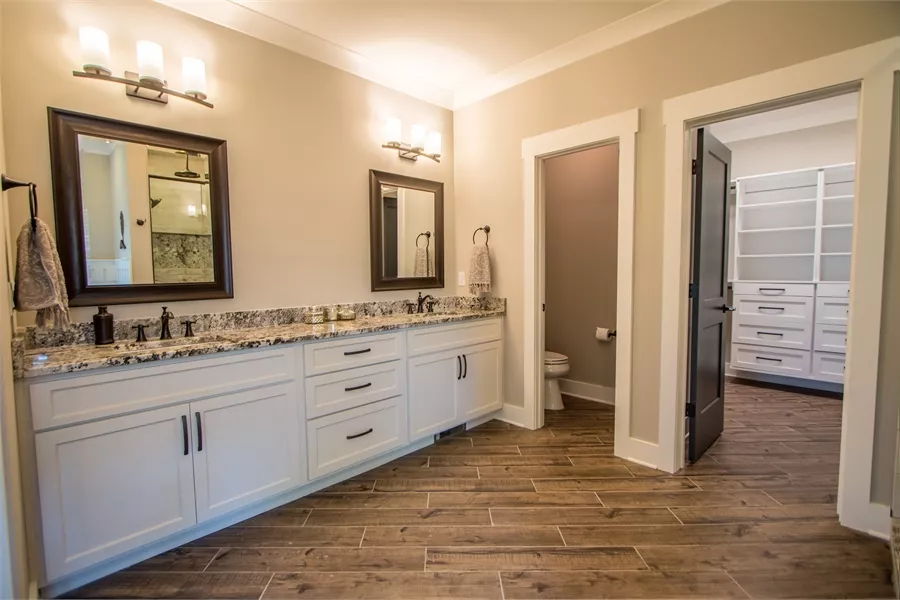

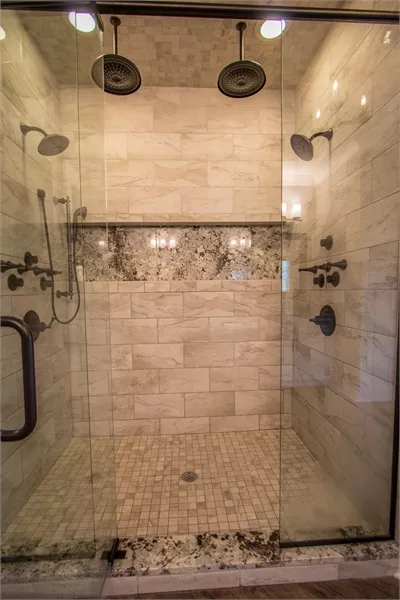

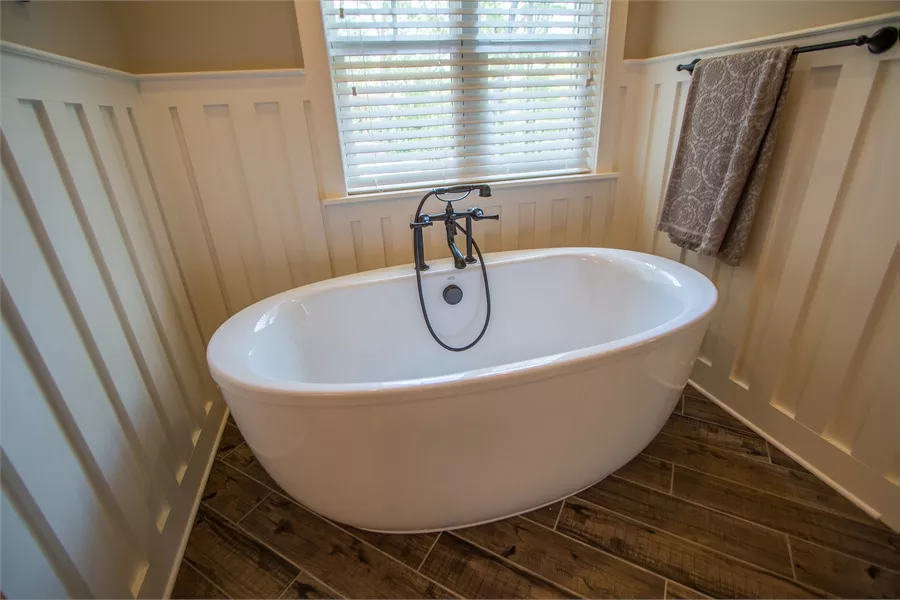

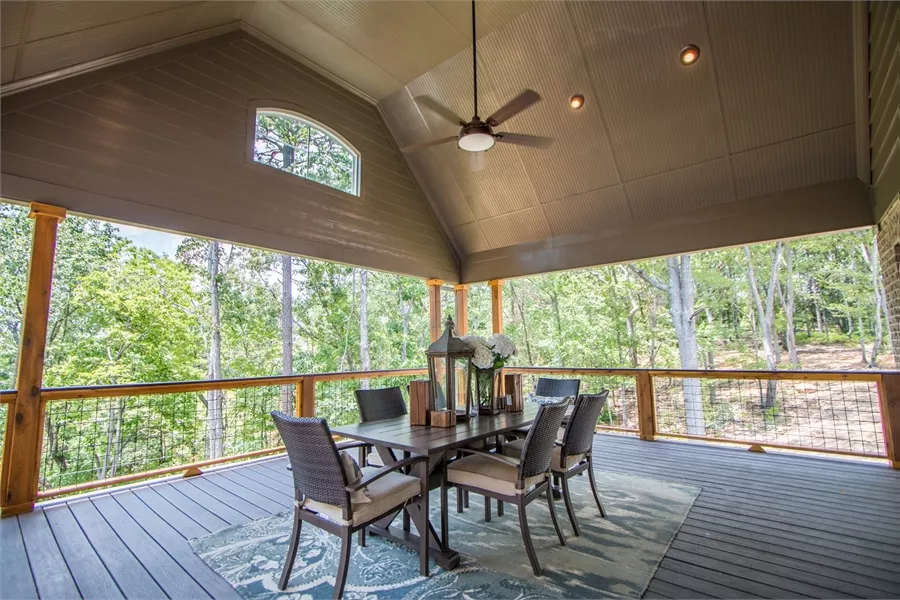

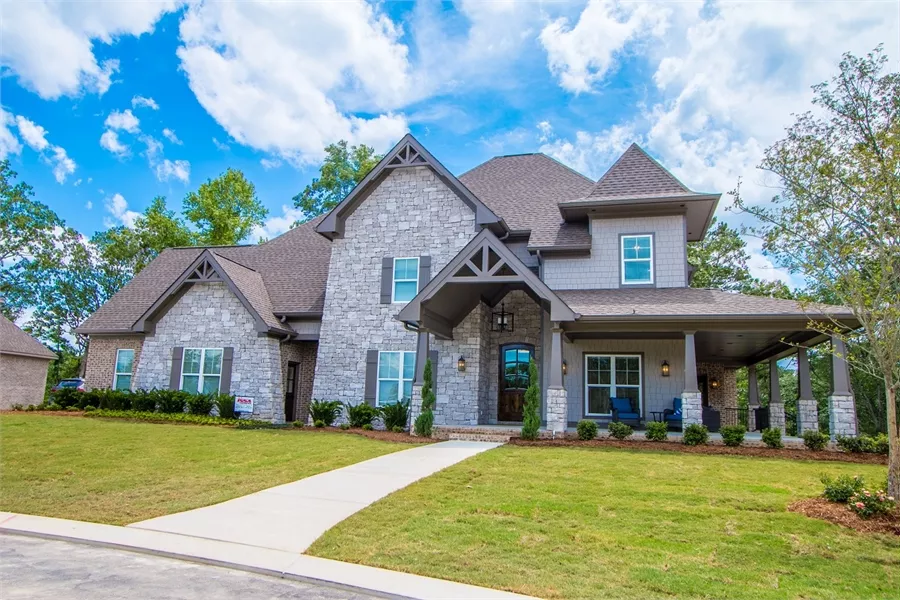

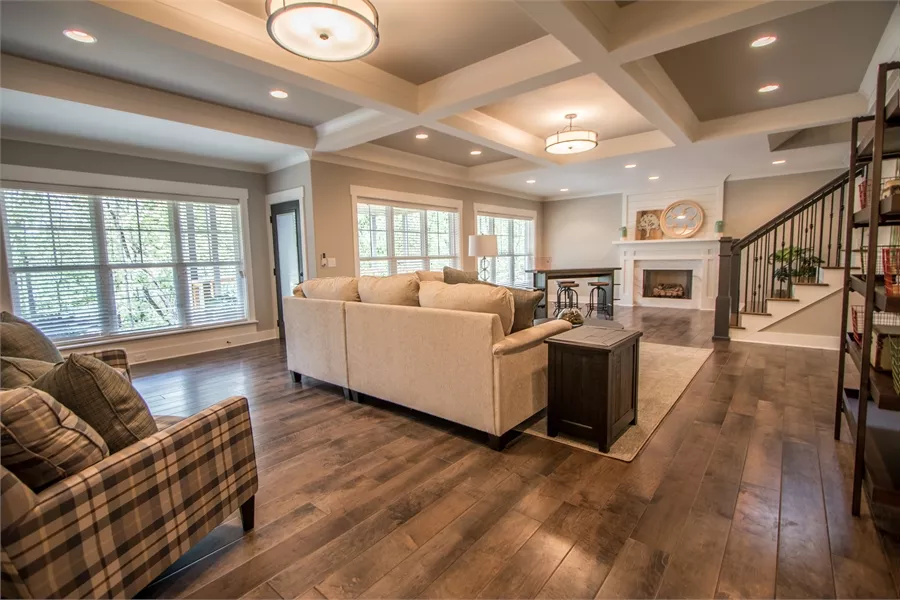

A traditional wraparound porch leads to an open and slightly contemporary foyer with a grand stair to the upper level. The oversized family area opens via sliding glass doors onto a lanai with an outdoor fireplace.The master suite has access to its on private terrace and the master bath feels open and spacious with a garden tub and walk-in glass shower.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

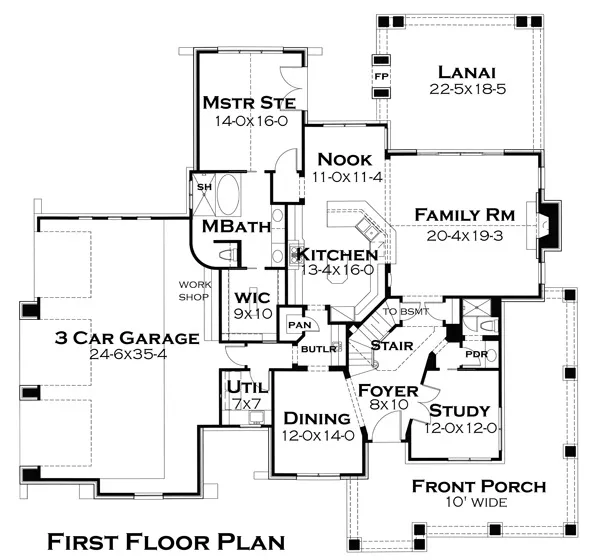

First Floor Plan

First Floor Plan
All images copyrighted by designer.

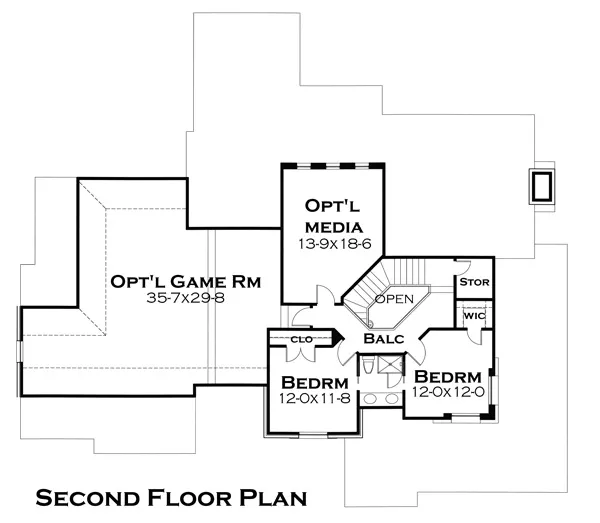

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #4503: s'Fondare Estate

ENERGY STAR Heated Area: 2,487 Sq. Ft.
First Floor: 2,001 Sq. Ft.
Second Floor: 486 Sq. Ft.
Bonus: 1,090 Sq. Ft.
Width: 76 Ft. 3 In.    Depth: 73 Ft. 5 In.
Bedrooms: 4           Bath: 3
Garage: 3
Foundation: Basement, Crawl Space, Slab
Available Packages
 PDF Bid Set  $945.00
 Five Sets  $1,345.00
 Eight Sets  $1,645.00
 Vellums  $1,845.00
 PDF  $1,845.00
 AutoCad Files (DWG)  $2,995.00
Foundation Options
 Slab  $0.00
 Crawl Space  $300.00
 Basement  $400.00
Plan Options
 ENERGY STAR® Approved  $175.00
 Full Reverse   $300.00
 Additional Sets   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
76' 3"
Width:
73' 5"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
EXTERIOR STYLE
Craftsman
Cottage
European
Mountain
Tennessee
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
FINISHED SQUARE FOOTAGE
2,001 Sq. Ft.
Main Level:
486 Sq. Ft.
Upper Level:
2,487 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
GARAGE
Side
Garage Location:
3
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
34' 9"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12:12
Primary:
3:12
Porch:
ROOF LOAD
20
Live:
15
Dead:
30
Wind:
INSULATION (R)
15
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
KEY FEATURES
Arches
Bonus Room
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
KEY FEATURES
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rec Room
Separate Tub and Shower
Split Bedrooms
Storage Space
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Workshop
Wraparound Porch
