Recently Viewed Plans | Advanced Plan Search

Sq Ft
4,790 FT²

Bed
4

Bath
6.5

Stories
2

Garage
4

Depth
88'

Width
116'

On Sale
$2,198.95
$2,587.00

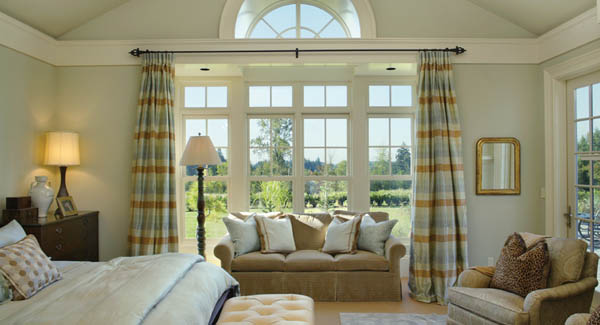

View All 20 Images | Photographs may reflect modified home

Sq Ft

4,790 FT²

From

$2,198.95

Bed

Bath

6.5

Stories

Garage

Depth

88'

Width

116'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

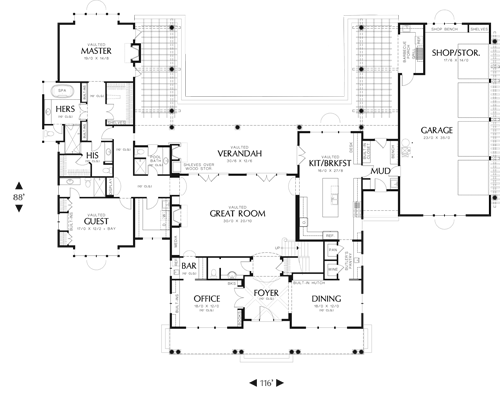

1st Floor

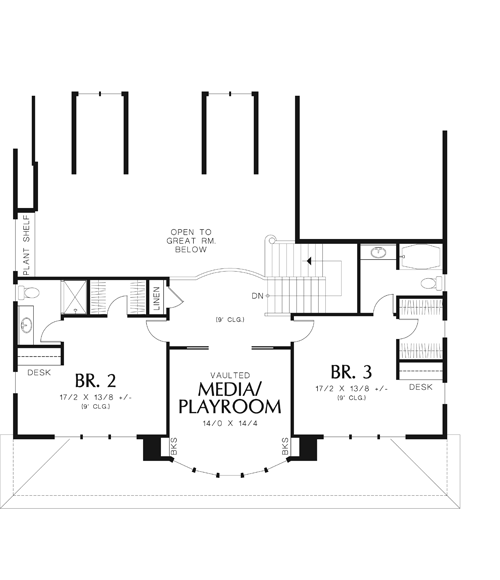

2nd Floor

1st Floor

2nd Floor

About This Plan

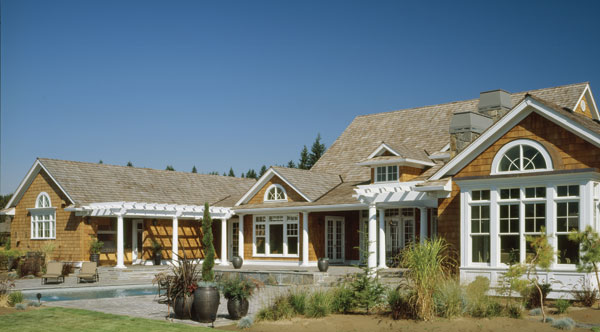

With rambling and rustic flair, this Shingle-style home exudes an understated elegance. Suggestive of its forbearers, which were primarily vacation cottages, this design features a guest-house-like wing, marked with a large Palladian window. Flanking the opposite side of the home, a three-car garage with workshop and storage space balances the facade.

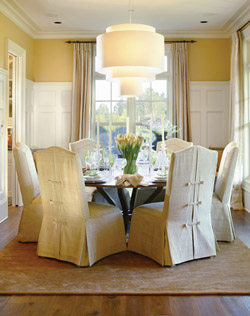

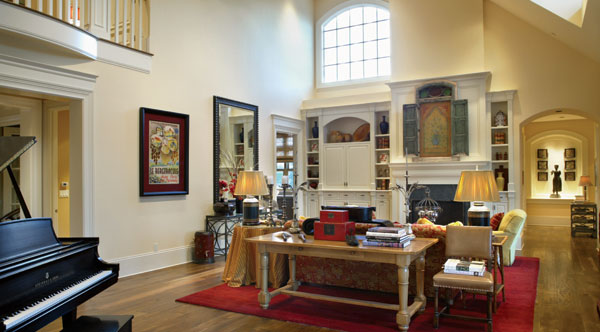

Past a sentinel of double columns on the porch, the front door leads to the main section of the home. Here the living spaces resonate with simplicity and livability. At the front of the home, double doors give the office privacy from the rest of the plan. The dining room resides on the opposite end of the foyer, accompanied by a wine cellar, pantry and large service counter. Connected by a series of French doors, the kitchen, breakfast room, great room, and verandah seamlessly flow together for fair-weather entertaining.

The guest and master wing are designed around separate bathrooms and closets for optimum privacy. The upper level is advantageous for older children: Each of two suites features a walk-in closet and desk for storing kids wardrobes, toys, and homework. Down the hall, the media/playroom showcases a bow window, which appears to beckon the kids to a recess from work and study.

FEATURES & DETAILS

Kitchen features

Butler's Pantry

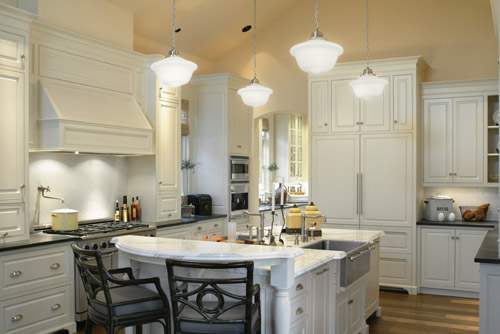

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor

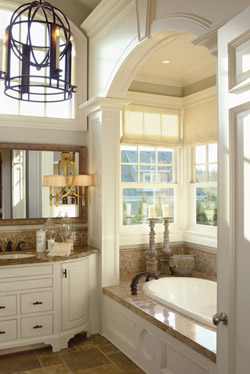

Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for view lot

Additional features

Arches
Dining Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Mud Room
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry

4,790 Ft

Total Heated

3,800 Ft

1st Floor

990 Ft

2nd Floor

Bedrooms

6.5

Bathrooms

Garage

Stories

116' 0"

Width

88' 0"

Depth

32' 8"

Height

Varies' 0"

Main Floor Ceiling

Varies' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

10/12

Primary Roof Pitch

8/12

Secondary Roof Pitch

8/12

Gable Roof Pitch

4/12

Porch Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

1,109 Ft

Garage

434 Ft

Porch

381 Ft

Patio

Exterior Styles

Cape Cod

Craftsman

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,587

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,587

$2,787

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,787

$2,837

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,837

$5,174

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,174

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
