  1. Front Rendering

    Front Rendering
  2. Rear Rendering

    Rear Rendering

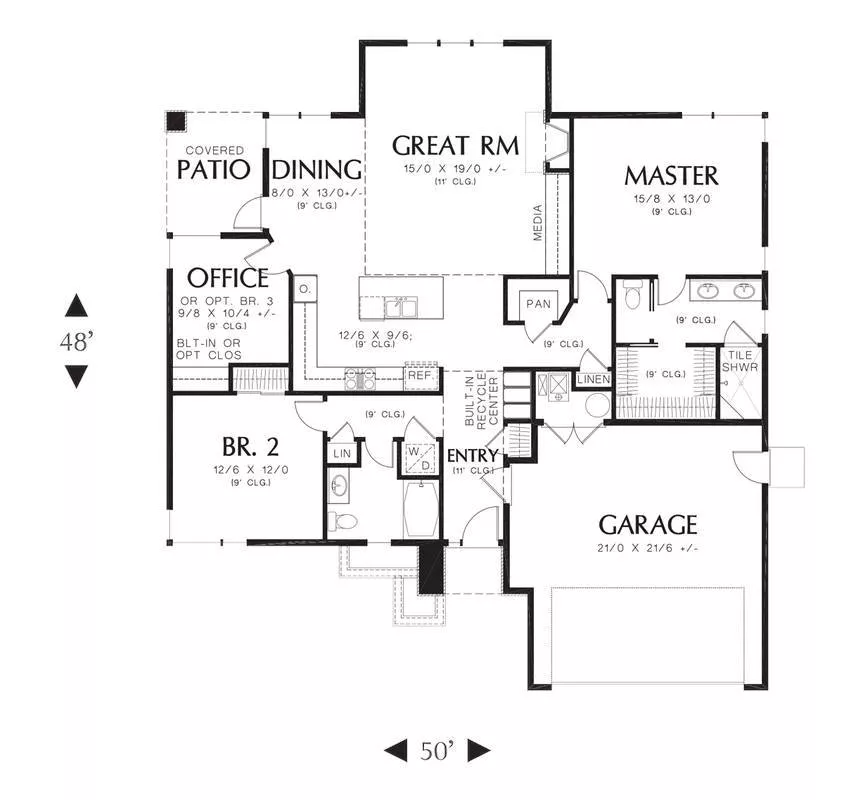

  3. First Floor

    First Floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Contemporary elegance meets old time charm in this efficient ranch style home designed to encourage an efficient lifestyle while providing all the amenities needed in modern times.
Questions & Answers
Have questions about this plan? Click here for help!


First Floor

First Floor
All images copyrighted by designer.


Plan #3087: Palmer

ENERGY STAR Heated Area: 1,608 Sq. Ft.
First Floor: 1,608 Sq. Ft.
Width: 50 Ft.    Depth: 54 Ft.
Bedrooms: 2           Bath: 2
Garage: 2
Styles: Modern, Ranch
Foundation: Crawlspace
Available Packages
 PDF Files - Single Build  $900.00
 5 Printed Paper Sets  $950.00
 AutoCAD Files  $1,800.00
Foundation Options
 Crawlspace  $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $20.00
 Full Reverse Sets   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
50' 0"
Width:
54' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Contemporary
Modern
Ranch
NUMBERS OF ROOMS
2
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,608 Sq. Ft.
Main Level:
1,608 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
448 Sq. Ft.
Garage:
80 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Crawlspace
HOUSE AND CEILING HEIGHTS
Varies
First Floor Ceiling:
19' 6"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
6/12
Primary:
ROOF LOAD
25
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Country Kitchen
Covered Rear Porch
Crawlspace
Double Vanity Sink
Fireplace
Foyer
Great Room
Home Office
KEY FEATURES
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Open Floor Plan
Suited for narrow lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
