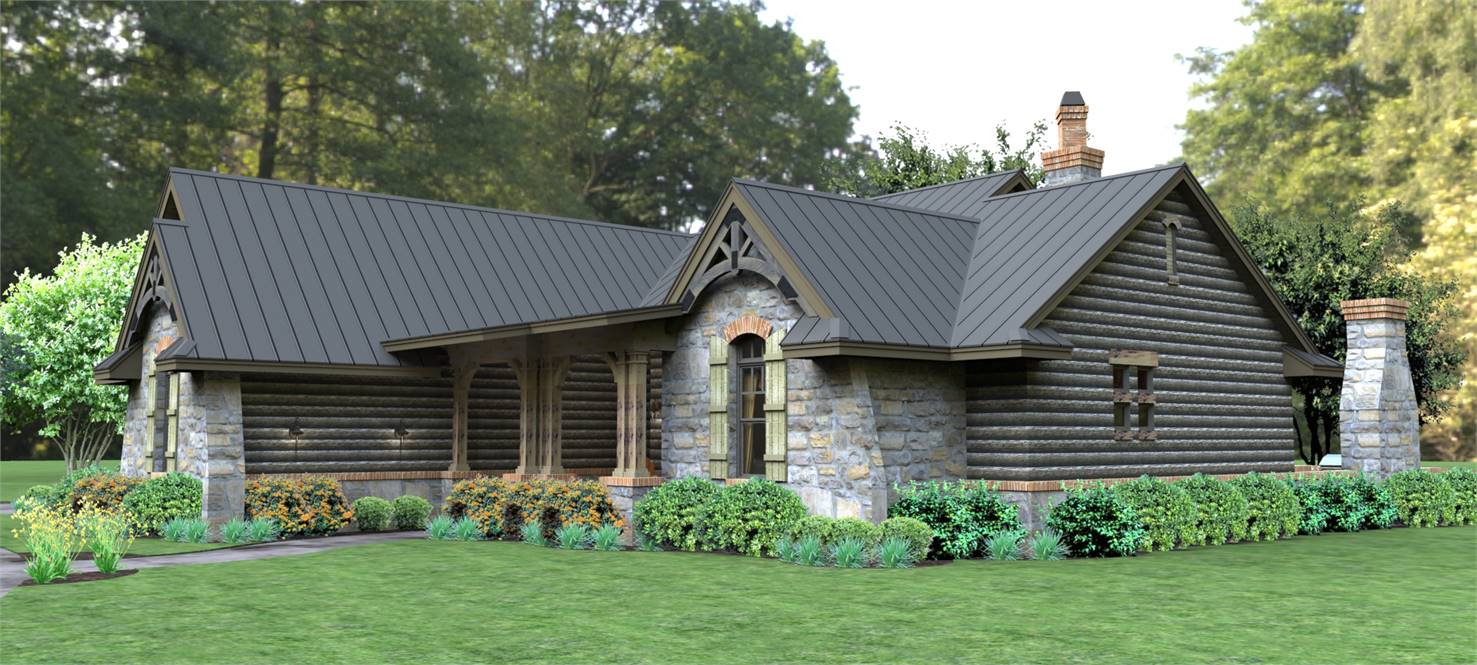

  3. Rendering - Front Right

  4. Rendering - Front Right

  5. Rendering - Front Left

  6. Rendering - Left

  7. Rendering - Left Rear

  8. Rendering - Right Rear

  9. Rendering - Rear

  10. First Floor Plan

  11. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
read our customer stories and testimonials
"Very helpful with our needs. We are very pleased with our experience with The House Designers."
Customer Review:
— Alan Otto of PONCA CITY, OK
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan image of Lado del Rio
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan image of Lado del Rio
All images copyrighted by designer.


Plan #4514: Lado del Rio

ENERGY STAR Heated Area: 2,234 Sq. Ft.
First Floor: 2,234 Sq. Ft.
Bonus: 276 Sq. Ft.
Width: 60 Ft. 6 In.    Depth: 75 Ft. 10 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Ranch, Cottage
Foundation: Basement, Crawl Space, Slab
Designer Notes:
This home is perfect for country living or lake/river front property. With wide open planning and room to grow, this charming design has plenty of room for everything.
Available Packages
 PDF Bid Set  $795.00
 Five Sets  $995.00
 Eight Sets  $1,145.00
 PDF  $1,245.00
 Vellums  $1,245.00
 AutoCad Files (DWG)  $1,995.00
Foundation Options
 Slab  $0.00
 Crawl Space  $200.00
 Basement  $300.00
Plan Options
 ENERGY STAR® Approved  $175.00
 Full Reverse   $200.00
 Additional Sets   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:60' 6"
Depth:75' 10"
Dwelling Number:Single
Bonus Access:2nd Floor
  EXTERIOR STYLE
Lake
Ranch
Cottage
Country
Craftsman
Farm House
Builders
Mountain
Vacation
Texas
Tennessee
North Carolina
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:2,234 Sq. Ft.
Total: 2,234 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:512 Sq. Ft.
Porch:229 Sq. Ft.
Patio:275 Sq. Ft.
Bonus Room:276 Sq. Ft.
  GARAGE
Garage Location:Side
Garage Size:2
  FOUNDATION
Basement
Crawl Space
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:21' 10"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:8:12
Gable:12:12
Porch:2:12
  ROOF LOAD
Live:20
Dead:15
Wind:30
  INSULATION (R)
Exterior Wall:15
Interior Wall:15
Ceiling:30
Floor:0
  KEY FEATURES
Attached
Basement
Bonus Room
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Guest Suite
Home Office
  KEY FEATURES
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Sitting Area
Slab
Split Bedrooms
Storage Space
Unfinished Space
Walk-in Closet
