Share this plan with your builder, interior designer, friends and family!
  1. Front Elevation

    Front Elevation
  2. Birds Eye View

    Birds Eye View
  3. Rear Exterior Photo

    Rear Exterior Photo

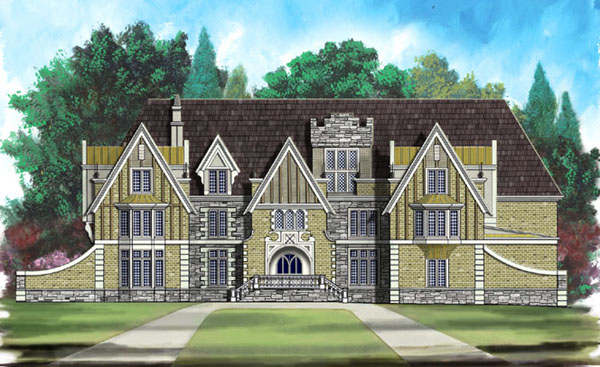

  4. Front Elevation

    Front Elevation
  5. Rear Elevation

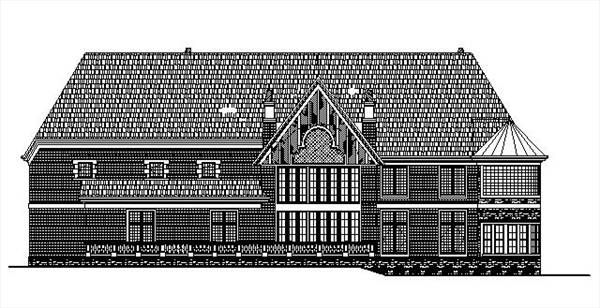

    Rear Elevation
  6. 1st Floor Plan

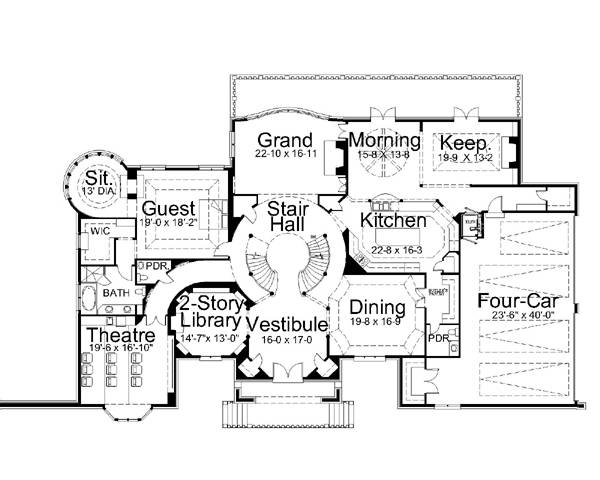

    1st Floor Plan
  7. 2nd Floor Plan

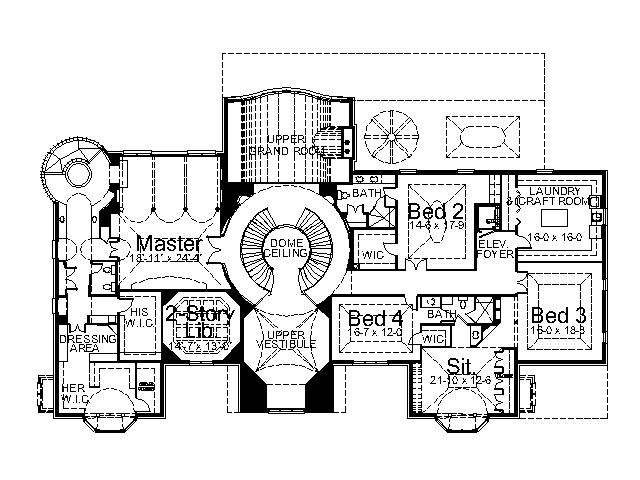

    2nd Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
As you approach this stately edifice with its combination of brick, timber and stacked stone, you are reminded of the magnificent English country homes of the landed gentry. But as you enter the soaring two-story vestibule its evident that the best is truly yet to come.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


1st Floor Plan

1st Floor Plan
All images copyrighted by designer.

2nd Floor Plan

2nd Floor Plan
All images copyrighted by designer.


Plan #6140: Dysart Castle

Heated Area: 7,802 Sq. Ft.
First Floor: 4,216 Sq. Ft.
Second Floor: 3,586 Sq. Ft.
Width: 123 Ft.    Depth: 73 Ft.
Bedrooms: 5           Bath: 4.5
Garage: 4
Styles: European
Foundation: Basement
Available Packages
 PDF  $3,630.00
 CAD (Email)  $5,445.00
Foundation Options
 Basement  $0.00
Plan Options
 Additional Set   $220.00
 Right Read Reverse Plans   $250.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
123' 0"
Width:
73' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Daylight Bsmt
European
Tudor
NUMBERS OF ROOMS
5
Bedrooms:
4
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
4,216 Sq. Ft.
Main Level:
3,586 Sq. Ft.
Upper Level:
7,802 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
1089 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
4
Garage Size:
FOUNDATION
Basement
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
46' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
ROOF LOAD
40
Live:
12
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Daylight Basement
KEY FEATURES
Rear Porch
