Caserta House Plan

All images copyrighted by designer

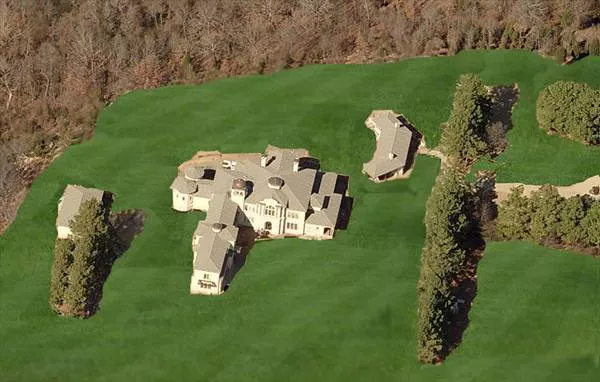

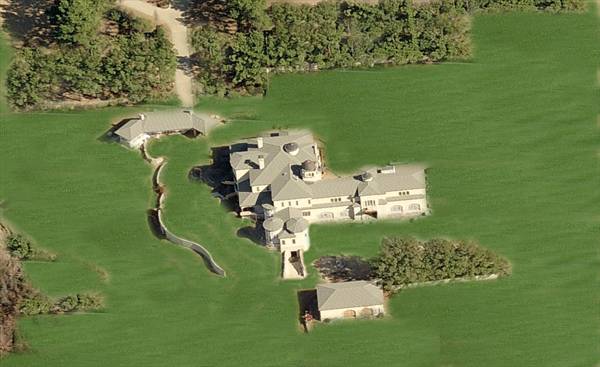

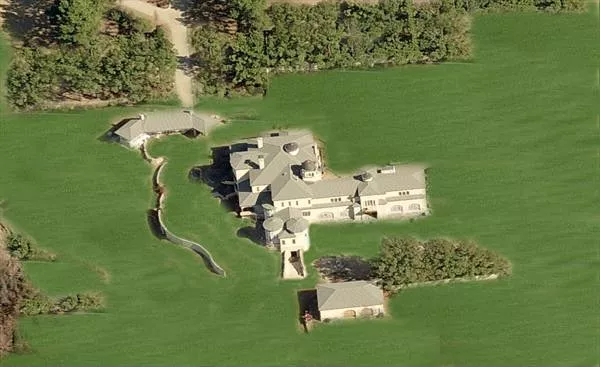

Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

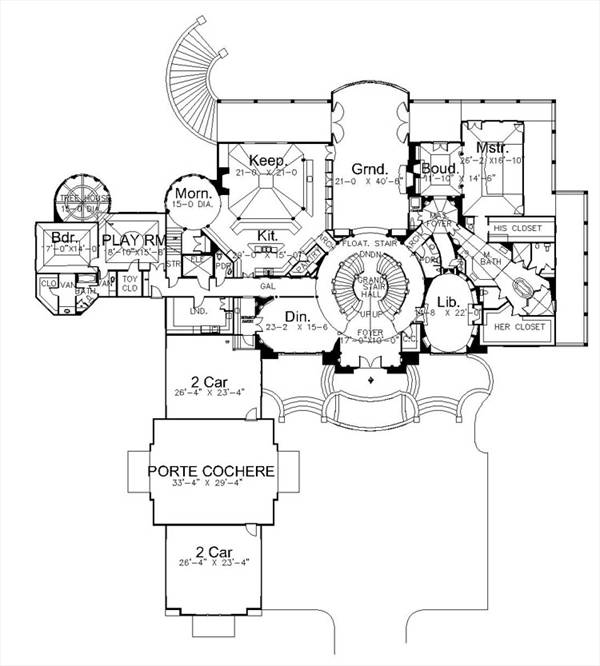

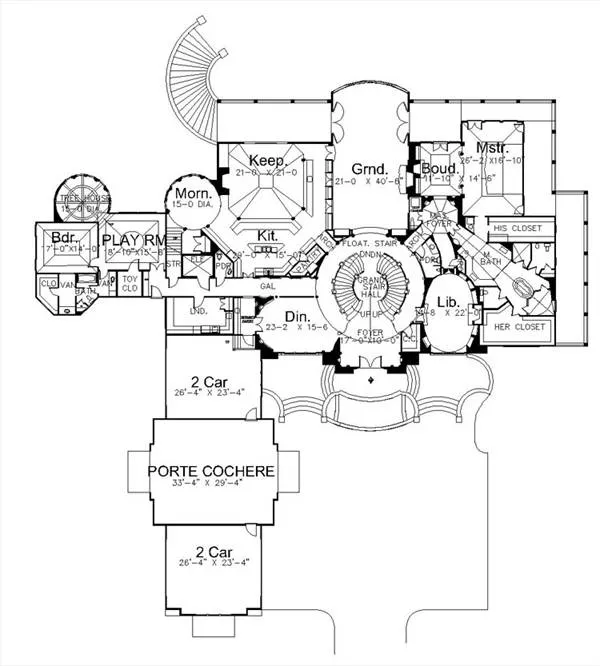

1st Floor Plan

1st Floor Plan image of Caserta House Plan
All images copyrighted by designer.

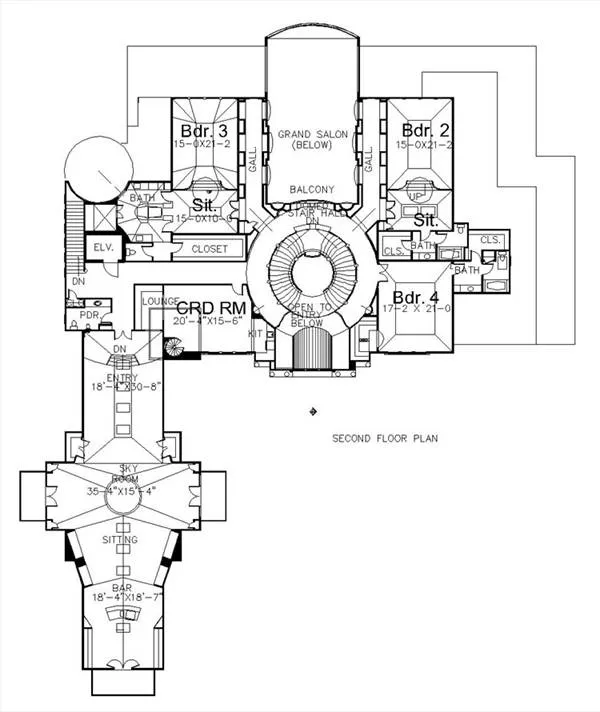

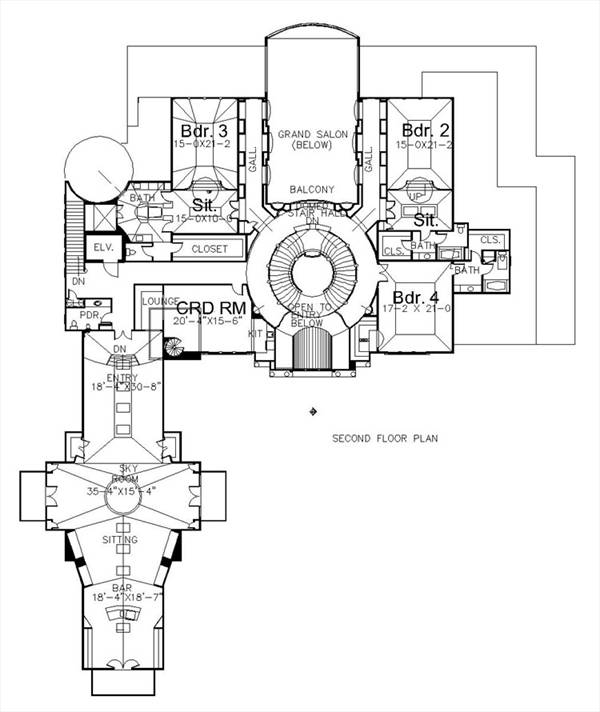

2nd Floor Plan

2nd Floor Plan image of Caserta House Plan
All images copyrighted by designer.





Plan: THD-AEA-7933
ENERGY STAR Heated Area: 13616 Sq. Ft.
First Floor: 7648 Sq. Ft.
Second Floor: 5968 Sq. Ft.
Width: 159 Ft.    Depth: 151 Ft.
Bedrooms: 5           Bath: 5.3
Garage: 4
Styles: Mediterranean, Spanish
Foundation: Basement
Designer Notes:
Learn more about the amenities and key features of Caserta House Plan.

Available Packages
 PDF  $9,680.00
 Vellums  $9,680.00
 AutoCAD Disk  $14,520.00
Foundation Options
 Basement  $0.00
Plan Options
 ENERGY STAR® Approved  $475.00
 Additional Set   $750.00
 Right Read Reverse Plans   $400.00

Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:159' 0"
Depth:151' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Mediterranean
Spanish
Traditional
European
Tuscan
Daylight Bsmt
Sloping Lot
  NUMBERS OF ROOMS
Bedrooms:5
Full Baths:5
Half Baths:3
  FINISHED SQUARE FOOTAGE
Main Level:7648 Sq. Ft.
Upper Level: 5968 Sq. Ft.
Total: 13616 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:1310 Sq. Ft.
Porch:1348 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:4
  FOUNDATION
Basement
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:12
Second Floor Ceiling:12
Maximum House Height:41' 10"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:12/12
  ROOF LOAD
Live:40#
Dead:12#
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Story Grand Salon
2 Story Volume
4-Car Garage
Attached
Bar
Boudois in Master
Covered Veranda
Daylight Basement
Elevator
Exercise Room
Floating Circular Stairs in Grand Hall
Foyer
Gallery
  KEY FEATURES
Kitchen in Basement
Library/Media Rm
Lounge
Maid's Bedroom
Maid's Living Room
Master Bdrm Main Floor
Porte Cochere
Rear Porch
Sauna
Sky Room
Social Area
Stage/Theatre
Wine Cellar
