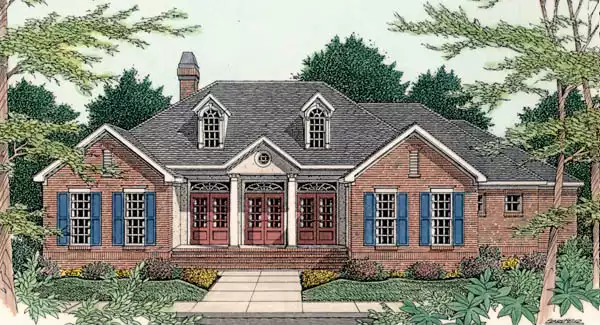

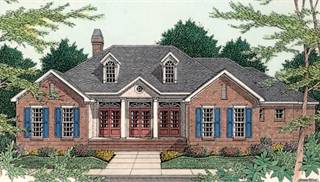

Carlton House Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

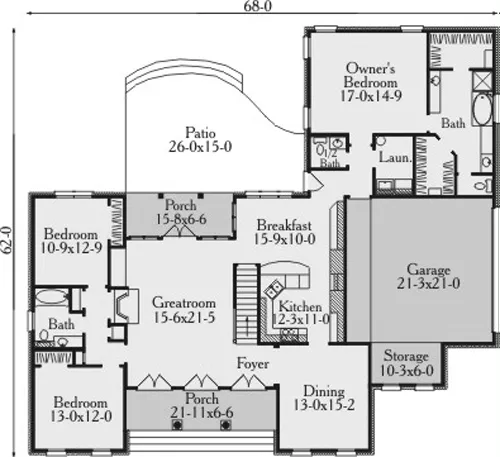

First Floor Plan
All images copyrighted by designer.

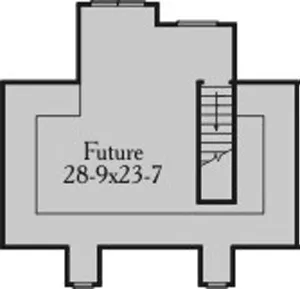

Second Floor Plan
All images copyrighted by designer.
Plan: THD-LJD-3511
Heated Area: 2184 Sq. Ft.First Floor: 2184 Sq. Ft.Bonus: 572 Sq. Ft.Width: 68 Ft. Depth: 62 Ft. Bedrooms: 3 Bath: 2.1Garage: 2Styles: Colonial, SouthernFoundation: Basement, Crawl Space, Slab
Learn more about the amenities and key features of Carlton House Plan.
Architect's Preferred Products:
Decorative Millwork and Columns
Classic-Craft
® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
Number of Stories: 1.5 Width: 68' 0" Depth: 62' 0" Dwelling Number: Single Bonus Access: 1st Floor
EXTERIOR STYLE
Traditional Colonial Southern
NUMBERS OF ROOMS
Bedrooms: 3 Full Baths: 2 Half Baths: 1
FINISHED SQUARE FOOTAGE
Main Level: 2184 Sq. Ft. Total: 2184 Sq. Ft.
UNFINISHED SQUARE FOOTAGE
Garage: 550 Sq. Ft. Porch: 233 Sq. Ft. Bonus Room: 572 Sq. Ft.
GARAGE
Garage Type: Attached Garage Size: 2
FOUNDATION
Basement Crawl Space Slab
HOUSE AND CEILING HEIGHTS
First Floor Ceiling: 9 Second Floor Ceiling: 8 Maximum House Height: 25' 0"
FRAMING INFORMATION
Roof Framing: Stick Exterior Wall Framing: 2x4
ROOF LOAD
Live: 30 Dead: 15
INSULATION (R)
Per IRC Climate Zones
ROOM INFORMATION
1/2 Bath 5' 2" X 4' 4 Bath 1 7' 2" X 8' 8 Bedroom 10' 9" X 12' 9 Bedroom 13' 0" X 12' 0 Bedroom Closet 4' 8" X 2' 0 Breakfast 15' 9" X 10' 10 Dining 13' 0" X 15' 2 Foyer 6' 6" X 6' 4 Front Porch 21' 11" X 6' 6 Future 28' 9" X 23' 7 Garage 21' 3" X 21' 0 Greatroom 15' 6" X 21' 5 Hall Closet 2' 0" X 2' 0 Hall Closet 1' 6" X 3' 4 Kitchen 12' 3" X 11' 0 Laundry 5' 6" X 8' 8 Master Bath 9' 4" X 18' 0 Master Bedroom 17' 0" X 14' 9 Master Closet 9' 4" X 5' 4 Master Closet 5' 10" X 8' 8 Patio 26' 0" X 15' 0 Rear Porch 15' 8" X 6' 6 Storage 10' 3" X 6' 0
KEY FEATURES
Attached Basement Bonus Room Covered Front Porch Covered Rear Porch Crawlspace Dining Room Double Vanity Sink Fireplace Foyer Great Room His and Hers Master Closets
KEY FEATURES
Home Office Laundry 1st Fl Master Bdrm Main Floor Nook / Breakfast Area Peninsula / Eating Bar Separate Tub and Shower Side-entry Slab Split Bedrooms Storage Space Unfinished Space Walk-in Closet
Recently Viewed House Plans
pnlExclusivePlansSearch
Carlton House Plan Slideshow
Oops!
It looks like you don't have a Flash player installed. Click here to go to Adobe download page.
Carlton House Plan Similar Plans
Carlton House Plan Description
Triple entry doors lead the tour of this popular design. The split bedroom design and secluded master suite are desired assets for this home. A 1/2 bath is located near the patio entrance for convenience. The family room is the focal point of this home connecting the front and rear porches.
