  1. Front Rendering

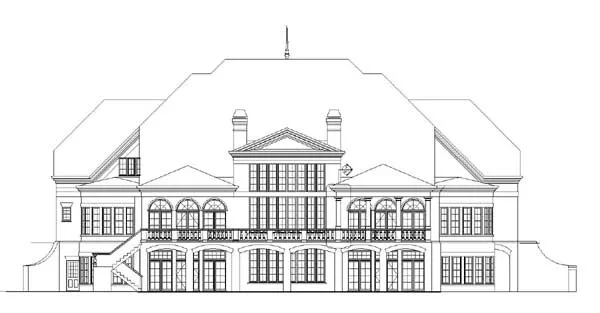

  2. Rear Elevation

  3. 1st Floor Plan

  4. 2nd Floor Plan

  5. Basement Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Opulent, but not overstated, this estate plan offers symmetry and elegance from its grand entry and double circular staircase and to every remarkable room. The first floor caters to gatherings both large and small with a grand salon, a keeping room, a formal dining hall, a circular morning room and a very private library.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

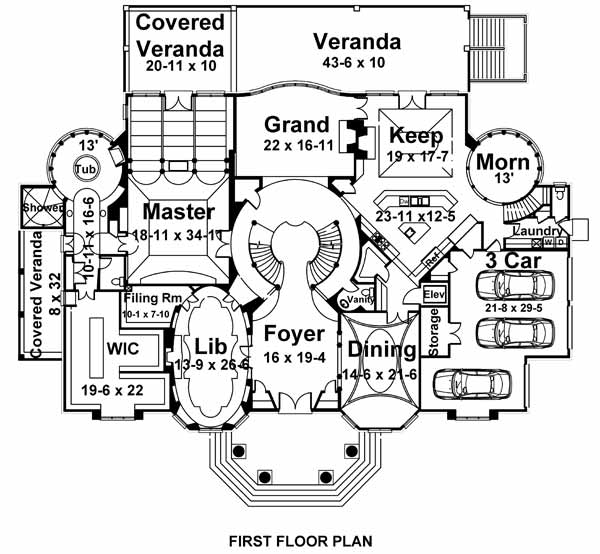

1st Floor Plan

1st Floor Plan image of Ashburton
All images copyrighted by designer.

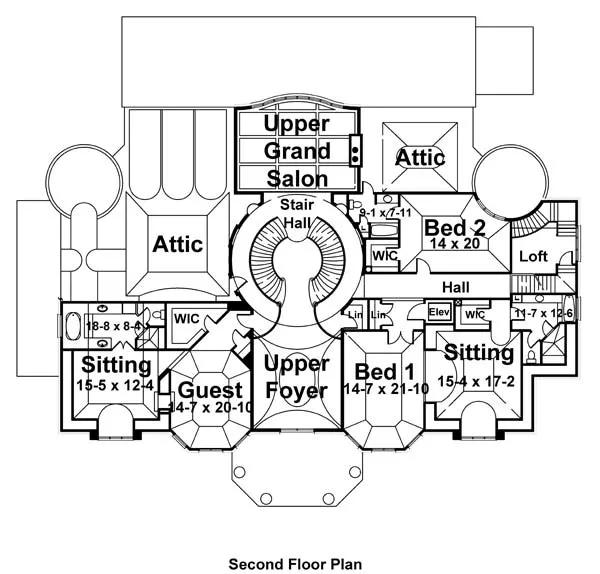

2nd Floor Plan

2nd Floor Plan image of Ashburton
All images copyrighted by designer.

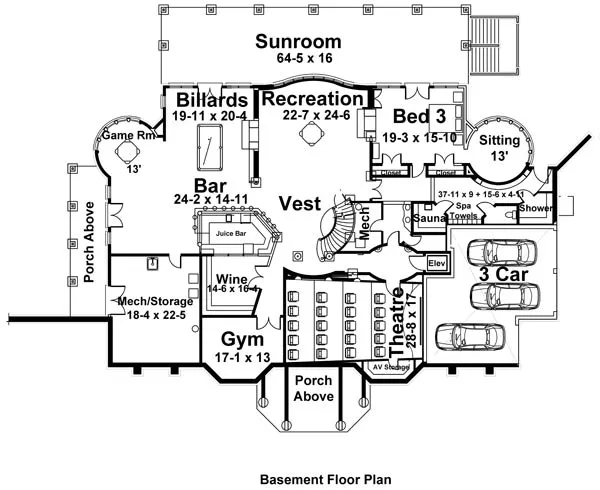

Basement Floor Plan

Basement Floor Plan image of Ashburton
All images copyrighted by designer.


Plan #7926: Ashburton

Heated Area: 8,100 Sq. Ft.
First Floor: 4,690 Sq. Ft.
Second Floor: 3,410 Sq. Ft.
Width: 102 Ft.    Depth: 79 Ft.
Bedrooms: 4           Bath: 4.5
Garage: 3
Styles: European
Foundation: Basement
Available Packages
 PDF  $4,115.00
 CAD (Email)  $6,170.00
Foundation Options
 Basement  $0.00
Plan Options
 Additional Set   $275.00
 Right Read Reverse Plans   $300.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
102' 0"
Width:
79' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
European
NUMBERS OF ROOMS
4
Bedrooms:
4
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
4,690 Sq. Ft.
Main Level:
3,410 Sq. Ft.
Upper Level:
8,100 Sq. Ft.
Total:
GARAGE
Side
Garage Location:
3
Garage Size:
FOUNDATION
Basement
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
41' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
ROOF LOAD
40#
Live:
12#
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Daylight Basement
KEY FEATURES
Wraparound Porch
