Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,828 FT²

Beds
3

Baths
2.5

Stories
2

Garage
1

Depth
40'

Width
32'

On Sale
$794.75
$935.00

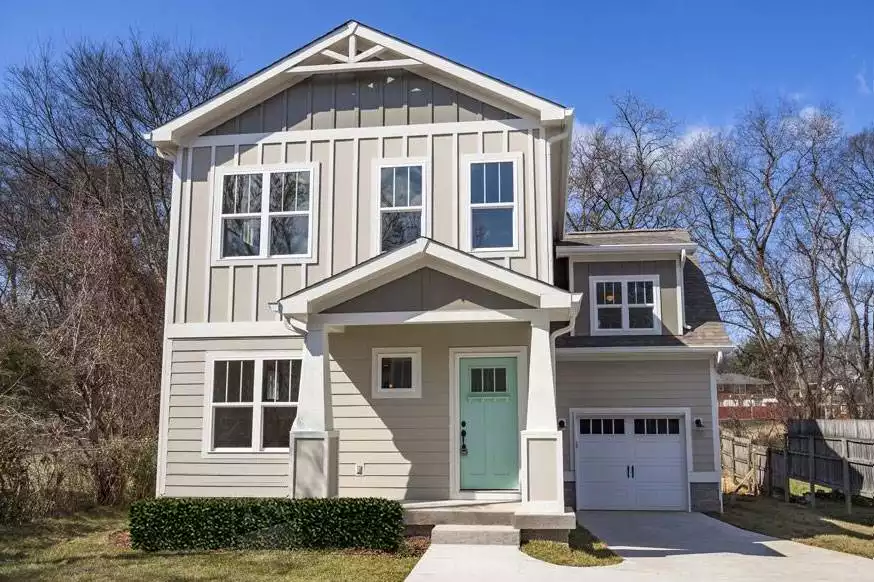

Stunning Front Elevation Featuring Multiple Windows

Flipped Front Rendering

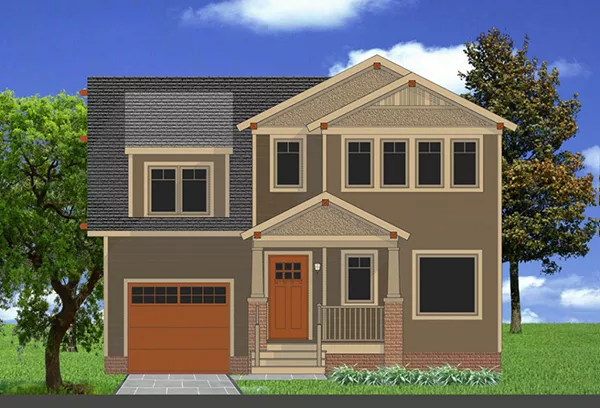

Front Elevation

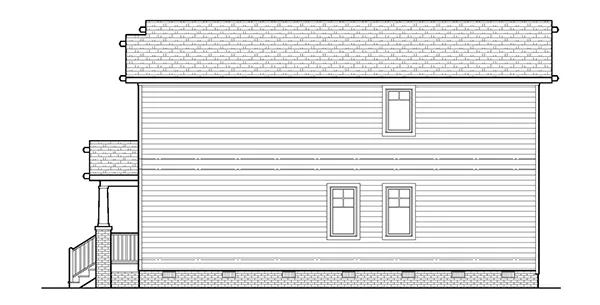

Right Side Elevation

Left Side Elevation

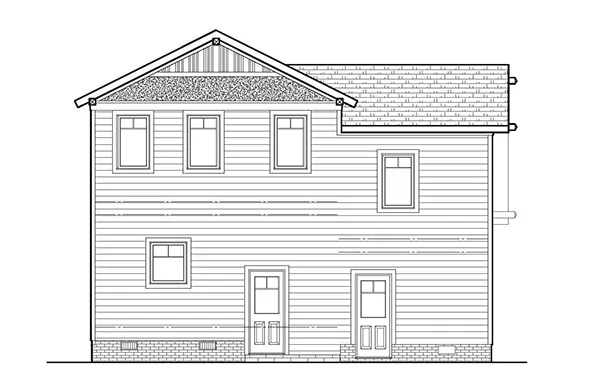

Rear Elevation

1st Floor

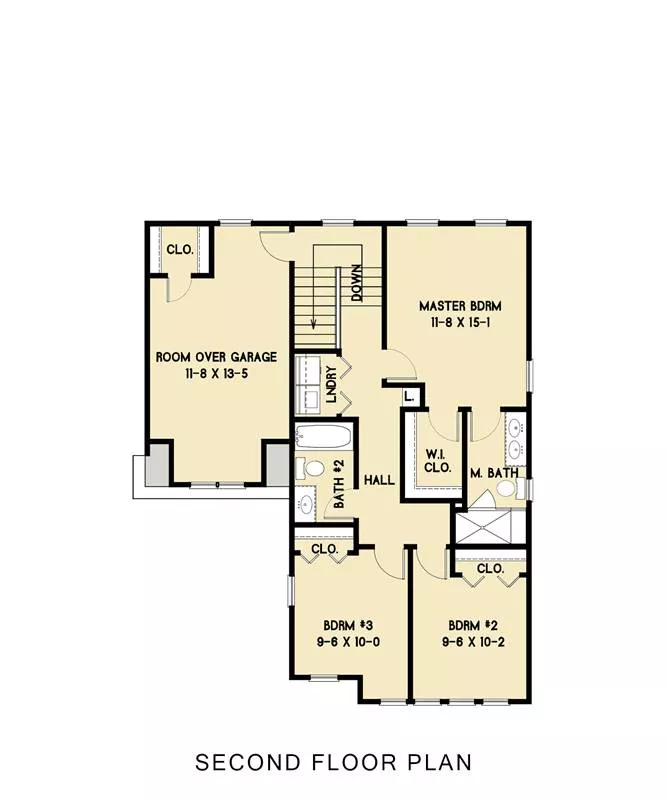

2nd Floor

View All 8 Images | Photographs may reflect modified home

Sq Ft

1,828 FT²

From

$794.75

Beds

Baths

2.5

Stories

Garage

Depth

40'

Width

32'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

2nd Floor

1st Floor

2nd Floor

About This Plan

This Craftsman two-story design makes the most of its 1,828 square feet, including a versatile bonus room above the garage. The front porch or patio opens to a welcoming foyer. The spacious family room is perfect for entertaining. The kitchen and dining room host formal or casual meals in style. On the second level, the restful master suite boasts a walk-in closet and a sit-down shower. Two secondary bedrooms share a full hall bath.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Pantry
U-Shaped

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Front Porch

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot

Additional features

Bonus Room
Dining Room
Family Room
Foyer
Laundry 2nd Fl
Open Floor Plan

Garage Location

Side

Garage Options

Attached
Front-entry

1,885 Ft

Total Structure

1,828 Ft

Total Heated

789 Ft

1st Floor

789 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

32' 0"

Width

40' 0"

Depth

26' 9"

Height

9' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

4/12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

264 Ft

Garage

57 Ft

Porch

100 Ft

Patio

250 Ft

Bonus Room

Exterior Styles

Cottage

Craftsman

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $170

PDF Bid Set

~~$200~~

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $170

Sale: $795

PDF Single Build

~~$935~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $795

Sale: $880

5 Printed Sets

~~$1,035~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $880

Sale: $1,284

CAD Single Build

~~$1,510~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,284

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
