House Plan 5181: CARTAGENA

Long sight lines create dynamic internal vistas and enable easy flow-through in this luxury mansion home plan. Breathtaking columns add warmth to a striking exterior. From the grand foyer, a point of focus is the living room, study and dramatic staircase.  Read more >

House Plan Details

Sq. Ft.
12,291
Beds
5
Baths
7.0
Stories
2
Garages
6
Width
277' 0"
Depth
120' 0"
1st Floor
7,918
2nd Floor
3,163
Garage
2,110
Select Plan Package
Plan PDF Package
$7995
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

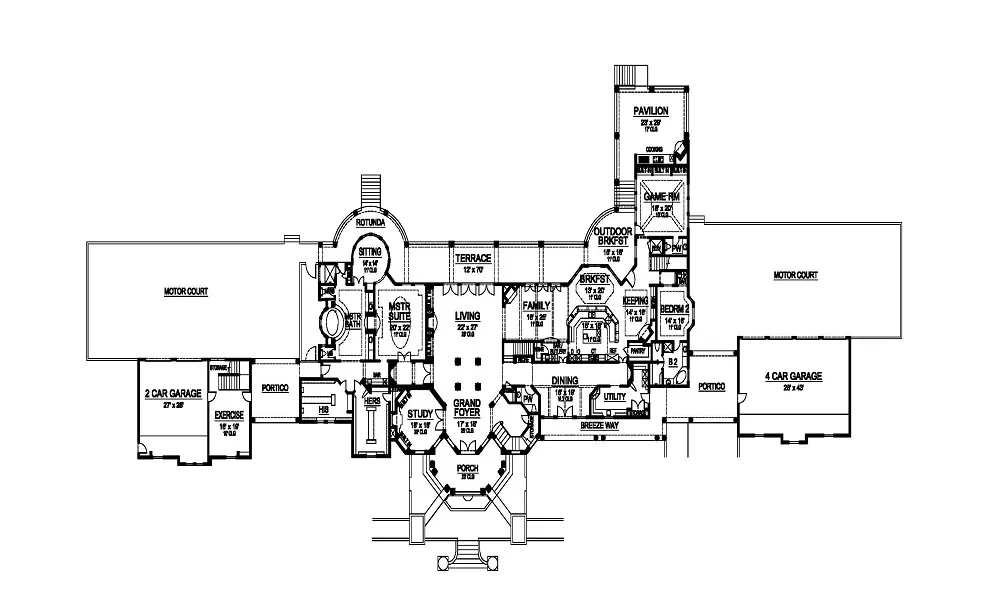

First Floor

First Floor
© copyright by designer
DETAILS
Total SQ. FT.:
12,291
1st Floor SQ. FT.:
7,918
2nd Floor SQ. FT.:
3,163
Bedrooms:
5
Bathrooms:
7.0
Garage:
6
Stories:
2
Main Ceiling Height:
11'
Upper Ceiling Height:
10'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 6
Secondary: 6
Width:
277' 0"
Height:
40' 0"
Depth:
120' 0"
Exterior Styles:
Traditional
Unheated Living Space:
Garage: 2,110
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Double Vanity Sink
Guest Suite
Guest Suite
His and Hers Master Closets
His and Hers Master Closets
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Sitting Area
Sitting Area
Kitchen Features:
Butler's Pantry
Butler's Pantry
Country Kitchen
Country Kitchen
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Additonal Features:
2 Story Volume
2 Story Volume
Arches
Arches
Bonus Room
Bonus Room
Dining Room
Dining Room
Exercise Room
Exercise Room
Family Room
Family Room
Fireplace
Fireplace
Formal LR
Formal LR
Foyer
Foyer
Home Office
Home Office
Laundry 1st Fl
Laundry 1st Fl
Library/Media Rm
Library/Media Rm
Loft / Balcony
Loft / Balcony
Open Floor Plan
Open Floor Plan
Rec Room
Rec Room
Vaulted Ceilings
Vaulted Ceilings
Garage Features:
Attached
Attached
Side-entry
Side-entry
Garage Location:
Side
