James Buchanan House Plan

Plan Number: THD-HDS-4125
Stories: 1
Total Living Area: 3386 Sq. Ft.
First Floor: 3386 Sq. Ft.
Bonus: 444 Sq. Ft.
Bedrooms: 4
Full Baths: 3, Half Baths: 1
Width: 77 Ft. 4 In.
Depth: 99 Ft.
Garage Size: 3
Foundation: Slab (Standard)

Price: $790.00 (FIVE SETS OF BONDPRINTS)

  VIEW SLIDESHOW OF THIS PLAN
CONNECT WITH US
(866) 214-2242       Live Chat
Email Us

  Return to Search Results
  See All Plans By This Designer
  WHY Buy House Plans from Us?
  Read Our CUSTOMER STORIES
Purchase Plan

Wayne Dalton

© copyright by designer

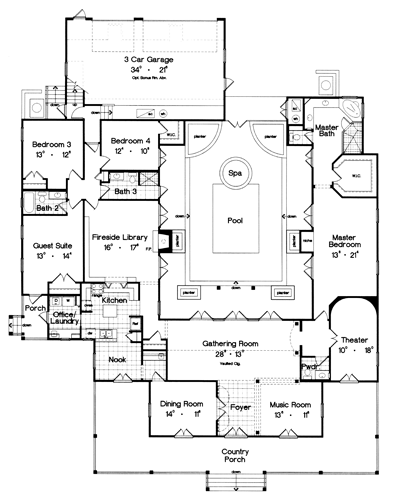

First Floor Plan:
First Floor Plan image of James Buchanan House Plan


Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:77' 4"
Depth:99' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Cottage
Southern
Country
  FACADE
Siding
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:3386 Sq. Ft.
Total: 3386 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:765 Sq. Ft.
Porch:781 Sq. Ft.
Patio:547 Sq. Ft.
Bonus Room:444 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:3
  FOUNDATION
Slab (Standard)
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Second Floor Ceiling:8
Maximum House Height:25' 4"
  FRAMING INFORMATION
Roof Framing:Truss
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:4/12
  INSULATION
Exterior Wall:11
Interior Wall:0
Ceiling:30
Floor:0
  ROOM INFORMATION
Bedroom 212' 4" X 10' 8
Bedroom 313' 0" X 12' 6
Bedroom 4 / Guest13' 0" X 14' 4
Dining Room14' 2" X 11' 8
Kitchen12' 4" X 12' 6
Laundry Room6' 8" X 9' 4
Library16' 0" X 17' 8
Master Bath15' 10" X 18' 10
Master Bedroom13' 8" X 21' 4
Music Room13' 8" X 11' 8
Nook10' 0" X 8' 2
Theater10' 0" X 18' 0
  KEY FEATURES
3 & 1/2 Baths
3 Car Garage Rear Entry
4 Bedrooms
Arches
Attached
Bedrooms Volume Ceiling - 10 feet
Built - In Planters / Around Pool
Built in Media Center
Built-in Niches
Butler's Pantry
Coat Closet
Covered Front Porch
Decorative Interior Columns
Family Room
Fireside Library
Formal Dining Room - 10' Ceiling
Gathering Room
Grand Master Suite
Guest Suite
Home Office/Computer
Kitchen Island
Laundry 1st Fl
Library/Media Room
Master Bath - Separate Tub and Shower
Master Bdrm Main Floor
Master Bedroom - 10' ceiling
Music Room
Nook / Breakfast Area
Optional Bonus Room Over Garage
Powder Room
Split Bedrooms
Theater
Unique Pool / Spa
Vaulted/Volume Ceilings
Walk-in Closet
Wraparound Porch
Pricing Options
Included with your plans a value of more than $300
FREE shipping. Complimentary ground shipping within the continental U.S. ... a $25 value
FREE design consultation with the architect or designer of your house plan about plan modifications you may be considering ... a value of $200 or more
FREE modification quotes on any plan ... a $50 value
FREE Home Building Guide to assist you throughout the building process, featuring 10 worksheet organizers to help you make sense of your building project and save you thousands of dollars ... a $25 value
FREE Product Information Kit, showcasing new and innovative products for your new home ... a $10 value
Available Plan Packages
Plan Packages: Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, structural information, cross sections, roof plans, cabinet layouts and elevations, as well as general specifications. They contain virtually all of the information required to construct your home.

$99.00   Study Plans
Study Plans are an enlargement of the floor plan artwork usually at 1/4" = 1'-0" or less and the 4 elevations at a reduced scale. An enlargement of the Front Rendering is also included. No technical construction data included. If you purchase an HDS study plan and upgrade to an HDS reproducible plan purchase we will credit your account the $99.00 study plan price. You are not authorized to construct this home from a study set.

$790.00   FIVE SETS OF BONDPRINTS
Minimal construction package. If you need to make modifications or additional prints it is strongly suggested that you purchase reproducibles. All Bondprints are stamped with red Copyright notices. A 5 set purchase allows the buyer to build this home one (1) time only provided the buyer has purchased a sufficient quantity of prints to complete the project. Please note that some States (like Florida) and code enforcement jurisdictions my require the plans to be signed and sealed by a local engineer or design professional. It is strongly suggested that reproducibles or cad files be purchased for this purpose.

$1,000.00   REPRODUCIBLES
Reproducible allow you to make changes to the plans and easily make copies for bidding & construction. Because of the ease of duplication reproducible purchases are final. Once the package seal is broken and or the package is opened the reproducible purchase is final and the plans cannot be returned. A Limited Copyright Release Authorization is included with your reproducible purchase allowing for modifications and reproduction for the construction of 1 (one) residence. Note: Reproducibles are printed on Bond material.

$1,000.00   PDF File Package
"Your Best Value" PDF files provide you printable electronic version of our construction documents. They work just like reproducibles except they are more convienent and you don't have shipping cost to worry about. We email the files to you. You can print the size prints you need when you need them. The files come with a "Limited Use License" for a single build just like reproducibles. Multi-Build licenses are available for additional fee's.

$2,000.00   CAD FILES
Cad files are not available for all plans. Please contact customer service to ensure availablility. Cad files are the easiest file form to allow modifications fo plans or for your Architect or Engineer to adjust the plans to your specific location and code requirements. You could recognize significant savings in using cad drafting verses the old hand drafting on reproducibles. If the files are available a contract will have to be initiated prior to release of cad files. All sales are for a one time build, additional builds can be purchased by contacting customer service.
Plan Foundations

$0.00Slab (Standard)
Slab foundation is standard on most HDS plans, Basements and crawl spaces are available as an option for $675.00 each depending on the complexity of the plan, call or email to verify price. Complex or large basement or crawl space plans 3000 sq.ft. or more run approx. $0.35 / sq. ft. based on total foundation area.
Plan Options

$45.00Additional sets
Only applies to Full Plan Purchases, does not apply to Study Plans.
Quantity

$15.00Mirror Reverse
Plan printed in reverse all text will be backwards, it is suggested that at least one set be printed right reading so as to understand what is written on the plan such as notes and dimensions. Full reverse plans are available by phoning our office at 1-800-771-5444 and are based on the following rates $675.00 for a one story under 3000 sq.ft., $700.00 for a one story over 3000 sq.ft., $685.00 for a two story under 3000 sq.ft., $800.00 for a two story over 3000 sq.ft. Full reverse only available with reproducible or cad file purchase.
Quantity

$45.00Builder's sales flyer
A standard single 8 1/2 X 11 sheet flyer with Rendering and Floor plan. Square footage, and outside dimensions listed. Room at bottom for your company logo.

$75.00Builder's Marketing Package
High contrast black and white, camera ready artwork; front elevation rendering and floor plan, along with a validated limited copyright release.
