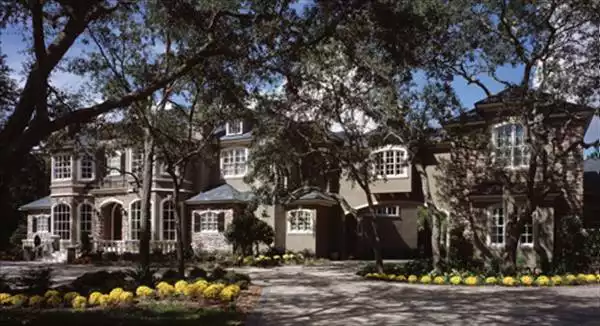

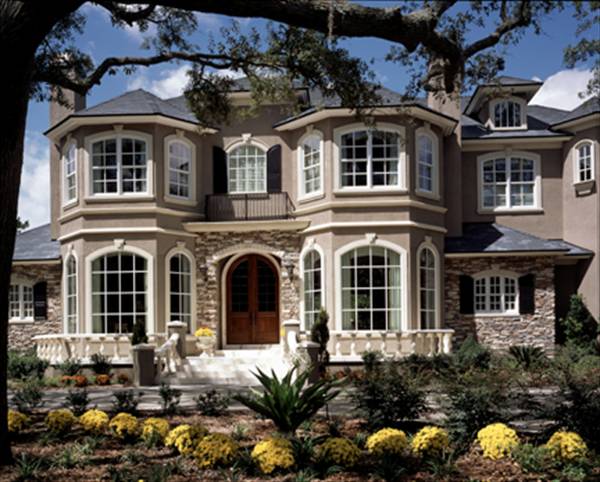

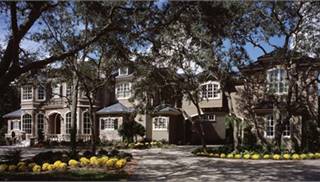

  1. Front Exterior

    Front Exterior
  2. Front Porch

    Front Porch

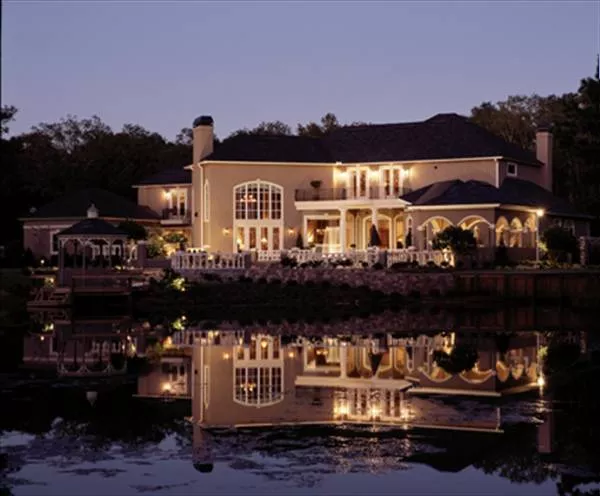

  3. Rear Exterior

    Rear Exterior

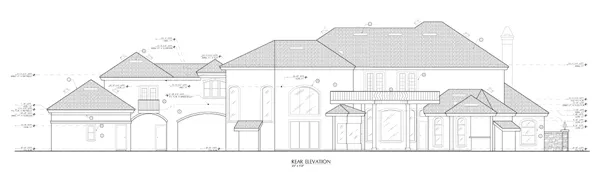

  4. Rear Elevation

    Rear Elevation

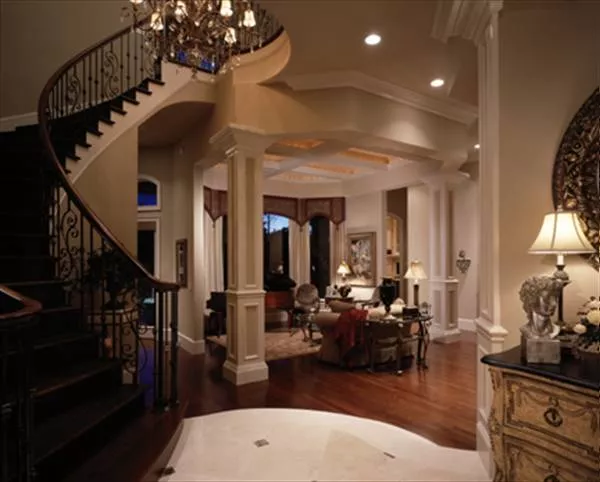

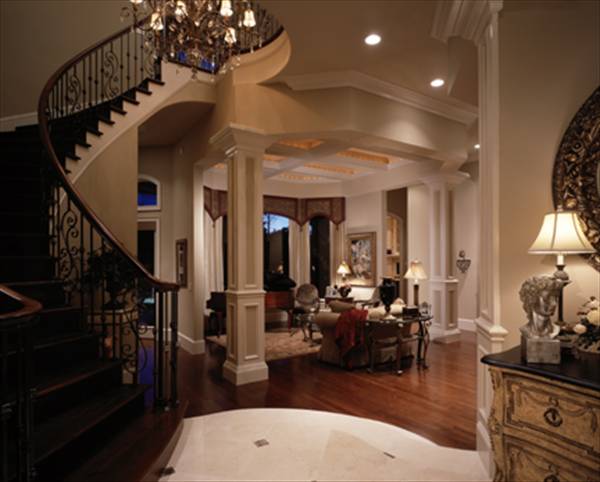

  5. Living Room

    Living Room

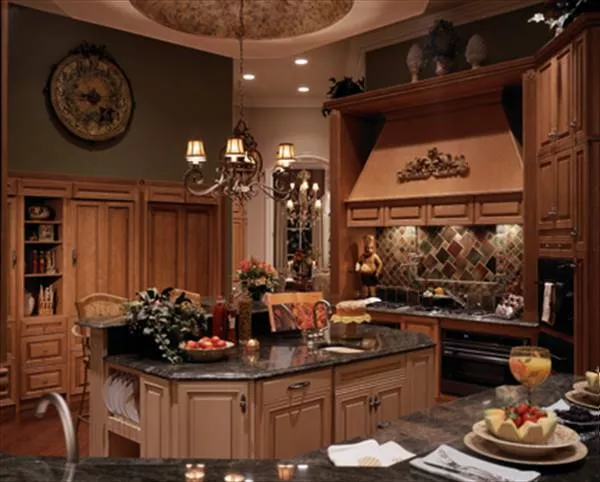

  6. Kitchen

    Kitchen

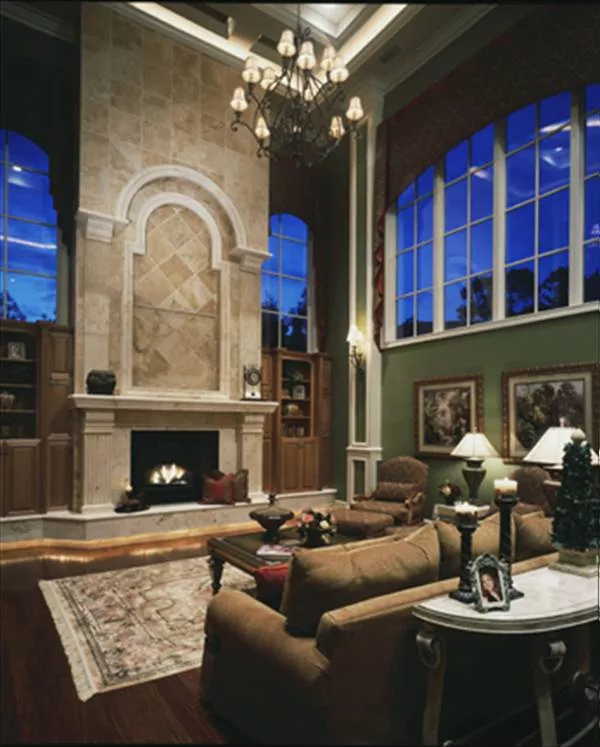

  7. Family Room

    Family Room

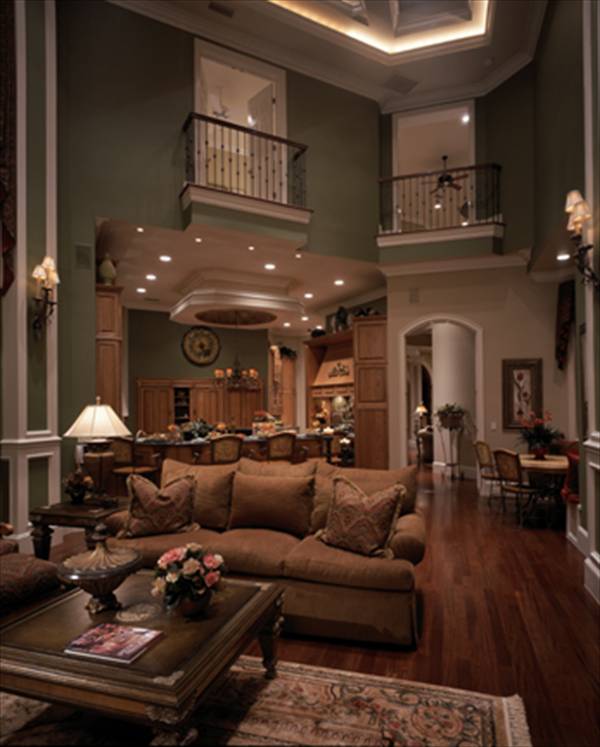

  8. Family Room B

    Family Room B

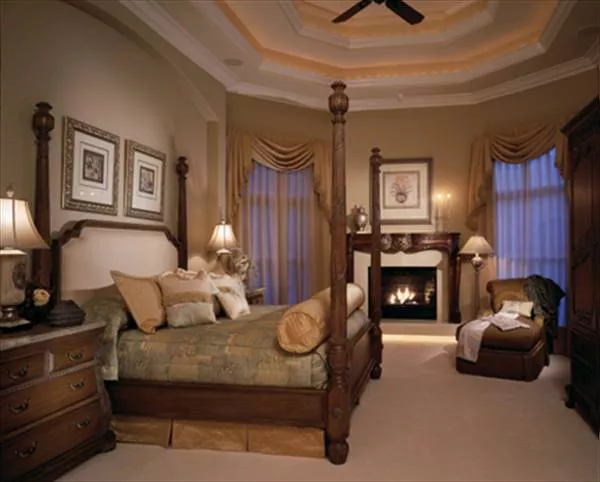

  9. Master Bedroom

    Master Bedroom

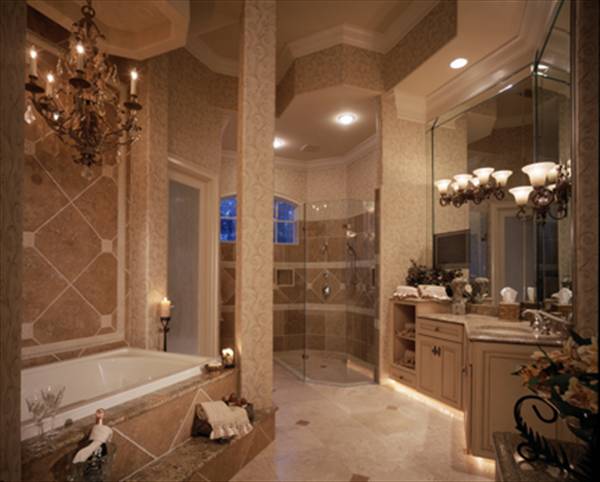

  10. Master Bath

    Master Bath

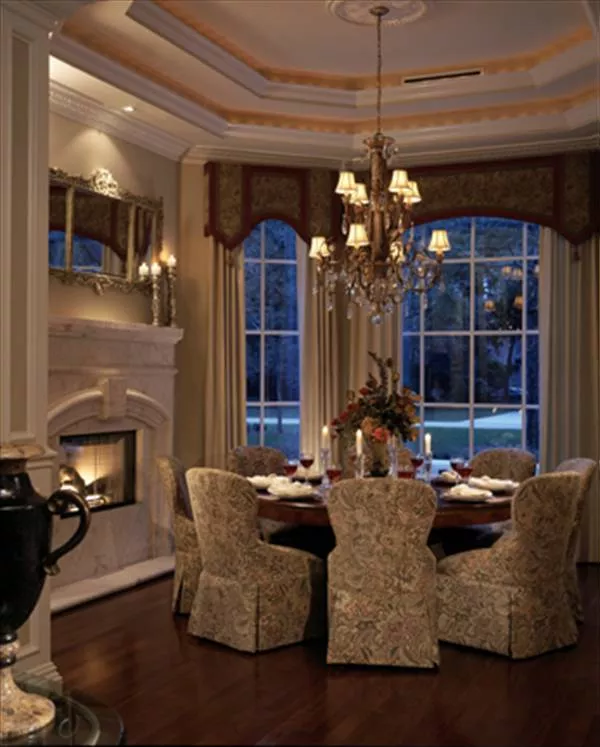

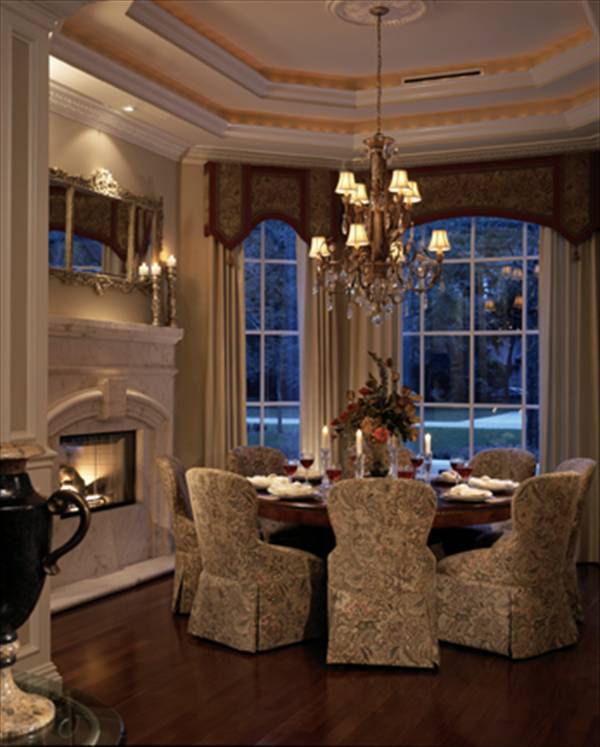

  11. Dining Room

    Dining Room
  12. First Floor Plan

    First Floor Plan
  13. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Two symmetrical turrets make this facade commanding, yet elegant. Visitors are greeted by a beautiful circular stair outlining a two-story rotunda covered with a lighted domed ceiling. Stepping down from the foyer, colums frame a panoramic view through the open living room to the pool area.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

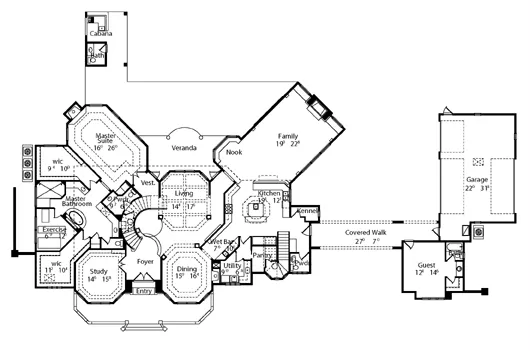

First Floor Plan

First Floor Plan
All images copyrighted by designer.

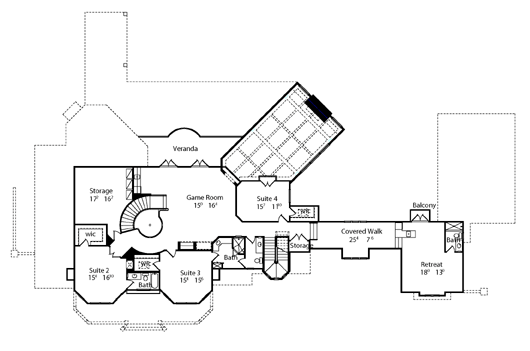

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #6509: Willow Manor

Heated Area: 6,814 Sq. Ft.
First Floor: 3,895 Sq. Ft.
Second Floor: 2,562 Sq. Ft.
Width: 143 Ft.    Depth: 86 Ft. 11 In.
Bedrooms: 6           Bath: 5.5
Garage: 3
Styles: Mediterranean, Southern
Foundation: Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF Bid Set!  $600.00
 FIVE SETS OF BONDPRINTS  $1,800.00
 REPRODUCIBLES  $2,300.00
 PDF File Package PDFs Now!   $2,300.00
 CAD FILES  $4,600.00
Foundation Options
 Slab  $0.00
Plan Options
 Additional sets   $45.00
 Mirror Reverse   $15.00
 Builder's sales flyer   $45.00
 Builder's Marketing Package   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
143' 0"
Width:
86' 11"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Mediterranean
Florida
Southern
European
French Country
Pet Lovers
FACADE
Stucco/Stone
NUMBERS OF ROOMS
6
Bedrooms:
5
Full Baths:
2
Half Baths:
FINISHED SQUARE FOOTAGE
3,895 Sq. Ft.
Main Level:
2,562 Sq. Ft.
Upper Level:
6,814 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
697 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
13
First Floor Ceiling:
10
Second Floor Ceiling:
FRAMING INFORMATION
Slab
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
8:12
Primary:
INSULATION (R)
5
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
15' 0" X 16' 4"
Dining Room
19' 0" X 22' 8"
Family Room
15' 0" X 16' 4"
Game Room
22' 0" X 31' 8"
Garage
12' 4" X 14' 6"
Guest Room
19' 1" X 12' 4"
Kitchen
14' 4" X 17' 6"
Living Room
16' 0" X 26' 0"
Master Bedroom
9' 2" X 6' 6"
Powder Room
18' 0" X 13' 0"
Retreat
17' 2" X 16' 2"
Storage
14' 6" X 15' 8"
Study
15' 4" X 16' 10"
Suite 2
15' 4" X 15' 6"
Suite 3
15' 7" X 11' 10"
Suite 4
9' 0" X 6' 8"
Utility Room
7' 6" X 10' 0"
Wet Bar
KEY FEATURES
2 Story Volume
5 Full Baths
Arches
Breezeway
Butler's Pantry
Covered Rear Porch
Detached
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Formal Dining Room
Formal LR
Foyer
Guest Suite
His and Hers Master Closets
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Master Bath has Exercise Area
Master Bdrm Main Floor
Master Suite
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Porte Cochere
Powder Room
Rear Porch
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Wet Bar
