WATERVILLE House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

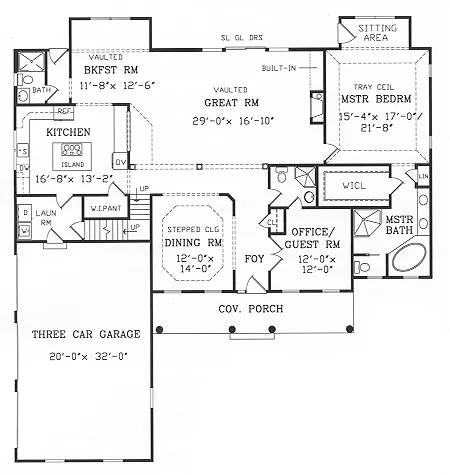

First Floor Plan

First Floor Plan image of WATERVILLE House Plan
All images copyrighted by designer.

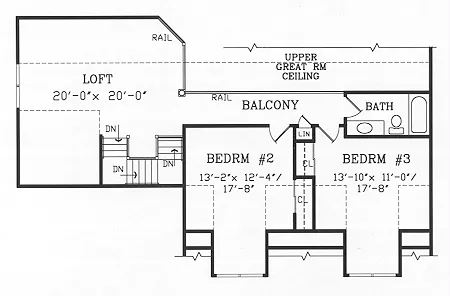

Second Floor Plan

Second Floor Plan image of WATERVILLE House Plan
All images copyrighted by designer.





Plan: THD-JAA-3708
Heated Area: 3204 Sq. Ft.
First Floor: 2196 Sq. Ft.
Second Floor: 1008 Sq. Ft.
Width: 62 Ft. 4 In.    Depth: 65 Ft. 10 In.
Bedrooms: 4           Bath: 4
Garage: 3
Styles: Cape Cod, Country
Foundation: Basement, Crawl Space
Designer Notes:
Learn more about the amenities and key features of WATERVILLE House Plan.

Available Packages
 PDF BID SET  $795.00
 Four Set Package  $905.00
 Eight Set Package  $1,025.00
 PDF Construction Set - Single Use  $1,125.00
 Reproducible Vellum Set  $1,160.00
 CAD FILE - single use  $1,695.00
Foundation Options
 Crawl Space  $0.00
 Basement  $150.00
Plan Options
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $350.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:62' 4"
Depth:65' 10"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Cape Cod
Country
Farm House
  FACADE
Owner's Choice
OwnersChoice
OwnersChoice
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:4
  FINISHED SQUARE FOOTAGE
Main Level:2196 Sq. Ft.
Upper Level: 1008 Sq. Ft.
Total: 3204 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:667 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:3
  FOUNDATION
Basement
Crawl Space
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9'-6"
Second Floor Ceiling:9'-6"
Maximum House Height:26' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9/ 12
  ROOF LOAD
Live:30
Dead:10
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
4 Baths
4 Bedrooms
Attached
Dining Room
Fireplace
Formal Dining Room
Front Porch
Gourmet Kitchen
Great Room
  KEY FEATURES
Guest Room
Home Office
In-law Suite
Kitchen Island
Loft / Study
Master Bdrm Main Floor
Master Sitting Area
Special Ceiling Treatments
Vaulted Ceilings
