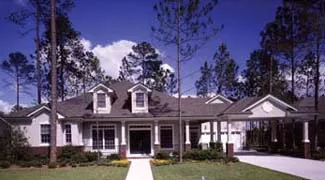

  1. Front Rendering

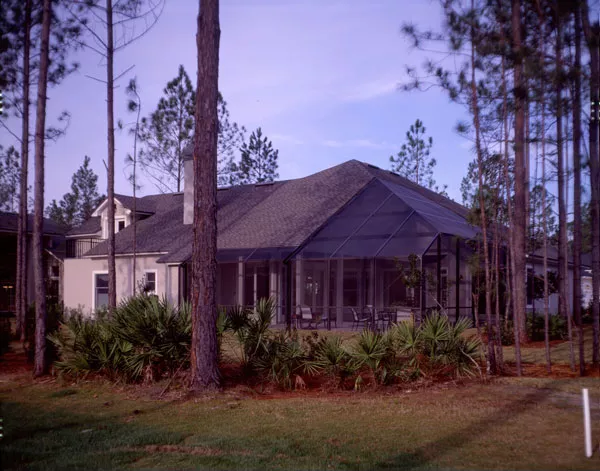

  2. Rear Exerior

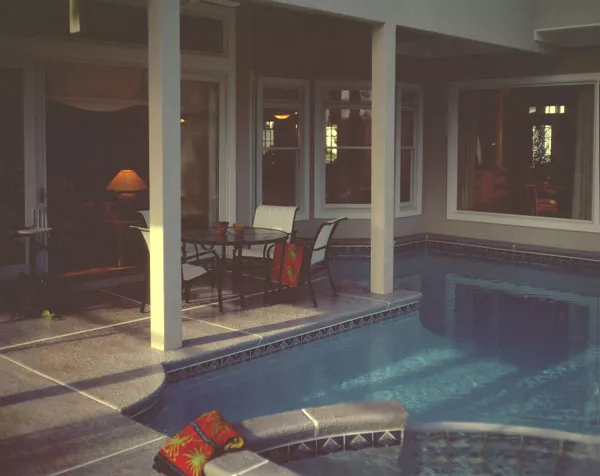

  3. Patio

  4. Dining Room

  5. Kitchen

  6. Master Bedroom

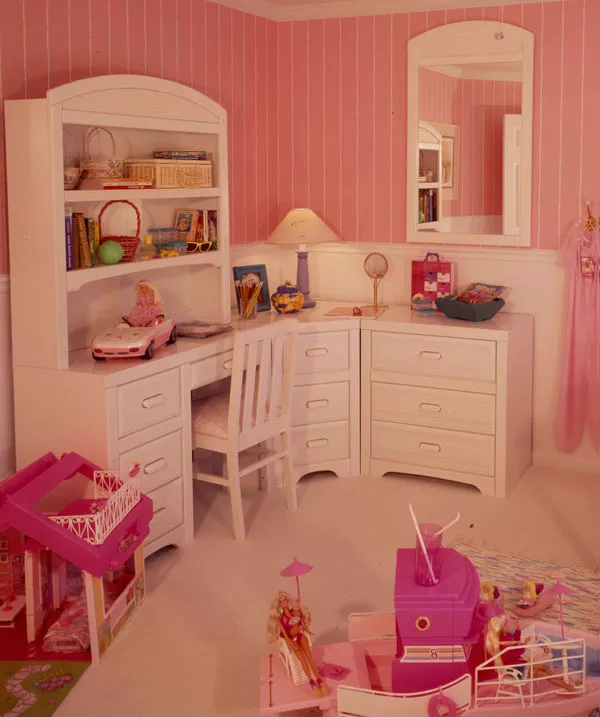

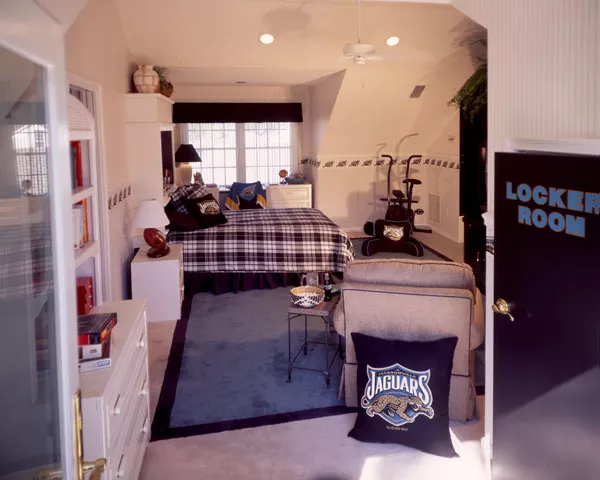

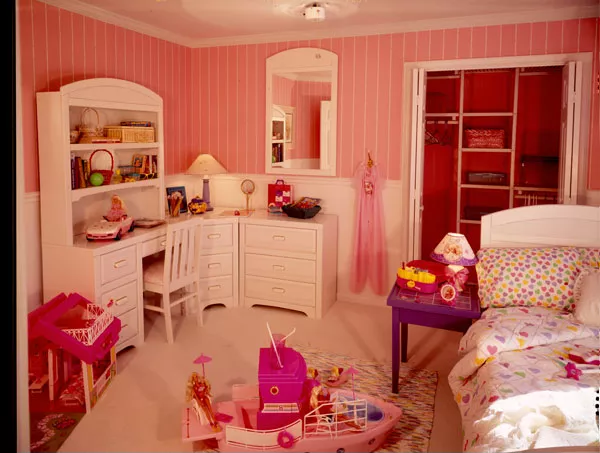

  7. Bedroom (Not Master)

  8. Bedroom (Not Master)

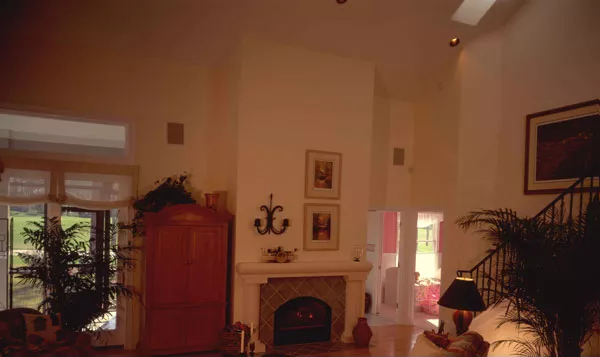

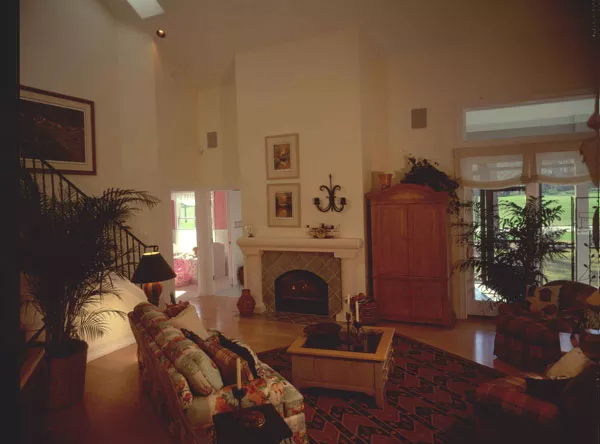

  9. Interior Photo

  10. Interior Photo

  11. Interior Photo

  12. Front Exterior

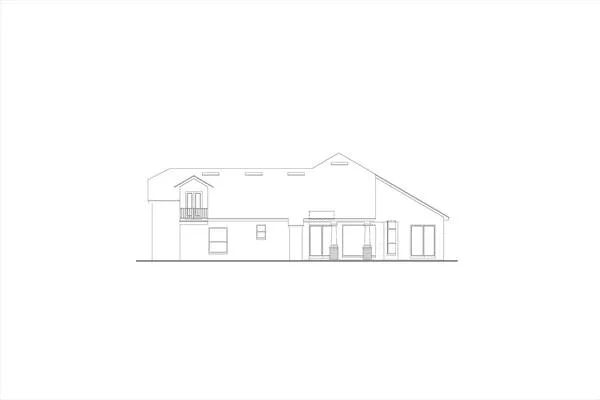

  13. Rear Elevation

  14. First Floor Plan

  15. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The Porte Cochere provides a sheltered entry for visitors and minimizes the visual impact of the garage. I designed this home to embrace a swimming pool and large outdoor living area, giving it appeal for active families and those who like to entertain.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Spring Savings! Take 15% Off All Packages Over $500! See details

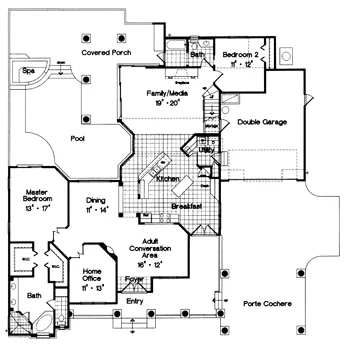

First Floor Plan

First Floor Plan image of Walton
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan image of Walton
All images copyrighted by designer.


Plan #4085: Walton

Heated Area: 2,731 Sq. Ft.
First Floor: 2,270 Sq. Ft.
Second Floor: 461 Sq. Ft.
Width: 70 Ft.    Depth: 73 Ft. 4 In.
Bedrooms: 3           Bath: 3
Garage: 2
Styles: Colonial, Southern
Foundation: Basement Option - 1-2 week turnaround, Crawl Space Option - 1-2 week turnaround, Slab
Available Packages
 Study Plans - PDF  $99.00
 FIVE SETS OF BONDPRINTS  $890.00
 REPRODUCIBLES  $1,200.00
 PDF File Package  $1,200.00
 CAD FILES  $2,400.00
Foundation Options
 Slab  $0.00
 Basement Option - 1-2 week tur...  $450.00
 Crawl Space Option - 1-2 week ...  $450.00
Plan Options
 Additional sets   $45.00
 Mirror Reverse   $15.00
 Builder's sales flyer   $45.00
 Builder's Marketing Package   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
70' 0"
Width:
73' 4"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Concrete
Colonial
Southern
Country
FACADE
Stucco/Stone
NUMBERS OF ROOMS
3
Bedrooms:
3
Full Baths:
FINISHED SQUARE FOOTAGE
2,270 Sq. Ft.
Main Level:
461 Sq. Ft.
Upper Level:
2,731 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
468 Sq. Ft.
Garage:
280 Sq. Ft.
Porch:
402 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Basement Option - 1-2 week turnaround
Crawl Space Option - 1-2 week turnaround
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
25' 4"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
8" Block/Wood
Exterior Wall Framing:
ROOF PITCH
7/12
Primary:
INSULATION (R)
11
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
11' 8" X 12' 4"
Bedroom 2
13' 8" X 26' 0"
Bedroom 3
11' 8" X 14' 0"
Dining Room
19' 0" X 20' 0"
Family Room / Media
11' 0" X 13' 4"
Home Office
18' 4" X 18' 8"
Kitchen / Breakfast Nook
8' 8" X 7' 0"
Laundry Room
16' 8" X 12' 0"
Living Room / Adult Coversation
13' 4" X 13' 0"
Master Bath
13' 4" X 17' 0"
Master Bedroom
KEY FEATURES
2 Car Garage / Front Load
2 Story Volume
3 Bedrooms
3 Full Baths
Arches
Attached
Built in Vanity Master Bath
Built-in Niches
Combination Kitchen / Family Room
Covered Front Porch
Covered Patio Screened
Covered Patio with Decorative Columns
Decorative Interior Columns
Family Room Vaulted
Fireplace
Formal Dining Room - 10' Ceiling
Formal Living Room - 10' Ceiling
Grand Entry
His and Hers Master Closets
Home Office
Kitchen - Nook Volume Ceilings
Kitchen Island
Large Laundry Room
Library/Media Rm
Nook / Breakfast Area
Optional Summer Kitchen
Porte Cochere
Rear Porch
Separate Tub and Shower
Storage Walk-In Closet
Unique Pool / Spa
Vaulted Ceilings
Walk-in Pantry
Walk-in Storage in Garage
