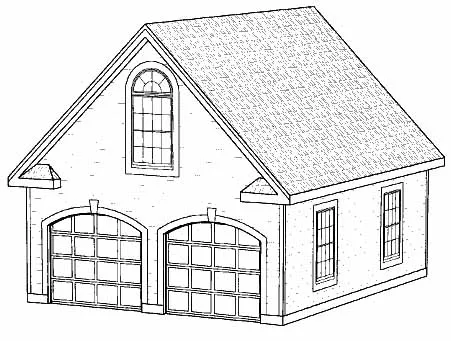

  1. Front Rendering

    Front Rendering
  2. Front Rendering

    Front Rendering

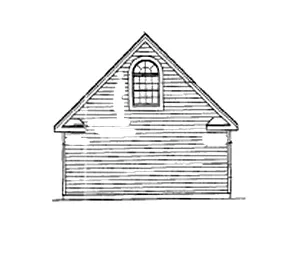

  3. Rear Elevation

    Rear Elevation
  4. First Floor Plan

    First Floor Plan
  5. Bonus Room

    Bonus Room
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This attractive and compact structure provides a two car garage and a second floor attic that can be finished someday to serve as an office, a studio or rec room.
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >
© copyright by designer

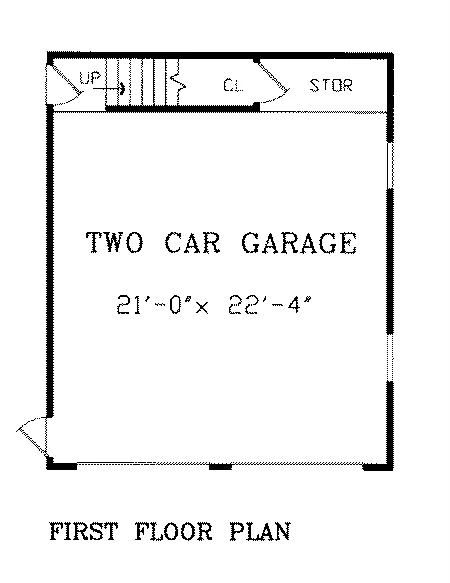

First Floor Plan:

First Floor Plan
© copyright by designer

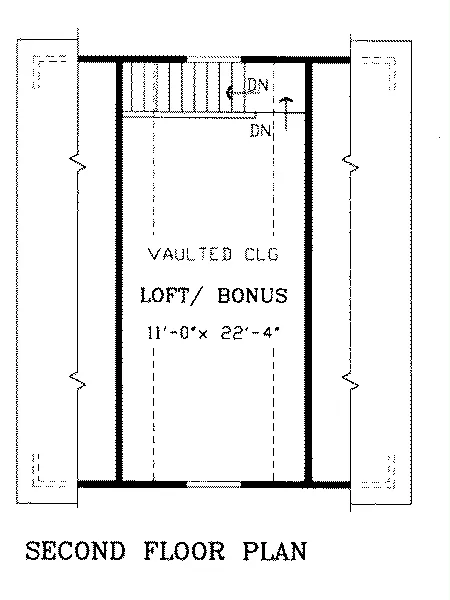

Bonus Room:

Bonus Room


Plan #5136: VICTORIAN GARAGE

Heated Area: 563 Sq. Ft.
First Floor: 563 Sq. Ft.
Bonus: 268 Sq. Ft.
Width: 21 Ft. 8 In.    Depth: 26 Ft.
Garage: 2
Foundation: Slab Foundation

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $175.00
 Four Set Package  $225.00
 Eight Set Package  $275.00
 PDF Construction Set - Single Use PDFs Now!   $325.00
 Reproducible Vellum Set  $350.00
 CAD FILE - single use  $475.00
Foundation Options
 Slab Foundation PDFs Now! available   $0.00
Plan Options
 Additional Set   $50.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $150.00
 High Wind Structural Drawings   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
21' 8"
Width:
26' 0"
Depth:
Garage
Dwelling Number:
2nd Floor
Bonus Access:
FINISHED SQUARE FOOTAGE
563 Sq. Ft.
Main Level:
563 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
268 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Slab Foundation
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
21' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12
Primary:
ROOF LOAD
30
Live:
7
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Detached
KEY FEATURES
No Porch
