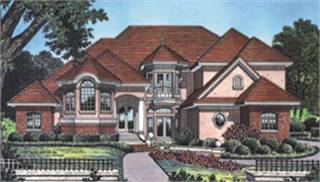

  1. Front Rendering

  2. Front Rendering

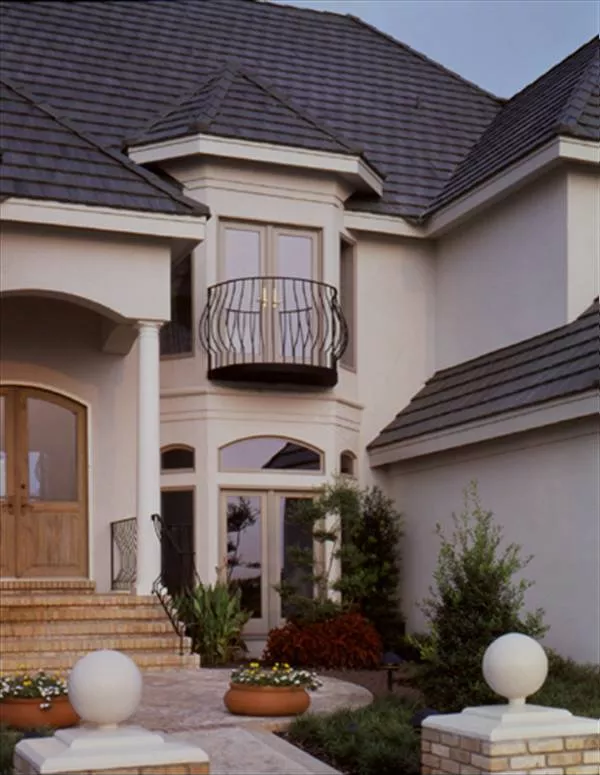

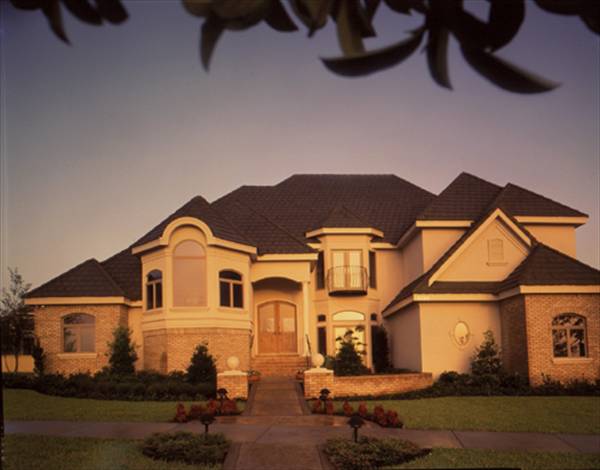

  3. Front Exterior

  4. Front Exterior

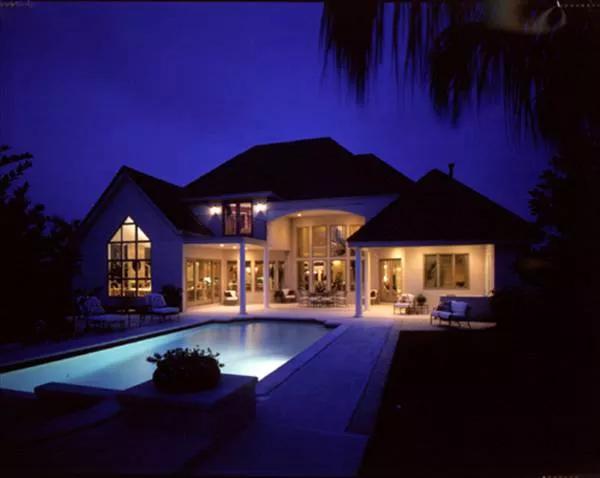

  5. Rear Exterior

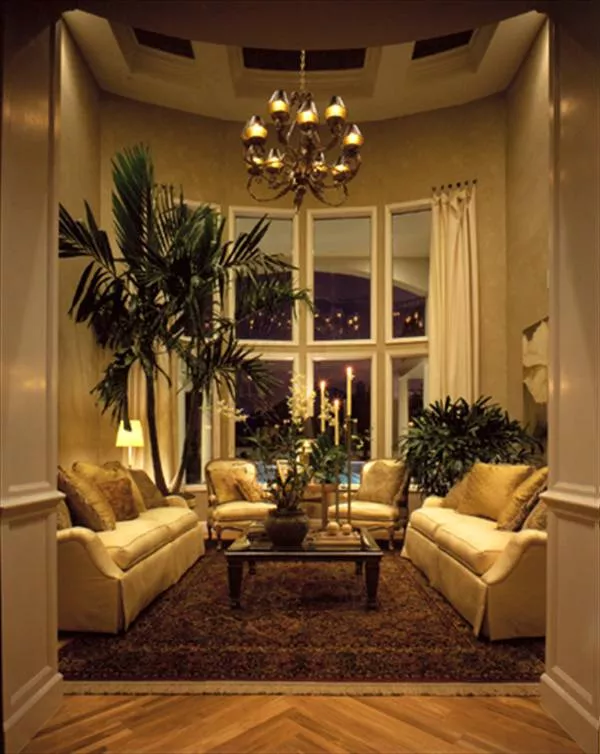

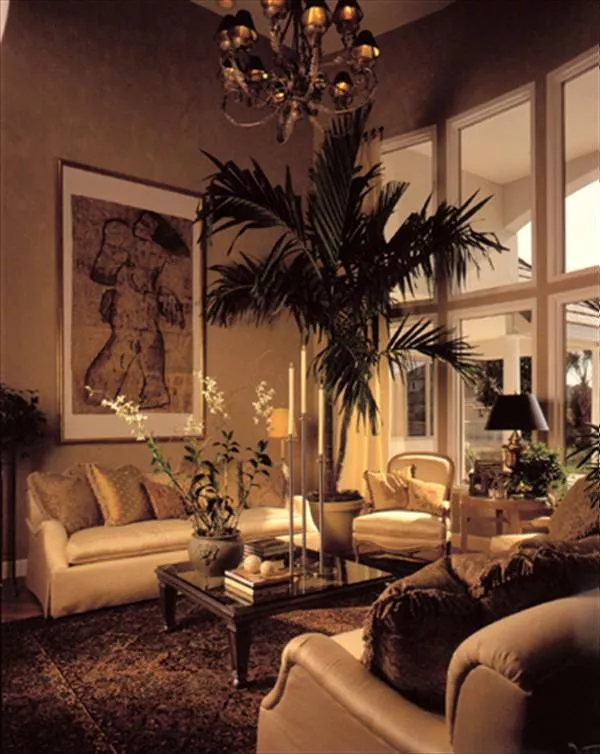

  6. Living Room

  7. Living Room

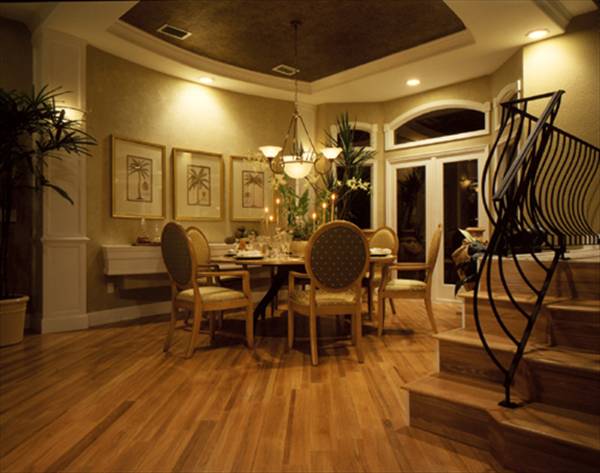

  8. Dining Room

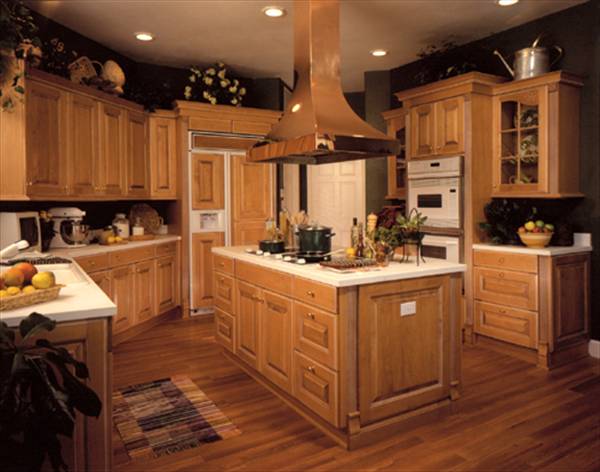

  9. Kitchen

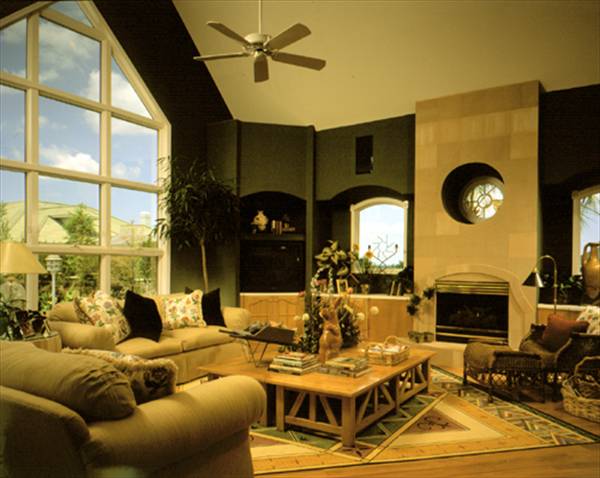

  10. Great Room

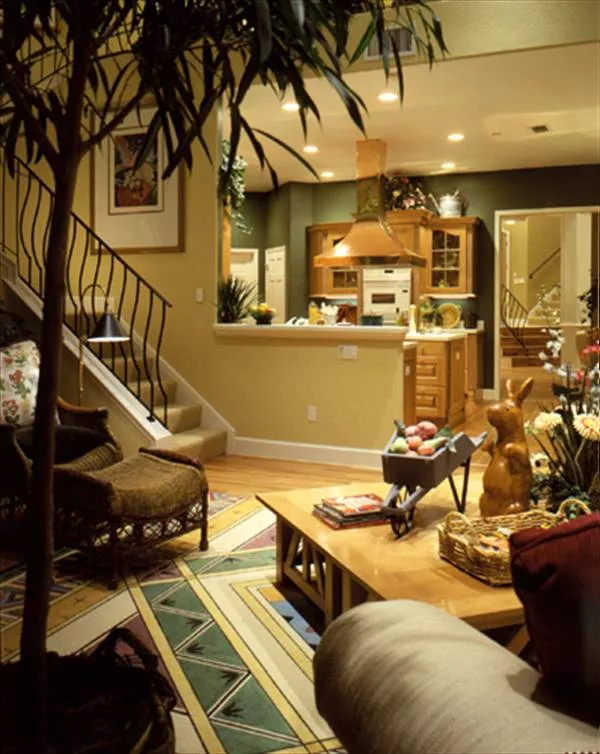

  11. Great Room

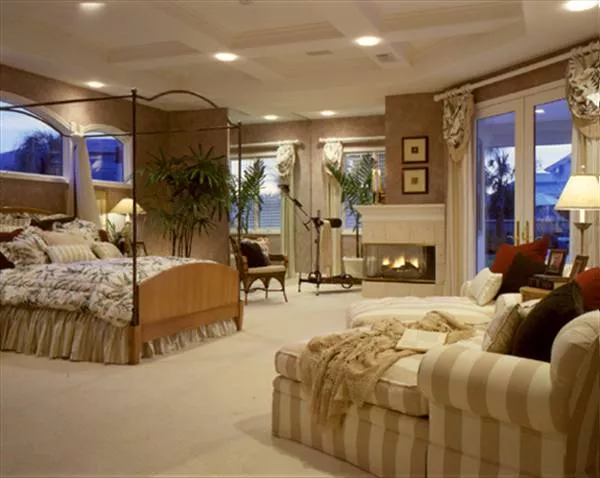

  12. Master Bedroom

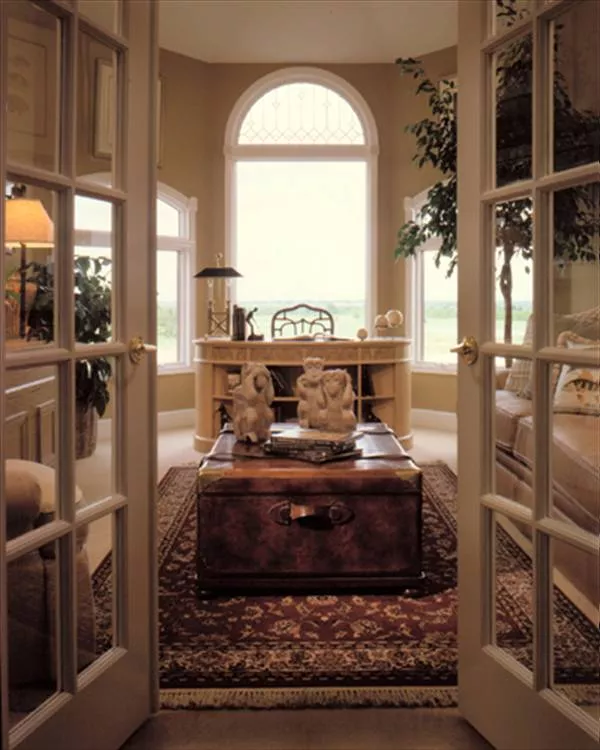

  13. Bedroom/Study

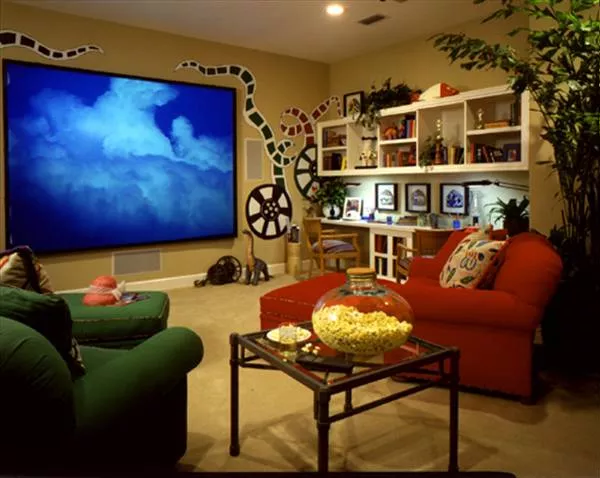

  14. Bonus Room

  15. Front Rendering

  16. First Floor Plan

  17. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
From its classic country french facade and its multi-level floor plan, to its intricate interior architecture, this magnificent home is destined to be a best seller. Not many designs can compare with this one of a kind plan.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

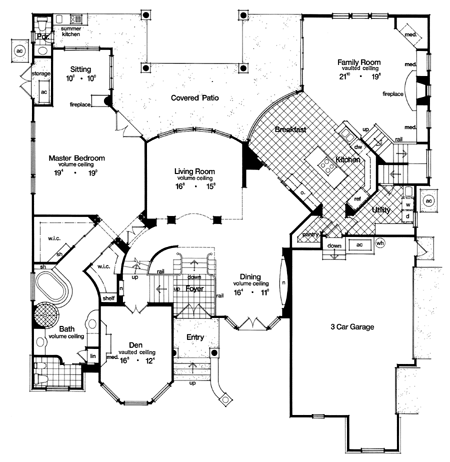

First Floor Plan

First Floor Plan image of Versailles
All images copyrighted by designer.

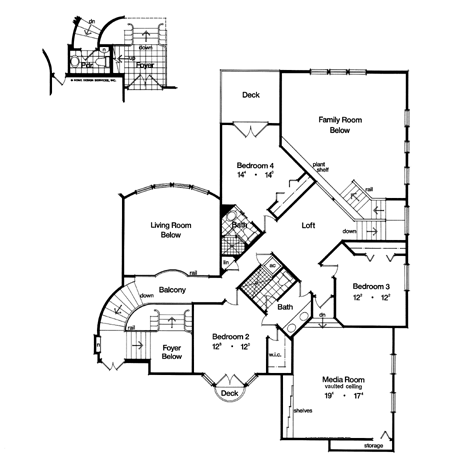

Second Floor Plan

Second Floor Plan image of Versailles
All images copyrighted by designer.


Plan #4152: Versailles

Heated Area: 4,407 Sq. Ft.
First Floor: 2,935 Sq. Ft.
Second Floor: 1,472 Sq. Ft.
Width: 69 Ft. 4 In.    Depth: 76 Ft. 8 In.
Bedrooms: 4           Bath: 3.5
Garage: 3
Styles: Beach, European
Foundation: Slab
Available Packages
 Study Plans - PDF  $99.00
 FIVE SETS OF BONDPRINTS  $1,190.00
 REPRODUCIBLES  $1,400.00
 PDF File Package  $1,400.00
 CAD FILES  $2,800.00
Foundation Options
 Slab  $0.00
Plan Options
 Additional sets   $45.00
 Mirror Reverse   $15.00
 Builder's sales flyer   $45.00
 Builder's Marketing Package   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
69' 4"
Width:
76' 8"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
EXTERIOR STYLE
Traditional
Beach
European
French Country
Mediterranean
Florida
FACADE
Brick
Stucco
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
2
Half Baths:
FINISHED SQUARE FOOTAGE
2,935 Sq. Ft.
Main Level:
1,472 Sq. Ft.
Upper Level:
4,407 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
687 Sq. Ft.
Garage:
55 Sq. Ft.
Storage:
63 Sq. Ft.
Porch:
56 Sq. Ft.
Deck:
578 Sq. Ft.
Patio:
GARAGE
Side
Garage Location:
3
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
8
Second Floor Ceiling:
37' 4"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
INSULATION (R)
11
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
12' 8" X 11' 10"
Bedroom 2
12' 2" X 12' 4"
Bedroom 3
14' 4" X 14' 0"
Bedroom 4
12' 4" X 16' 8"
Den
12' 9" X 14' 0"
Dining Room
21' 8" X 21' 8"
Family Room
23' 2" X 14' 8"
Kitchen / Nook
10' 6" X 8' 8"
Laundry Room
16' 8" X 15' 8"
Living Room
10' 4" X 14' 0"
Loft
11' 4" X 21' 8"
Master Bath
19' 4" X 19' 0"
Master Bedroom
10' 0" X 10' 0"
Master Sitting
19' 0" X 19' 4"
Media Room
KEY FEATURES
2 Story Volume
3 Full Baths / 2 Half Baths
4 Bedrooms
Arches
Attached
Bonus Room
Built - In Shelves Master Closets
Built in Media Center
Built in Vanity Master Bath
Built-in Media - Den
Built-in Niches
Combination Kitchen / Family Room
Covered Patio with Decorative Columns
Covered Rear Porch
Deck
Deck - Bedroom 4
Decorative Interior Columns
Dining Room
Double Vanity Sink
Dual Staircase
Family Room
Family Room Open to Second Floor
Fireplace
Formal Dining Room - 10' Ceiling
Formal Living Room Open to Second Floor
Formal LR
Foyer
Foyer Open to Second Floor
Grand Master - Sitting Area
His and Hers Master Closets
Home Office
Impressive Columned Entry
Interior Balcony
Kitchen - Nook Volume Ceilings
Kitchen Island
Large Laundry Room
Laundry 1st Fl
Library/Media Rm
Linen Closets
Loft / Balcony
Master Bath / Elegant Spa
Master Bdrm Main Floor
Master Bedroom - 10' ceiling
Master Bedroom - Fireplace
Nook / Breakfast Area
Open Floor Plan
Optional - Bidet' - Master Bath
Optional - Powder Room Second Floor
Peninsula / Eating Bar
Pool Bath
Rear Porch
Separate Tub and Shower
Split Bedrooms
Storage Space
Summer Kitchen
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walk-in Storage
