This spacious three bedroom duplex offers many great features, in an easy-to-construct package. Large bedrooms and closets. Expansive living and dining room areas for those family and friend "get-togethers". Enjoy the covered porches on both front and rear of house for those weekend cookouts.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

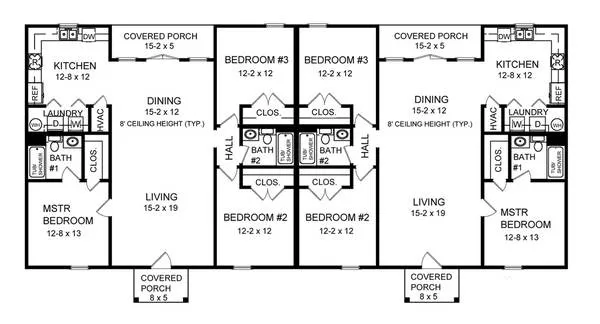

1st Level Floorplan

1st Level Floorplan image of Three Bedroom Duplex
All images copyrighted by designer.


Plan #7085: Three Bedroom Duplex

Total Entire Building: 1,364 Sq. Ft.
Total Living Per Unit: 1,364 Sq. Ft.
Width: 80 Ft.    Depth: 41 Ft.
Bedrooms: 3           Bath: 2
Garage: 0
Styles: Country
Foundation: Crawl Space, Slab
Available Packages
 One Set  $975.00
 Five Sets  $1,035.00
 PDF File Package  $1,150.00
 Vellums  $1,220.00
 CAD files  $1,720.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Materials List   $130.00
 Additional Sets   $60.00
 Right Reading Reverse   $150.00
 Mirror Reverse   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
80' 0"
Width:
41' 0"
Depth:
Duplex
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Country
Ranch
Pet Lovers
Canada
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,364 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
232 Sq. Ft.
Porch:
GARAGE
None
Garage Location:
0
Garage Size:
FOUNDATION
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
21' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
8 in 12
Primary:
ROOF LOAD
30
Live:
10
Dead:
INSULATION (R)
15
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
KEY FEATURES
Covered Front Porch
Covered Rear Porch
Crawlspace
Exercise Room
Front Porch
Great Room
Home Office
Laundry 1st Fl
KEY FEATURES
Master Bdrm Main Floor
None
Open Floor Plan
Rear Porch
Slab
Split Bedrooms
Walk-in Closet
