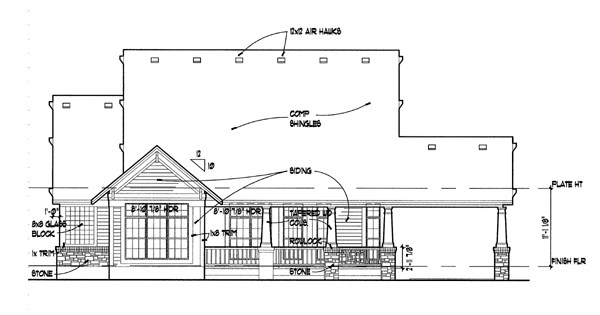

  2. Rear Elevation

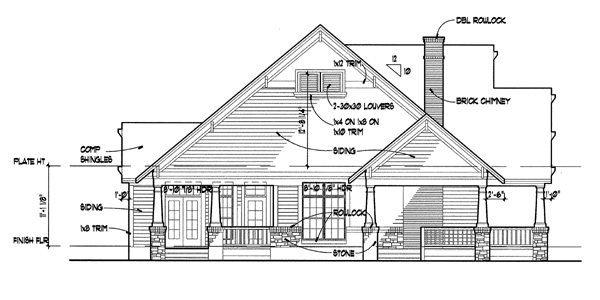

  3. Left Elevation

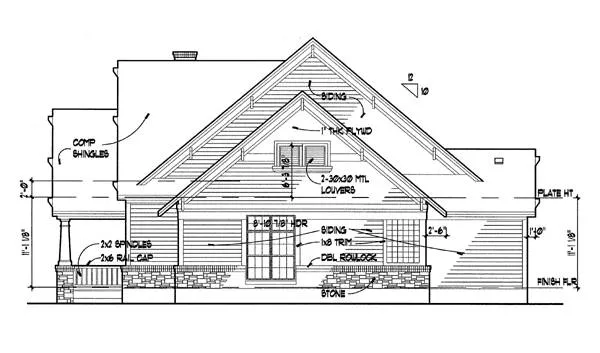

  4. Right Elevation

  5. Kitchen 2

  6. Kitchen

  7. Kitchen 3

  8. Bedroom 1

  9. Covered Porch

  10. Dining Room

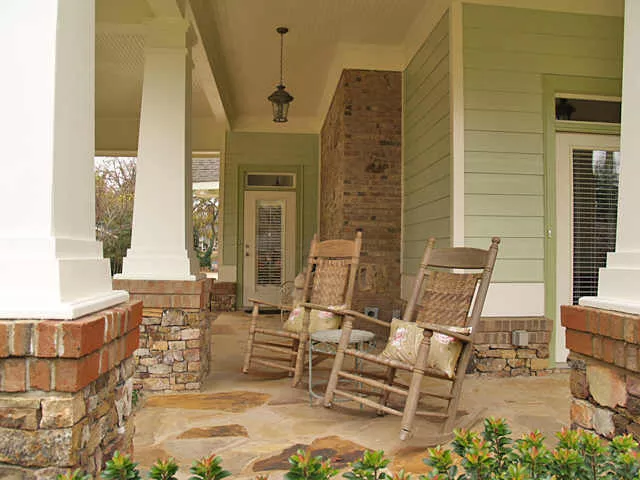

  11. Front Porch

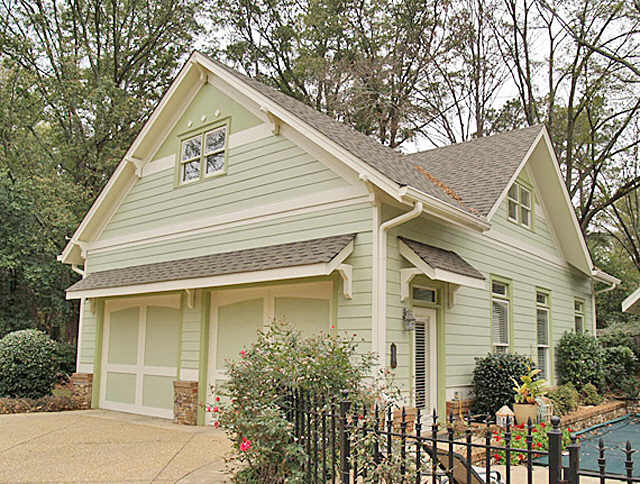

  12. Garage

  13. Living Room

  14. Pool

  15. Pool

  16. Pool

  17. Pool

  18. Pool

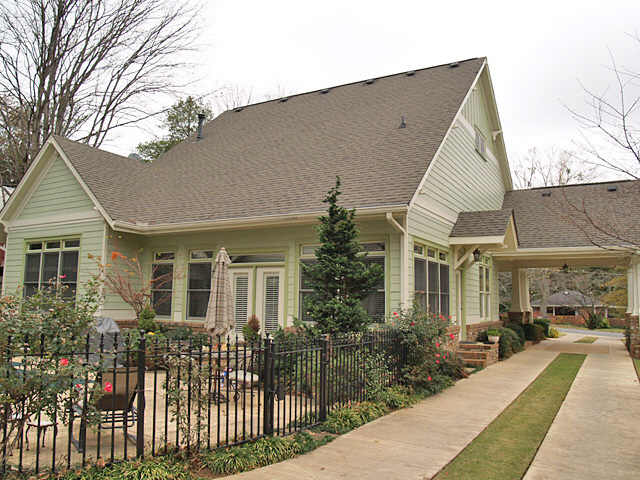

  19. Rear

  20. First Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
CHARMING!!!  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Q.can you build for CO?

A.We are not Builders. We are Publishers who sell house plans for the Designer of the plan. However, you may access our Preferred Builders Listing on our website for a list of Builders in your area.

Save $50 Off Any Plan Through Midnight Tonight! See details >

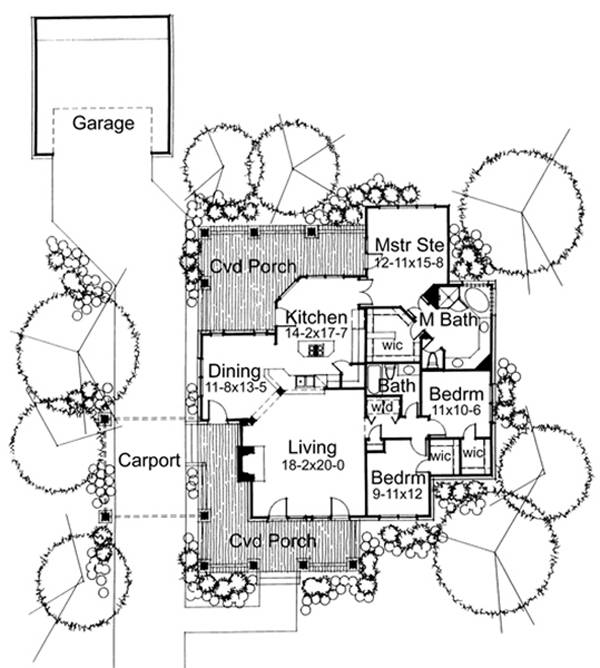

First Floor Plan

First Floor Plan image of The Wharton
All images copyrighted by designer.


Plan #5769: The Wharton

Heated Area: 1,657 Sq. Ft.
First Floor: 1,657 Sq. Ft.
Width: 48 Ft.    Depth: 58 Ft.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Cottage, Craftsman
Foundation: Basement, Crawl Space, Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF Bid Set PDFs Now!   $450.00
 Five Sets  $540.00
 Eight Sets  $630.00
 Vellums  $900.00
 PDF PDFs Now!   $900.00
 AutoCad Files (DWG)  $1,080.00
Foundation Options
 Basement PDFs Now! available   $0.00
 Crawl Space PDFs Now! available   $0.00
 Slab PDFs Now! available   $0.00
Plan Options
 Additional Sets   $50.00
 Materials List   $75.00
 Full Reverse   $100.00
 Mirror Reverse   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
48' 0"
Width:
58' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Cottage
Craftsman
Texas
Tennessee
North Carolina
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,657 Sq. Ft.
Main Level:
1,657 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
282 Sq. Ft.
Garage:
648 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
11
First Floor Ceiling:
30' 8"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
10:12
Primary:
10:12
Gable:
ROOF LOAD
20
Live:
15
Dead:
20
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
11' 0" X 10' 6"
Bedroom 1
9' 11" X 12' 0"
Bedroom 2
14' 2" X 17' 7"
Kitchen
18' 2" X 20' 0"
Living
12' 11" X 15' 8"
Master Suite
KEY FEATURES
11' Ceilings
Covered front and rear porches
Detached
Garden Tub/Shower in Master
Large Living Area
Walk-in Pantry
WIC's in each BR
Wraparound Porch
