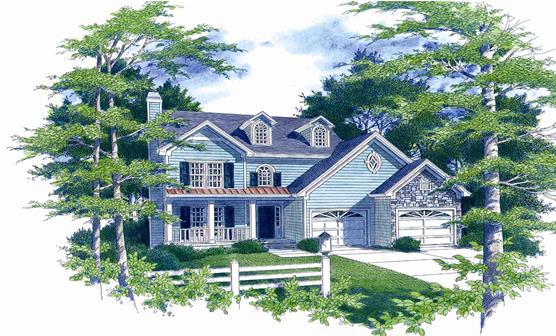

  1. Front Rendering

    Exclusive Plan from The House Designers
    Front Rendering

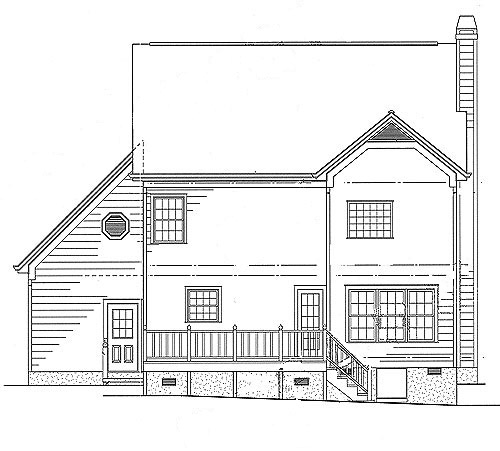

  2. rear elevation

    rear elevation

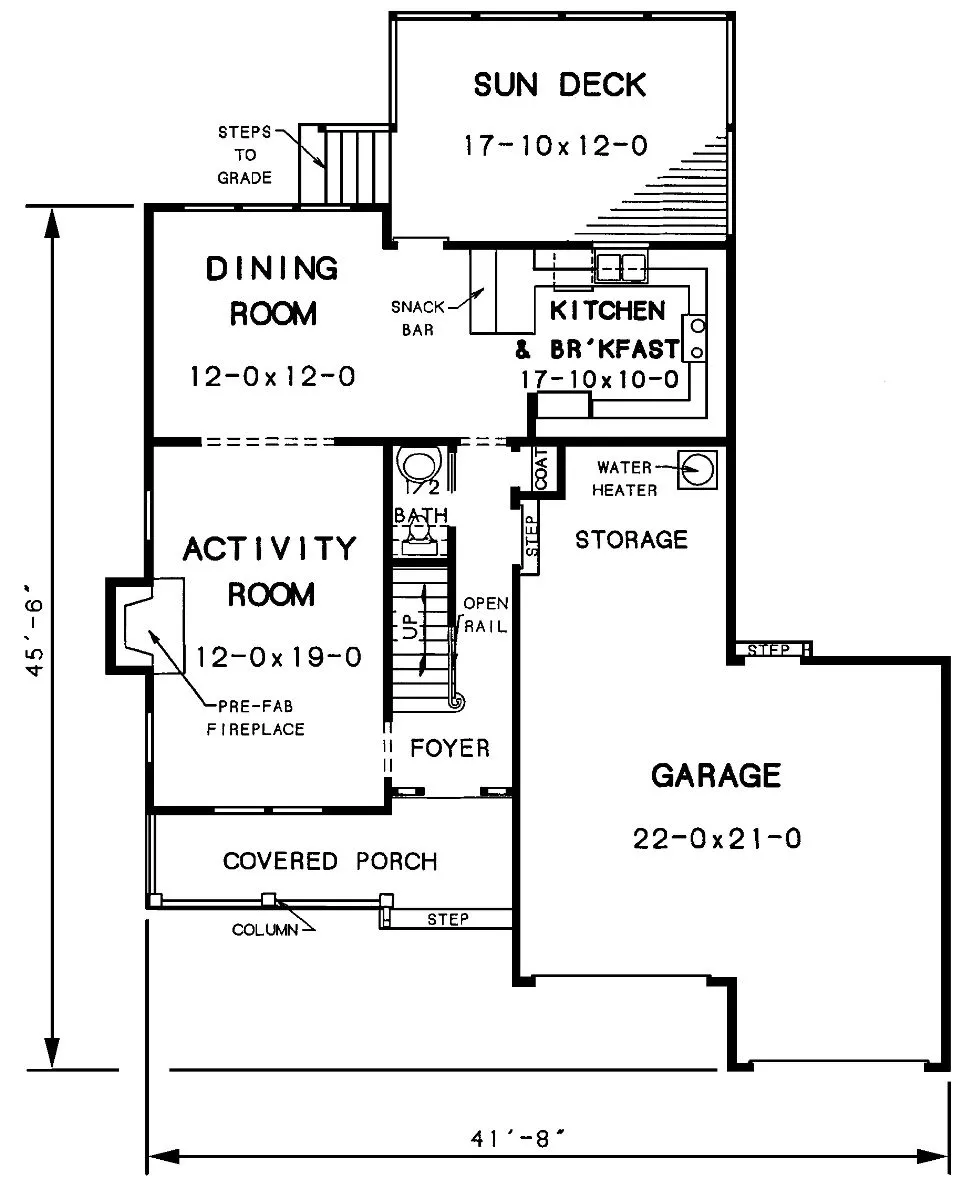

  3. 1st floor plan

    1st floor plan

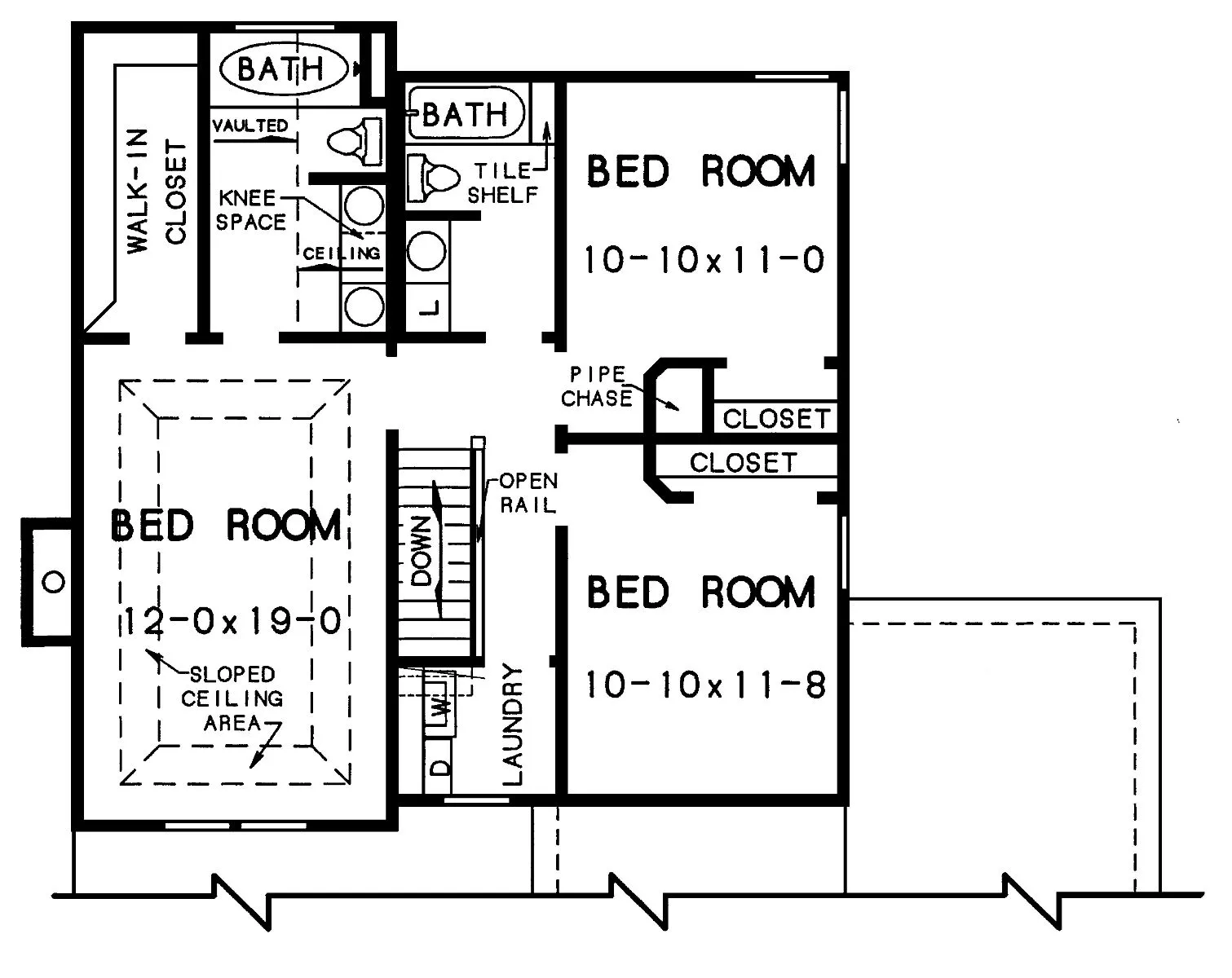

  4. 2nd floor plan

    2nd floor plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Combinations of qualities greet you upon entering this home. The unparalleled great room has dynamic impact because of its size, tray ceiling and centered fireplace. A formal dining room with a bay window merges virtually effortlessly with the great room.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

1st floor plan

1st floor plan
All images copyrighted by designer.

2nd floor plan

2nd floor plan
All images copyrighted by designer.


Plan #3428: The Walton

Heated Area: 1,642 Sq. Ft.
First Floor: 724 Sq. Ft.
Second Floor: 918 Sq. Ft.
Width: 41 Ft. 8 In.    Depth: 45 Ft. 6 In.
Garage: 2
Styles: Cottage
Foundation: Crawl Space, Slab
Available Packages
 Four Sets  $645.00
 Eight Sets  $690.00
 Vellums  $895.00
 PDF File  $895.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $75.00
 Mirror Reverse   $50.00
 Materials List   $90.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
41' 8"
Width:
45' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Bungalow
Cottage
Builders
NUMBERS OF ROOMS
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
724 Sq. Ft.
Main Level:
918 Sq. Ft.
Upper Level:
1,642 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
560 Sq. Ft.
Garage:
102 Sq. Ft.
Porch:
215 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
8
Second Floor Ceiling:
31' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
10/12
Primary:
3/12
Secondary:
ROOF LOAD
20
Live:
10
Dead:
80
Wind:
INSULATION (R)
17
Exterior Wall:
0
Interior Wall:
30
Ceiling:
13
Floor:
KEY FEATURES
Attached
Covered Front Porch
Crawlspace
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
KEY FEATURES
Great Room
Laundry 2nd Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Peninsula / Eating Bar
Slab
Storage Space
Vaulted Ceilings
Walk-in Closet
