This spectacular 1 1/2 story master down blends a luxurious and flexible floorplan with an unforgetable facade to create a simply exquisite home design. The innovative design boasts numerous and unusually sumptuous features in only 2470 sq.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

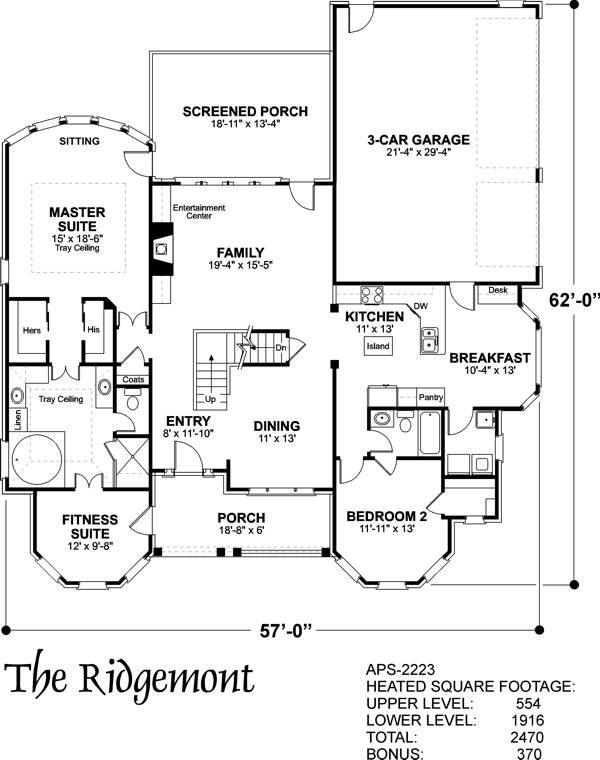

Lower Floorplan

Lower Floorplan image of The Ridgemont
All images copyrighted by designer.

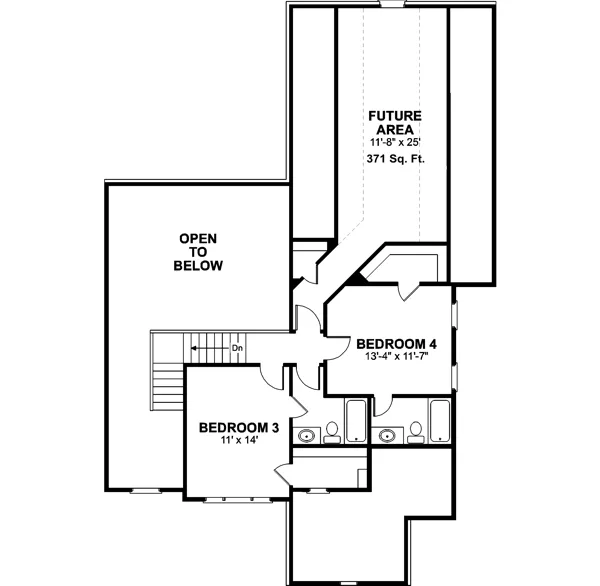

Upper Floorplan

Upper Floorplan image of The Ridgemont
All images copyrighted by designer.

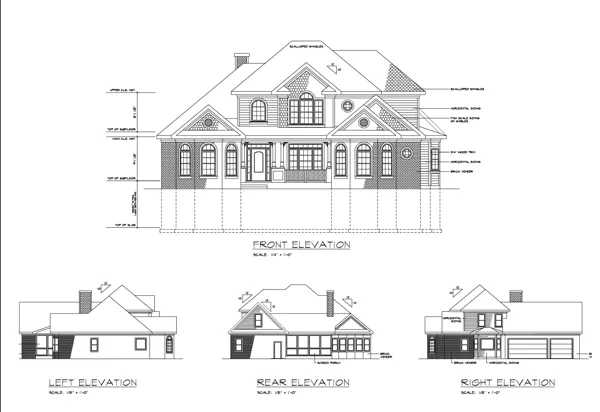

Rear Elevation

Rear Elevation image of The Ridgemont
All images copyrighted by designer.


Plan #6247: The Ridgemont

ENERGY STAR Heated Area: 2,470 Sq. Ft.
First Floor: 1,916 Sq. Ft.
Second Floor: 554 Sq. Ft.
Bonus: 370 Sq. Ft.
Width: 57 Ft.    Depth: 62 Ft.
Bedrooms: 4           Bath: 4
Garage: 3
Styles: Craftsman, Southern
Foundation: Basement, Crawl Space, Slab Foundation (Please allow 2-3 Days for Delivery)

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF Bid Set  $700.00
 PDF File PDFs Now!   $900.00
 Five Sets  $900.00
 Eight Sets  $950.00
 Reproducible Set  $1,000.00
 CAD File  $1,400.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab Foundation (Please allow ...  $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $45.00
 Right Reading Reverse   $175.00
 2x6 Wall Construction-Please allow 2-3 Days for Delivery   $250.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
57' 0"
Width:
62' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
EXTERIOR STYLE
Craftsman
Traditional
Southern
Texas
NUMBERS OF ROOMS
4
Bedrooms:
4
Full Baths:
FINISHED SQUARE FOOTAGE
1,916 Sq. Ft.
Main Level:
554 Sq. Ft.
Upper Level:
2,470 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
370 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab Foundation (Please allow 2-3 Days for Delivery)
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
28' 10"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
10/12
Primary:
ROOF LOAD
30
Live:
90
Wind:
INSULATION (R)
21
Exterior Wall:
0
Interior Wall:
35
Ceiling:
28
Floor:
KEY FEATURES
Attached
KEY FEATURES
Front Porch
