  1. Right Elevation

    Right Elevation
  2. Left Elevation

    Left Elevation

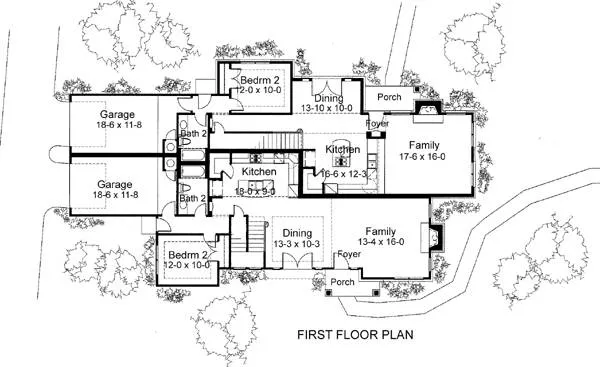

  3. First Floor Plan

    First Floor Plan

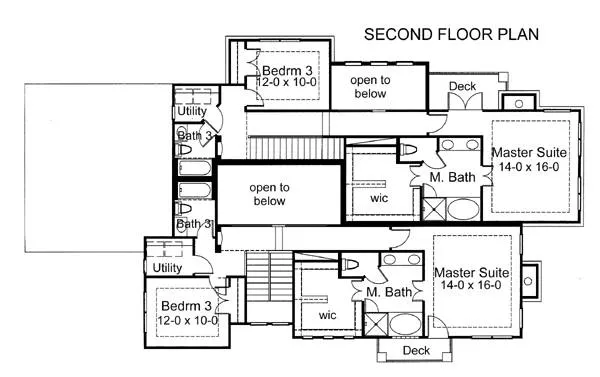

  4. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This plan is brimming with modern urban design. Open and well-planned spaces are what make this plan exceptional. A downstairs bedroom easily converts to a study or a secluded guest room. The gourmet Kitchen is full of every amenity, including a large island.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >
© copyright by designer

First Floor Plan:

First Floor Plan
© copyright by designer

Second Floor Plan:

Second Floor Plan


Plan #6021: The Quinlan

Total Entire Building: 3,940 Sq. Ft.
Total Living Per Unit: 1,975 Sq. Ft.
First Floor: 1,056 Sq. Ft.
Second Floor: 919 Sq. Ft.
Width: 47 Ft. 9 In.    Depth: 81 Ft. 10 In.
Bedrooms: 3           Bath: 3
Garage: 1
Styles: Contemporary, Modern
Foundation: Slab
Available Packages
 PDF Bid Set  $1,000.00
 Five Sets  $1,200.00
 Eight Sets  $1,400.00
 Vellums  $2,000.00
 PDF  $2,000.00
 AutoCad Files (DWG)  $2,400.00
Foundation Options
 Slab  $0.00
Plan Options
 Additional Sets   $75.00
 Full Reverse   $100.00
 Mirror Reverse   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
47' 9"
Width:
81' 10"
Depth:
Duplex
Dwelling Number:
EXTERIOR STYLE
Contemporary
Narrow
Modern
Florida
Craftsman
NUMBERS OF ROOMS
3
Bedrooms:
3
Full Baths:
FINISHED SQUARE FOOTAGE
1,056 Sq. Ft.
Main Level:
919 Sq. Ft.
Upper Level:
1,975 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
276 Sq. Ft.
Garage:
52 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
1
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
29' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
8:12
Primary:
ROOF LOAD
20
Live:
15
Dead:
20
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
12' 0" X 10' 0"
Bedroom
12' 0" X 10' 0"
Bedroom
12' 0" X 10' 0"
Bedroom
12' 0" X 10' 0"
Bedroom
13' 3" X 10' 3"
Dining
13' 10" X 10' 0"
Dining 2
13' 4" X 16' 0"
Family
17' 6" X 16' 0"
Family 2
18' 6" X 11' 8"
Garage
18' 6" X 11' 8"
Garage 2
18' 0" X 9' 0"
Kitchen
16' 6" X 12' 3"
Kitchen 2
14' 0" X 16' 0"
Master Suite
14' 0" X 16' 0"
Master Suite 2
KEY FEATURES
Attached
Basement
Crawlspace
Custom Details for Luxurious Living
Ground Level Bedroom is great for Study or Guest
Large Master Baths with seperate Tub and Shower
Master Suite features a Private Deck
Open Kitchen/Nook/Family with Modern Urban Design
Slab
