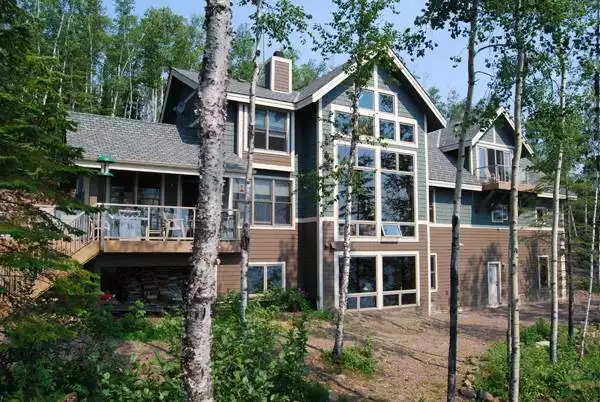

  1. Rear Photo

    Rear Photo

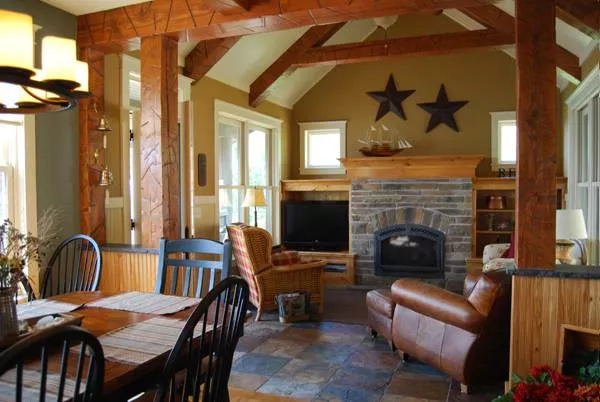

  2. Hearth Room

    Hearth Room

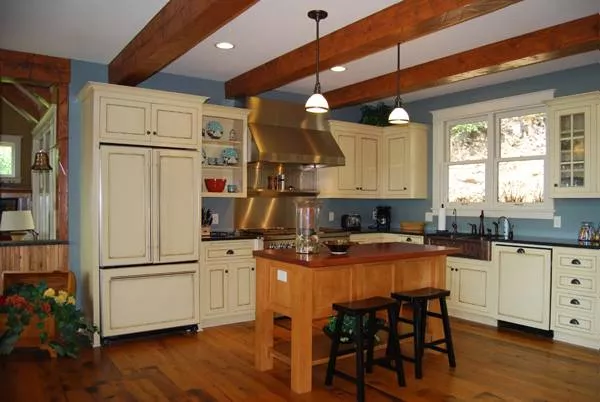

  3. Kitchen

    Kitchen
  4. Study

    Study

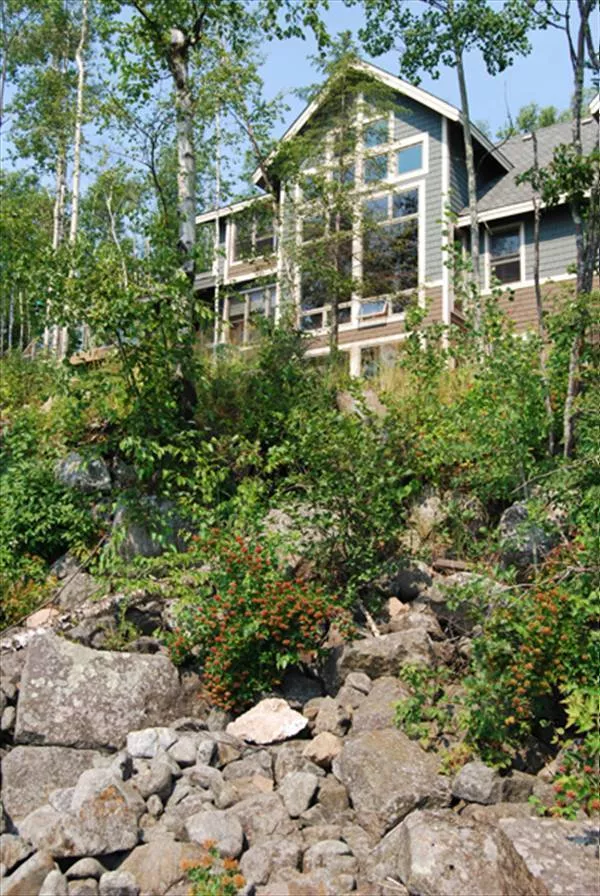

  5. Rear View

    Rear View
  6. Rear Elevation

    Rear Elevation

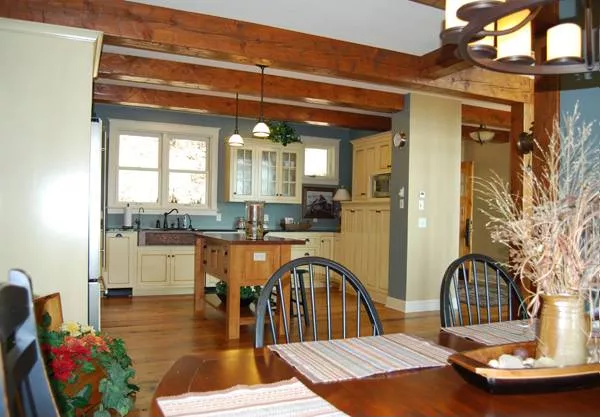

  7. Kitchen/Breakfast Room

    Kitchen/Breakfast Room

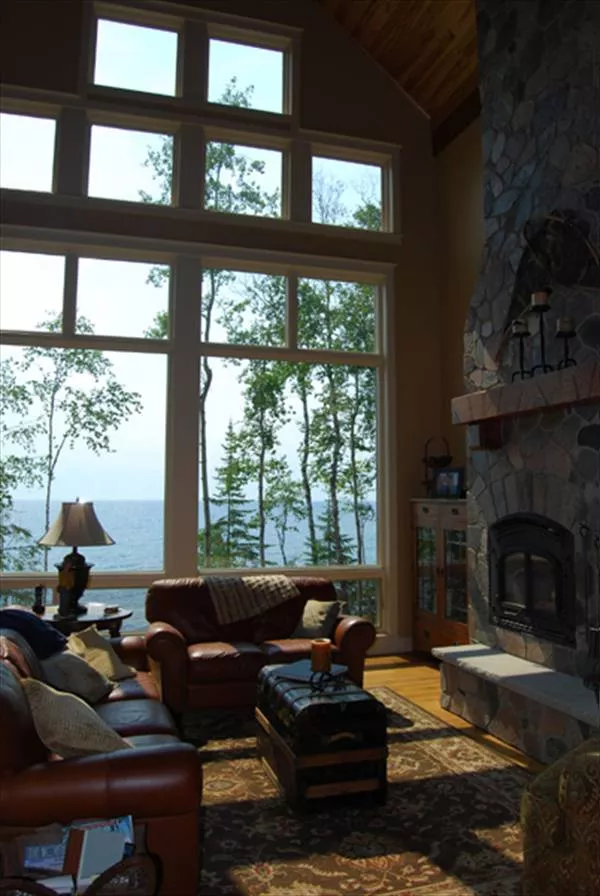

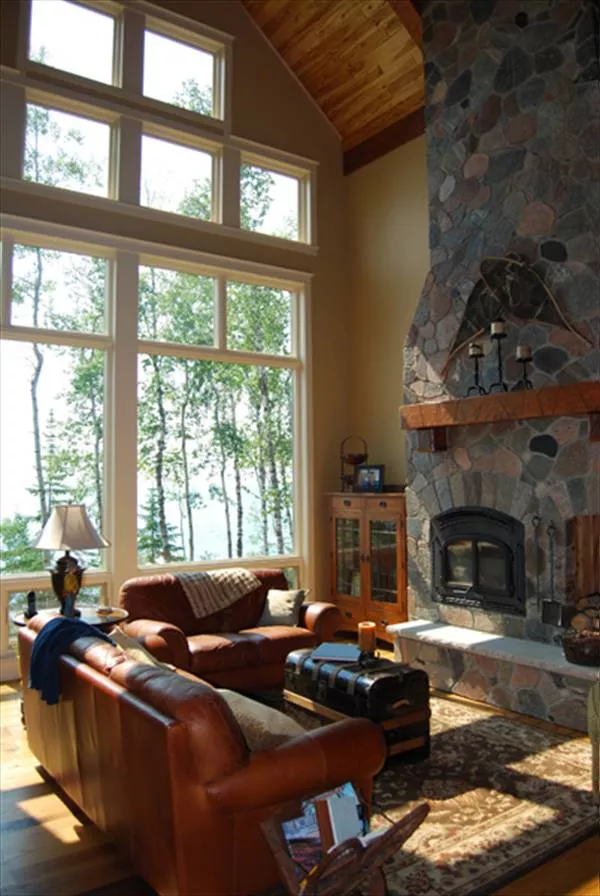

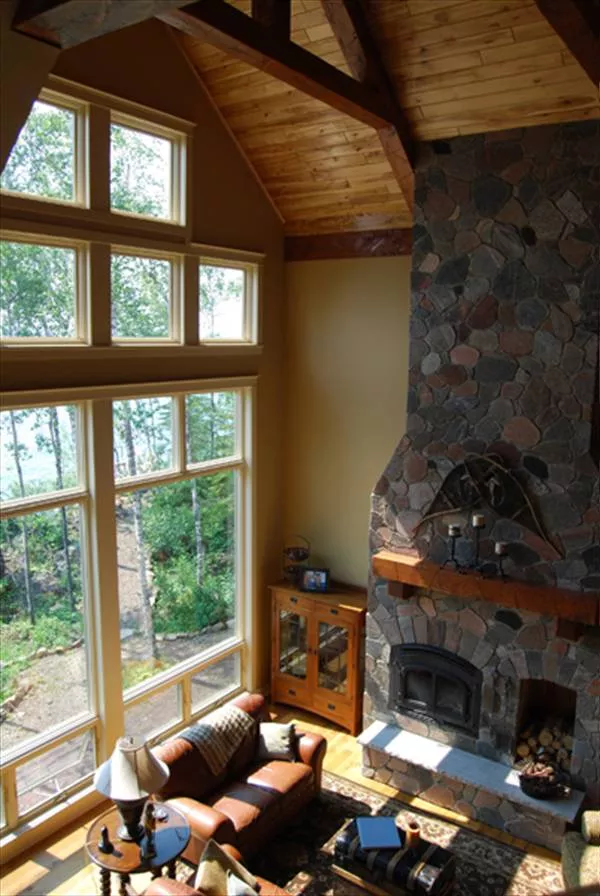

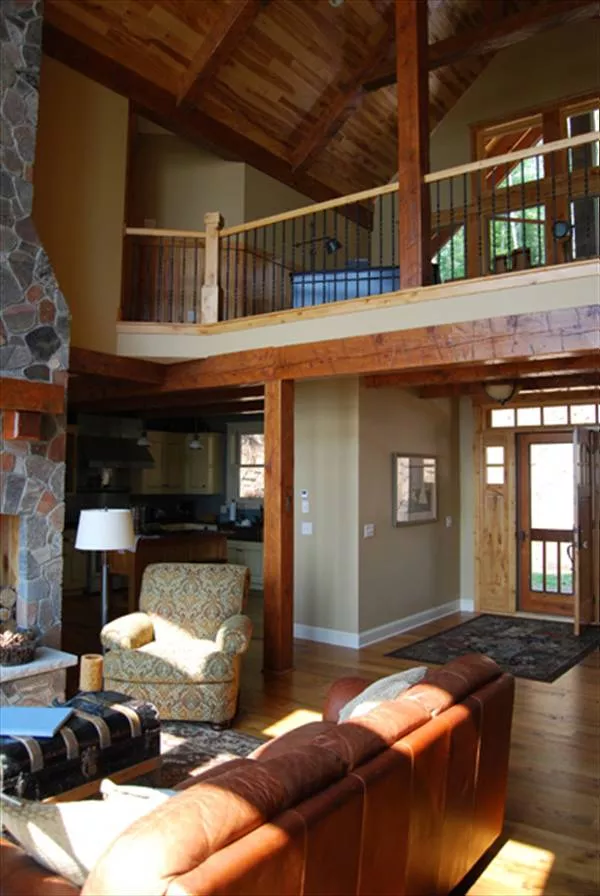

  8. Great Room

    Great Room

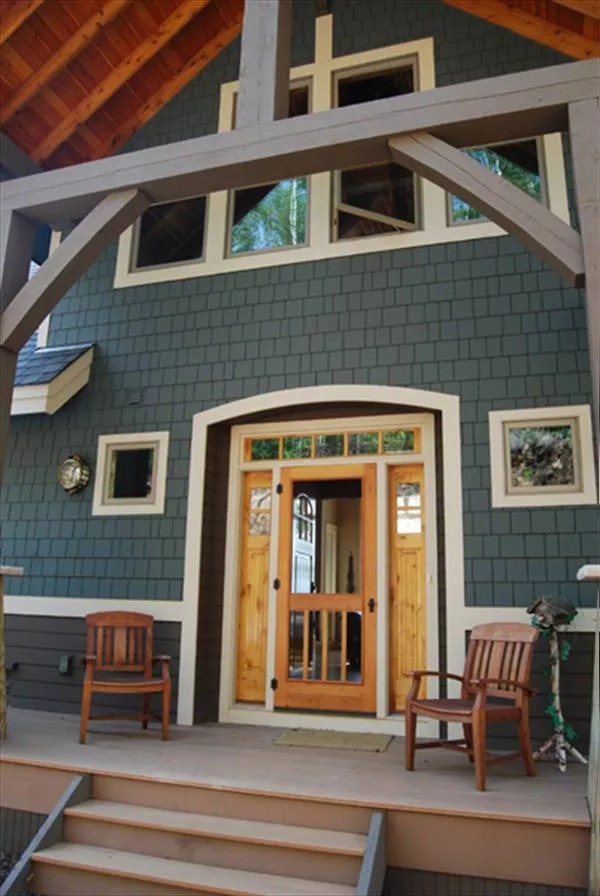

  9. Front View

    Front View

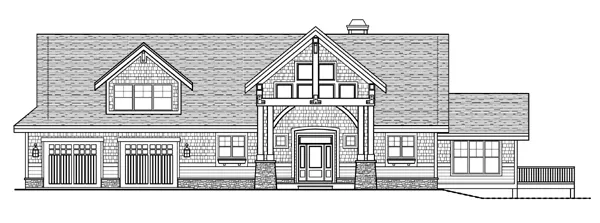

  10. Front Rendering

    Front Rendering
  11. Interior Photo

    Interior Photo
  12. Interior Photo 2

    Interior Photo 2
  13. Main Floor Plan

    Main Floor Plan
  14. Upper Floor Plan

    Upper Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Built on the rocky shores of Lake Superior, this plan is designed with views in mind. The central great room soars to almost 30 feet, with a dramatic window wall overlooking the rear views, and a pattern of windows repeated exactly in the front of the home above the entry in the study loft.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

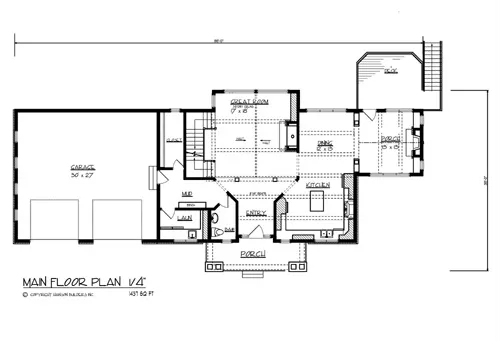

Main Floor Plan

Main Floor Plan image of The North Shore
All images copyrighted by designer.

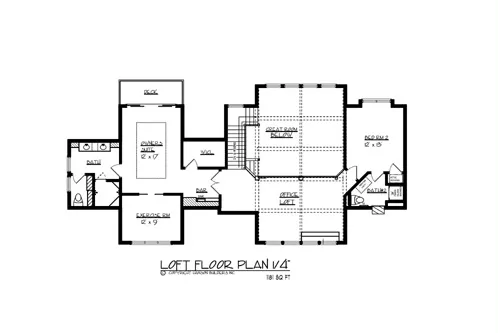

Upper Floor Plan

Upper Floor Plan image of The North Shore
All images copyrighted by designer.


Plan #1608: The North Shore

ENERGY STAR Heated Area: 2,618 Sq. Ft.
First Floor: 1,437 Sq. Ft.
Second Floor: 1,181 Sq. Ft.
Width: 86 Ft.    Depth: 38 Ft.
Bedrooms: 2           Bath: 2.5
Garage: 2
Styles: Cape Cod, Cottage
Foundation: Basement
Available Packages
 One Set  $672.00
 Five Sets  $747.00
 Eight Sets  $835.00
 PDF  $972.00
 CD-ROM CAD FILES  $1,540.00
Foundation Options
 Basement  $0.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
86' 0"
Width:
38' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Cape Cod
Cottage
Craftsman
Mountain
Vacation
NUMBERS OF ROOMS
2
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,437 Sq. Ft.
Main Level:
1,181 Sq. Ft.
Upper Level:
2,618 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
810 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Basement
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
30' 0"
Maximum House Height:
FRAMING INFORMATION
Combination
Roof Framing:
2x6
Exterior Wall Framing:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
KEY FEATURES
Daylight Basement
