  1. Rendering - Front

    Rendering - Front

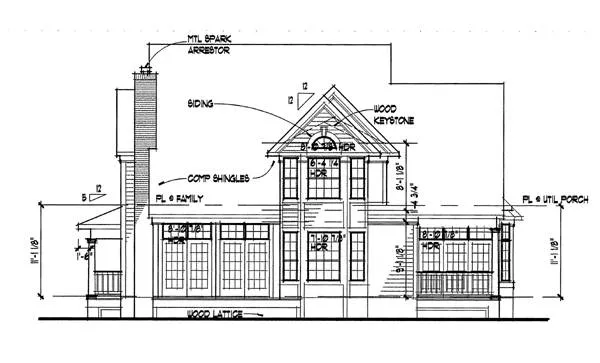

  2. Rear Elevation

    Rear Elevation

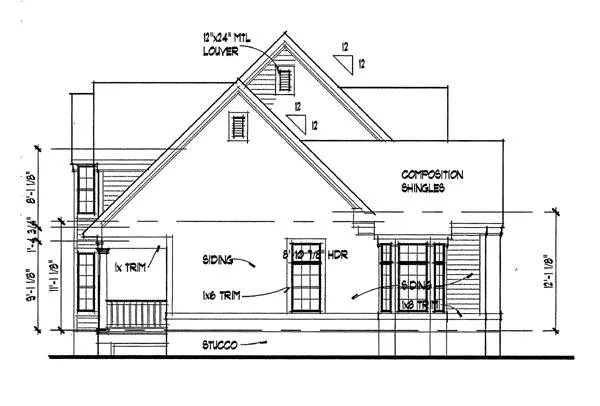

  3. Left Elevation

    Left Elevation

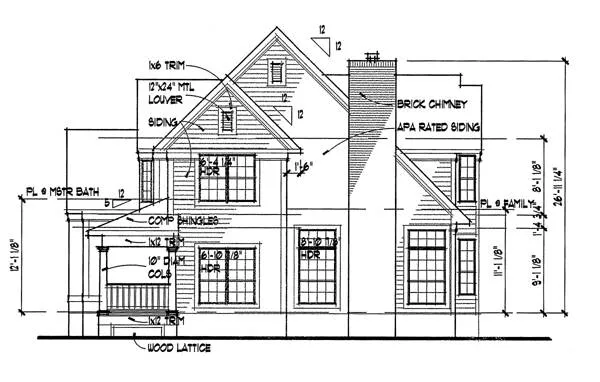

  4. Right Elevation

    Right Elevation

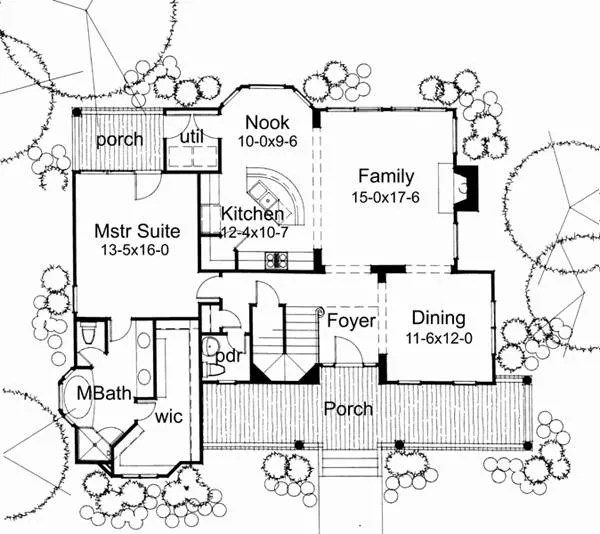

  5. First Floor Plan

    First Floor Plan

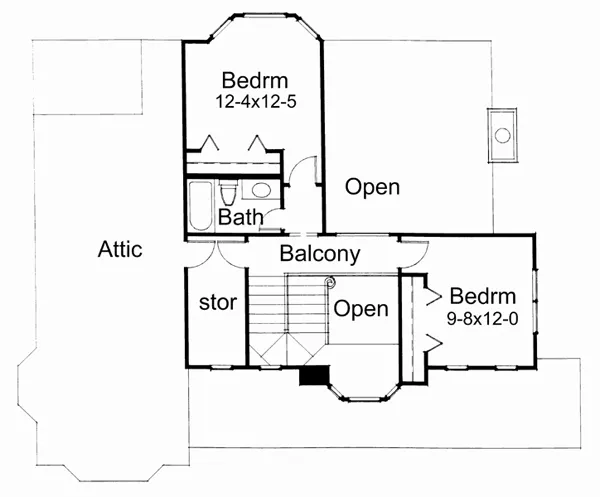

  6. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This plan is loaded with charm. The large open kitchen looks out to the breakfast Nook and Family Room. These spaces both offer plenty of natural light and views due to the many windows. The private Master Suite is accompanied by a luxurious Master Bath complete with a huge walk-in closet.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #5777: The Morton

Heated Area: 1,899 Sq. Ft.
First Floor: 1,422 Sq. Ft.
Second Floor: 477 Sq. Ft.
Width: 51 Ft. 8 In.    Depth: 43 Ft. 8 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Country, Victorian
Foundation: Basement, Crawl Space, Slab
Available Packages
 PDF Bid Set  $500.00
 Five Sets  $600.00
 Eight Sets  $700.00
 Vellums  $1,000.00
 PDF  $1,000.00
 AutoCad Files (DWG)  $1,200.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
 Basement  $200.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 Full Reverse   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
51' 8"
Width:
43' 8"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
EXTERIOR STYLE
Traditional
Country
Victorian
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,422 Sq. Ft.
Main Level:
477 Sq. Ft.
Upper Level:
1,899 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
351 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
30' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12:12
Primary:
5:12
Porch:
ROOF LOAD
20
Live:
15
Dead:
20
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
12' 4" X 12' 5"
Bedroom
9' 8" X 12' 0"
Bedroom
11' 6" X 12' 0"
Dining
15' 0" X 17' 6"
Family
12' 4" X 10' 7"
Kitchen
13' 5" X 16' 0"
Master Suite
10' 0" X 9' 6"
Nook
KEY FEATURES
Covered Front Sitting Porch
Detached
Front Porch
Island Kitchen/Breakfast Bar
Large Master WIC
Open Family/Kitchen/Nook Area
Vaulted Family Ceiling
Walk-in Pantry
