  1. Front rendering

    Front rendering

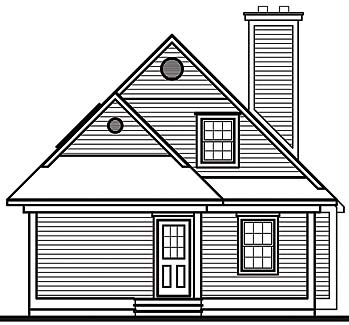

  2. Rear

    Rear
  3. First level

    First level
  4. Second level

    Second level
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
A screened porch adds interest and versatility to this two-story cottage house plan. Inside, the living areas flow together for easy entertaining. A fireplace adds warmth and ambience. Note the handy storage room off the air-lock entry.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


First level

First level
All images copyrighted by designer.

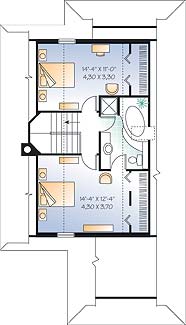

Second level

Second level
All images copyrighted by designer.


Plan #3687: The Cliffside 5

Heated Area: 1,484 Sq. Ft.
First Floor: 908 Sq. Ft.
Second Floor: 576 Sq. Ft.
Width: 28 Ft.    Depth: 36 Ft.
Bedrooms: 3           Bath: 2
Styles: Beach, Cottage
Foundation: Crawlspace, Daylight basement, Monolithic slab, Walkout basement incl.
Available Packages
 5 sets  $750.00
 8 sets  $780.00
 Vellums  $930.00
 PDF Files  $930.00
 CAD Files  $1,500.00
Foundation Options
 Walkout basement incl.  $0.00
 Crawlspace  $395.00
 Daylight basement  $395.00
 Monolithic slab  $395.00
Plan Options
 Additional Sets   $50.00
 Materials List   $115.00
 Right Reading Reverse   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
28' 0"
Width:
36' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Cottage
French Country
Lake
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
908 Sq. Ft.
Main Level:
576 Sq. Ft.
Upper Level:
1,484 Sq. Ft.
Total:
GARAGE
None
Garage Location:
0
Garage Size:
FOUNDATION
Crawlspace
Daylight basement
Monolithic slab
Walkout basement incl.
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
8
Second Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
ROOF LOAD
55
Live:
20
Dead:
INSULATION (R)
20
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
KEY FEATURES
Covered Front Porch
Dining Room
Family Room
Fireplace
Foyer
Front Porch
Great Room
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Master Bdrm Upstairs
Mud Room
None
Nook / Breakfast Area
KEY FEATURES
Open Floor Plan
Rear Porch
Screened Porch/Sunroom
Separate Tub and Shower
Sitting Area
Split Bedrooms
Storage Space
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Walk-in Closet
Walkout Basement
