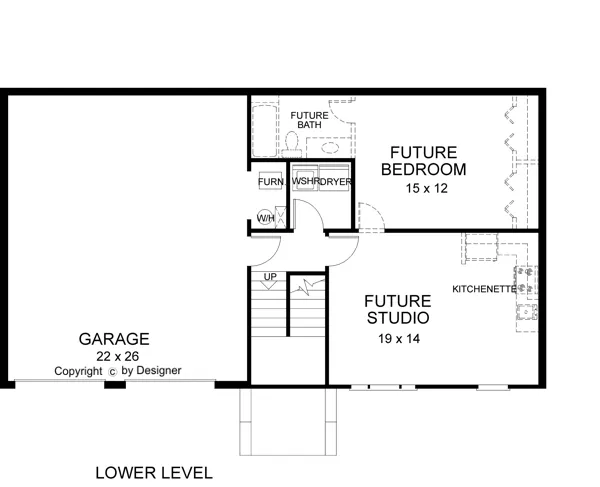

  2. Lower Level Floorplan

    Lower Level Floorplan

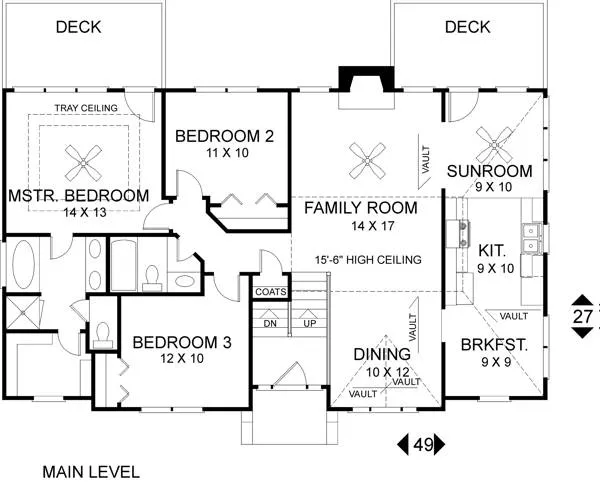

  3. Upper Level Floorplan

    Upper Level Floorplan

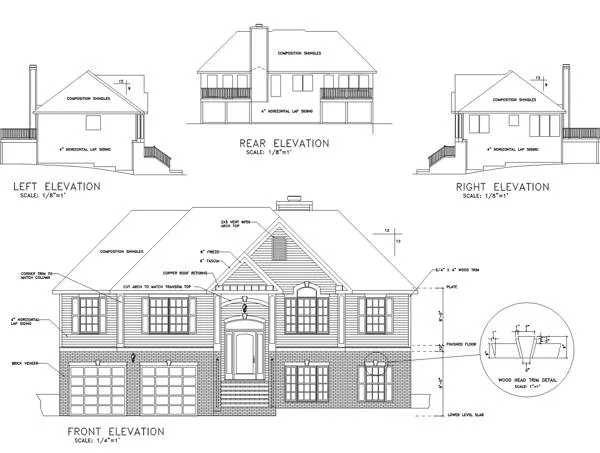

  4. Rear Elevation

    Rear Elevation
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This extraordinary split-foyer home boasts far more than just a "pretty face". Careful attention to detail makes this economical 1459 square foot design as functional as it is attractive.A covered stoop protects the inviting entry which is brightened by the glass door with sidelights and an arched transom.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

Lower Level Floorplan

Lower Level Floorplan
All images copyrighted by designer.

Upper Level Floorplan

Upper Level Floorplan
All images copyrighted by designer.

Rear Elevation

Rear Elevation
All images copyrighted by designer.


Plan #6284: The Chatsworth

Heated Area: 1,459 Sq. Ft.
First Floor: 68 Sq. Ft.
Second Floor: 1,391 Sq. Ft.
Width: 49 Ft.    Depth: 27 Ft.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Southern, Country
Foundation: Slab Foundation (Please allow 2-3 Days for Delivery)

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF Bid Set  $575.00
 Five Sets  $725.00
 PDF File PDFs Now!   $775.00
 Eight Sets  $825.00
 Reproducible Set  $875.00
 CAD File  $1,100.00
Foundation Options
 Slab Foundation (Please allow ...  $0.00
Plan Options
 Additional Sets   $35.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
49' 0"
Width:
27' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Southern
Country
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
68 Sq. Ft.
Main Level:
1,391 Sq. Ft.
Upper Level:
1,459 Sq. Ft.
Total:
GARAGE
Under
Garage Location:
2
Garage Size:
FOUNDATION
Slab Foundation (Please allow 2-3 Days for Delivery)
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
29' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9/12
Primary:
ROOF LOAD
30
Live:
90
Wind:
INSULATION (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
KEY FEATURES
Attached
KEY FEATURES
No Porch
