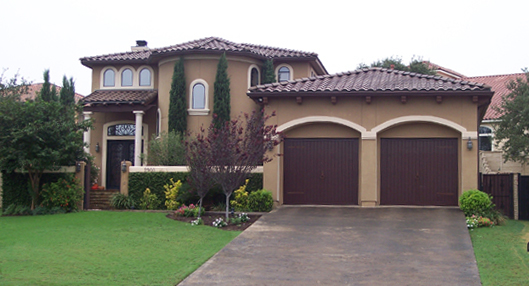

  1. Front View

    Front View

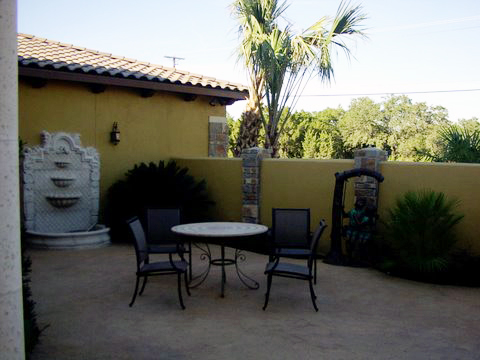

  2. Courtyard

    Courtyard

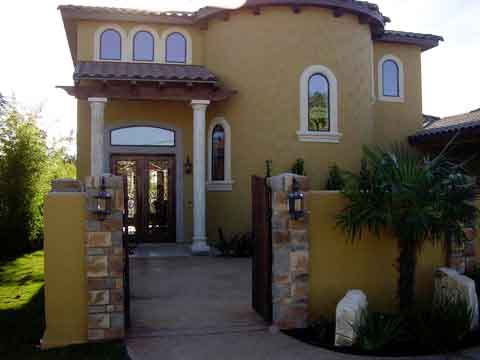

  3. Entrance

    Entrance

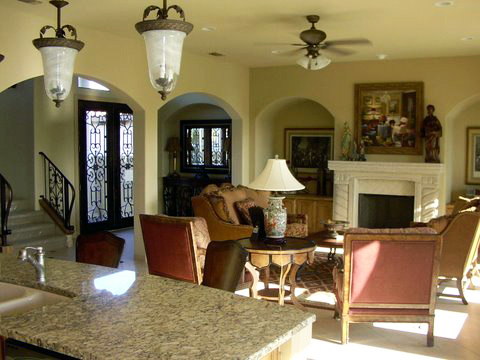

  4. Living Room

    Living Room

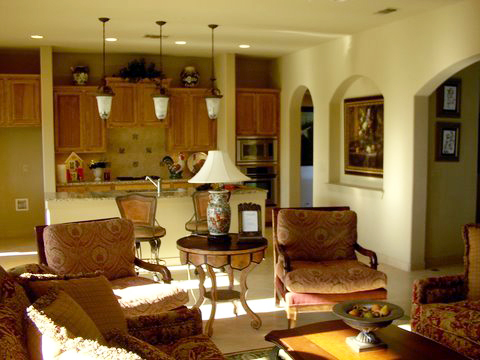

  5. Living Room/Kitchen

    Living Room/Kitchen

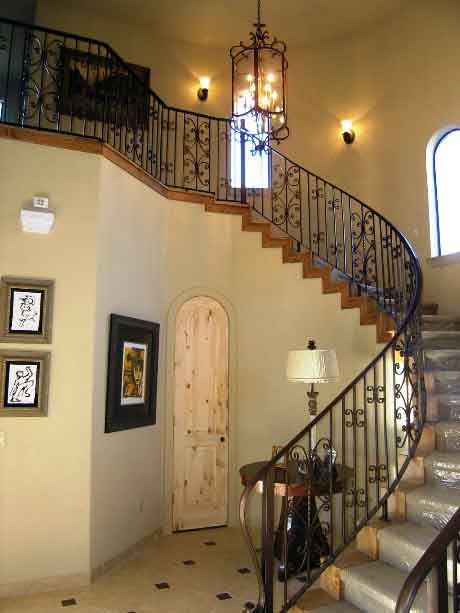

  6. Foyer

    Foyer

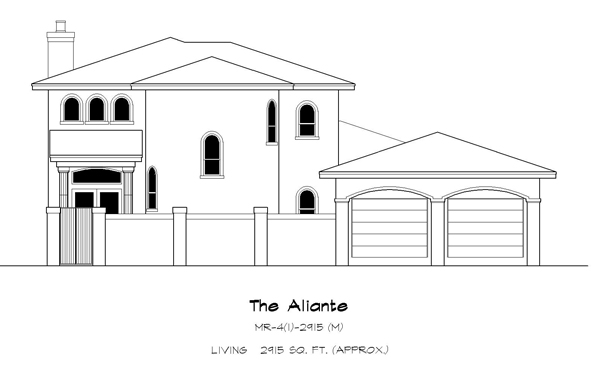

  7. Front Elevation

    Front Elevation

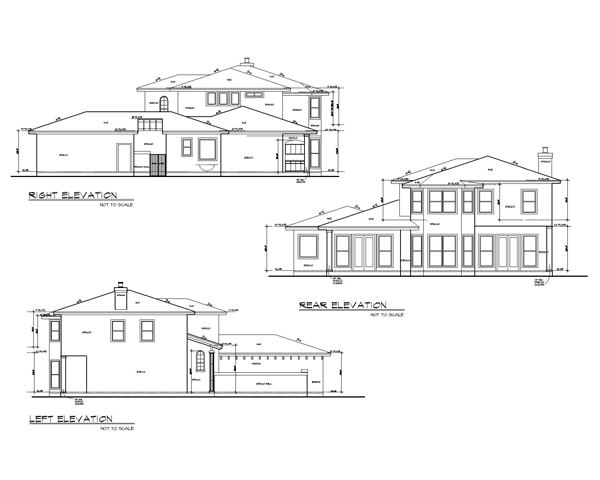

  8. Rear Elevation

    Rear Elevation
  9. Floor Plan

    Floor Plan
  10. 2nd floor

    2nd floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
A large courtyard for entertaining is in the front as you walk into the two-story foyer. Walking thru arches one enters the open living, kitchen, and dining room. The master bedroom is downstairs and has a private covered porch.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

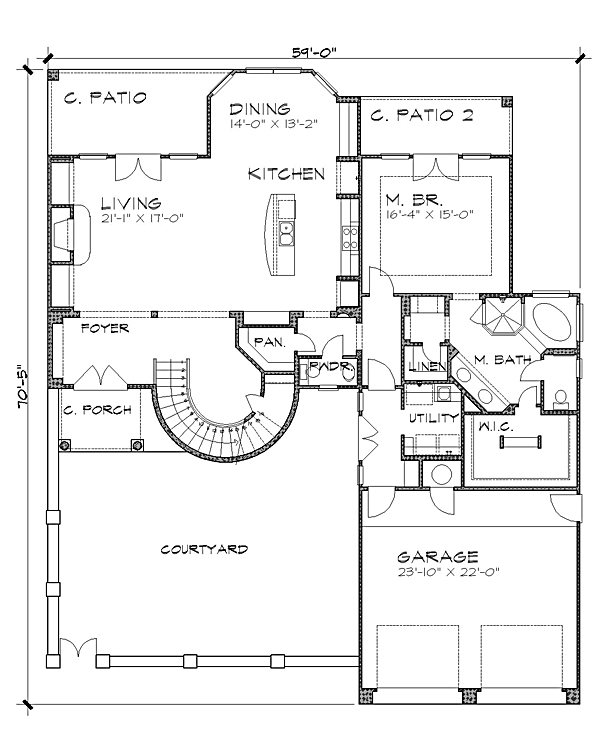

Floor Plan

Floor Plan
All images copyrighted by designer.

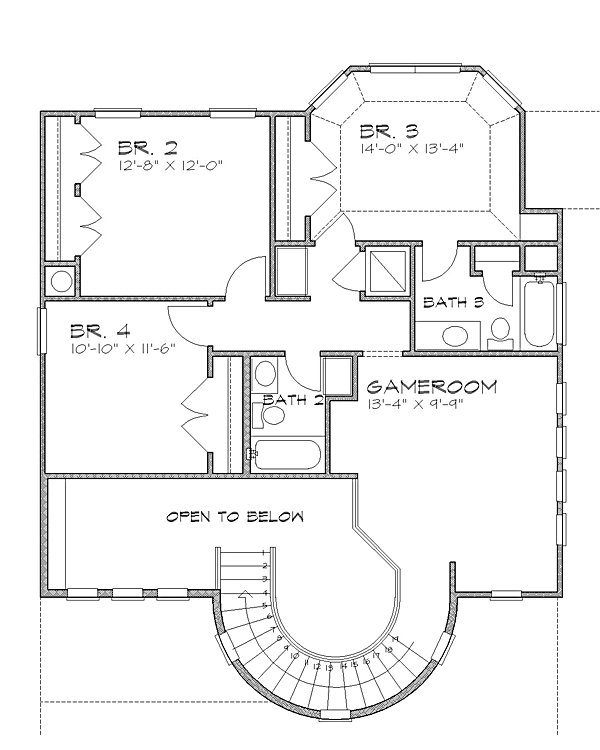

2nd floor

2nd floor
All images copyrighted by designer.


Plan #4239: The Aliante

Heated Area: 2,915 Sq. Ft.
First Floor: 1,925 Sq. Ft.
Second Floor: 1,990 Sq. Ft.
Width: 59 Ft.    Depth: 70 Ft. 5 In.
Bedrooms: 4           Bath: 3.5
Garage: 2
Styles: Mediterranean, Spanish
Foundation: Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF- Bid Set PDFs Now!   $700.00
 Four Sets  $800.00
 Eight Sets  $900.00
 PDF- Construction Set  $1,050.00
Foundation Options
 Slab  $150.00
Plan Options
 Mirror Reverse   $50.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
59' 0"
Width:
70' 5"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Mediterranean
Spanish
Tuscan
Builders
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,925 Sq. Ft.
Main Level:
1,990 Sq. Ft.
Upper Level:
2,915 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
596 Sq. Ft.
Garage:
89 Sq. Ft.
Porch:
281 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
FRAMING INFORMATION
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
ROOF PITCH
4:12
Primary:
3:12
Secondary:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
2 Story Volume
Arches
Attached
Bonus Room
Courtyard
Covered Front Porch
Covered Rear Porch
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
KEY FEATURES
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Slab
Split Bedrooms
Walk-in Closet
Walk-in Pantry
