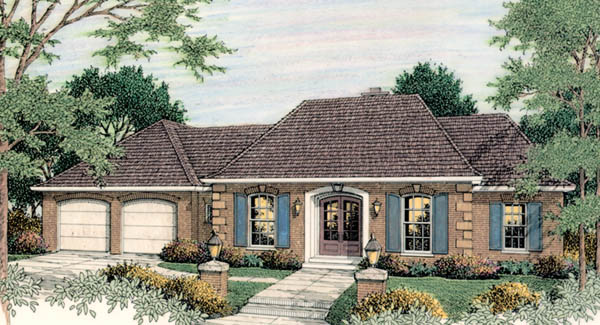

  1. Front Rendering

    Front Rendering

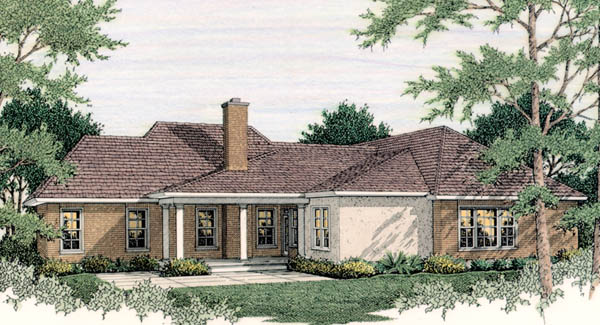

  2. Rear Exterior

    Rear Exterior

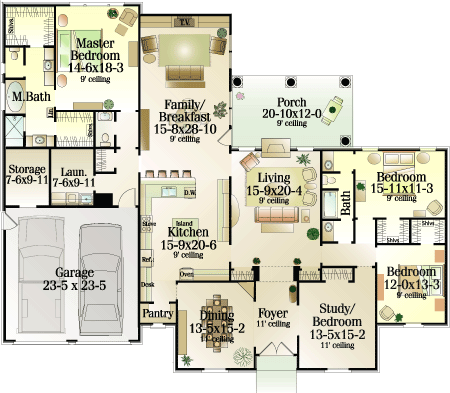

  3. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The kitchen in this design will take your breath away. It includes an island for food preparation plus a snack bar for additional seating. A large walk-in pantry, built-in desk area, abundant cabinet and counter space. Extra space will accommodate double refrigerators and ovens if desired.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #5314: St. Charles

Heated Area: 3,175 Sq. Ft.
First Floor: 3,175 Sq. Ft.
Width: 79 Ft.    Depth: 65 Ft. 4 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: European, French Country
Foundation: Basement, Crawl Space, Slab
Available Packages
 Five Sets  $1,016.00
 Eight Sets  $1,081.00
 PDF File  $1,215.00
 CAD Files  $2,055.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $55.00
 Materials List   $65.00
 Full Reverse   $255.00
 Mirror Reverse   $50.00
 2x6 Wall Conversion   $255.00
 Re-Use Fee   $355.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
79' 0"
Width:
65' 4"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
European
French Country
Mediterranean
FACADE
Brick
Stucco
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
3,175 Sq. Ft.
Main Level:
3,175 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
567 Sq. Ft.
Garage:
83 Sq. Ft.
Storage:
275 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9 & 11
First Floor Ceiling:
26' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
ROOF LOAD
30
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Butler's Pantry
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Great Room
His and Hers Master Closets
Home Office
Kitchen Island
KEY FEATURES
Laundry 1st Fl
Library/Media Rm
Master Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Split Bedrooms
Storage Space
Walk-in Closet
Walk-in Pantry
