  1. Front Rendering

  2. Rear Rendering - Brick

  3. Kitchen by KraftMaid

  4. Rear Color Rendering

  5. Front Rendering

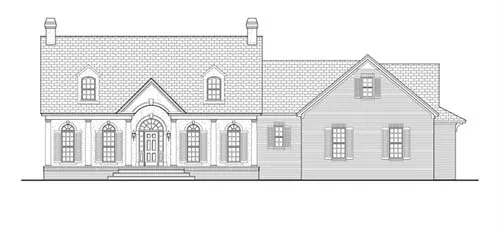

  6. Front Elevation

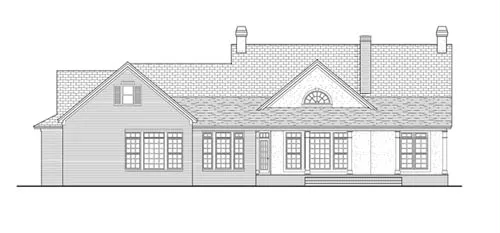

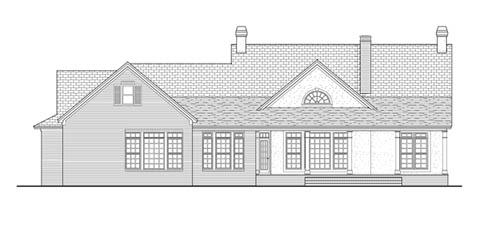

  7. Rear Elevation

  8. Rear Rendering

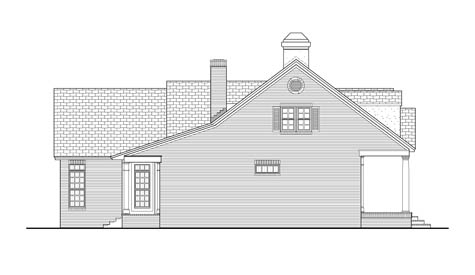

  9. Left Side Elevation

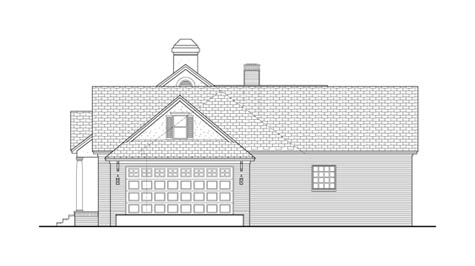

  10. Right Side Elevation

  11. Kitchen

  12. Front Rendering

  13. First Floor Plan

  14. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

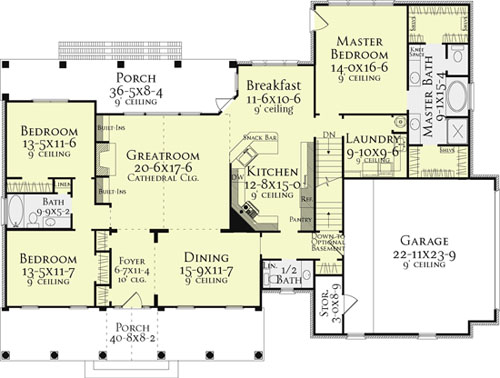

First Floor Plan

First Floor Plan image of Southborough Cottage House Plan
All images copyrighted by designer.

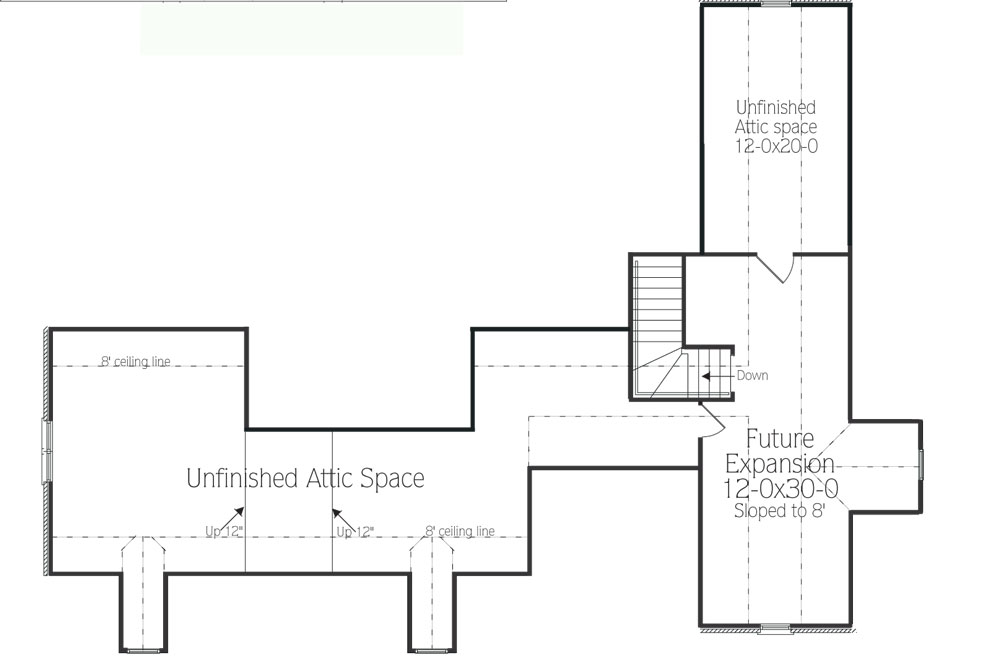

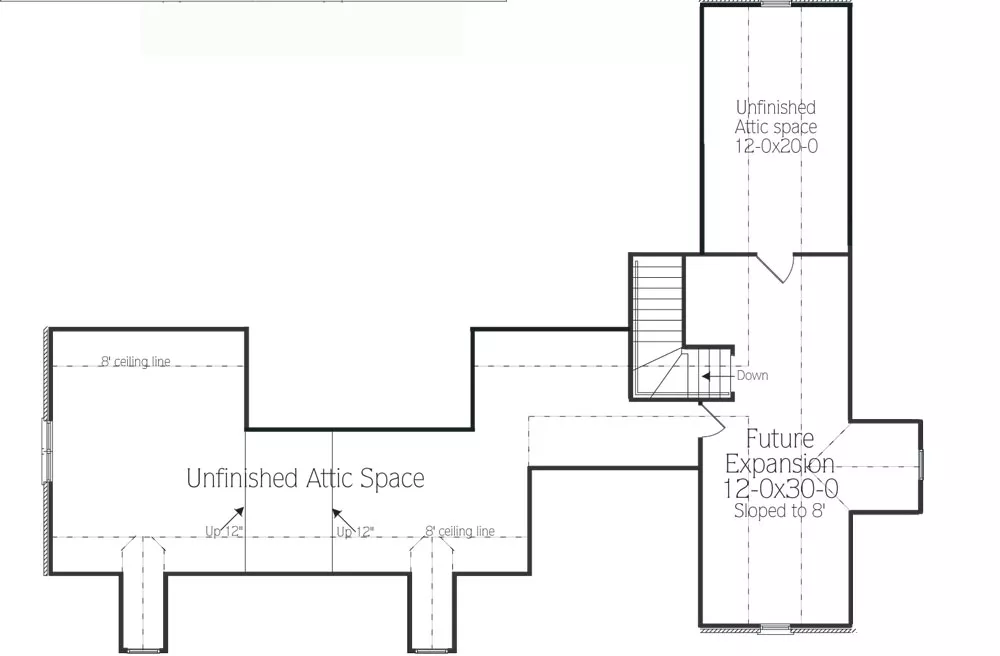

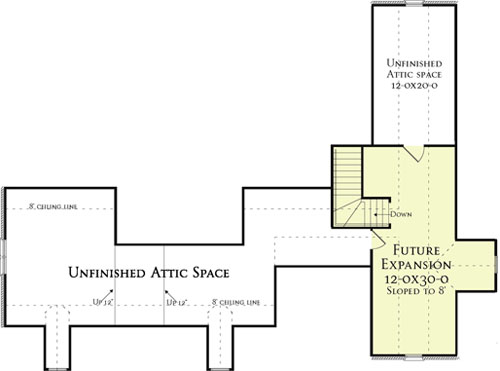

Second Floor Plan

Second Floor Plan image of Southborough Cottage House Plan
All images copyrighted by designer.


Plan #5558: Southborough Cottage House Plan

ENERGY STAR Heated Area: 2,286 Sq. Ft.
First Floor: 2,286 Sq. Ft.
Bonus: 443 Sq. Ft.
Width: 76 Ft. 10 In.    Depth: 55 Ft. 6 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Southern, Country
Foundation: Basement, Crawl Space, Slab
Available Packages
 Five Sets  $852.00
 Eight Sets  $930.00
 PDF File  $1,105.00
 CAD Files  $1,952.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $55.00
 Materials List   $65.00
 Full Reverse   $255.00
 Mirror Reverse   $50.00
 2x6 Wall Conversion   $255.00
 Re-Use Fee   $355.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
76' 10"
Width:
55' 6"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Southern
Country
Cape Cod
North Carolina
FACADE
Brick
Stucco
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
2,286 Sq. Ft.
Main Level:
2,286 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
632 Sq. Ft.
Garage:
580 Sq. Ft.
Porch:
443 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9 & 10
First Floor Ceiling:
8
Second Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9/12
Primary:
10/12
Secondary:
12/12
Gable:
ROOF LOAD
30
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Basement
Bonus Room
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
His and Hers Master Closets
Laundry 1st Fl
KEY FEATURES
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Storage Space
Unfinished Space
Vaulted Ceilings
Walk-in Closet
