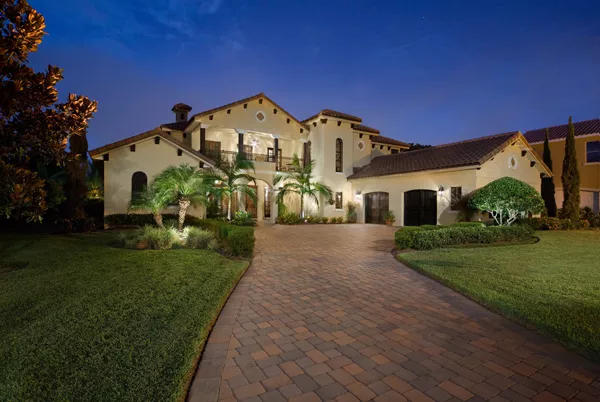

  1. Front Exterior

    Front Exterior

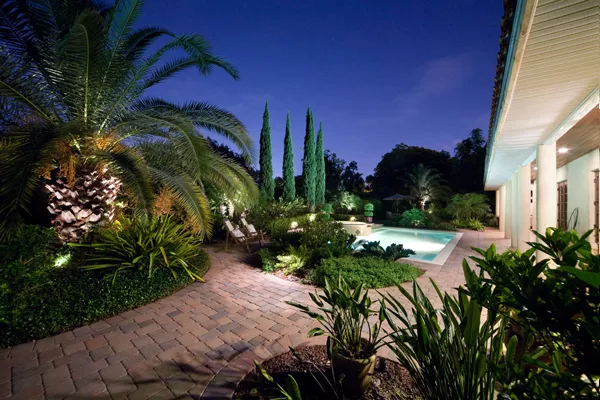

  2. Rear

    Rear

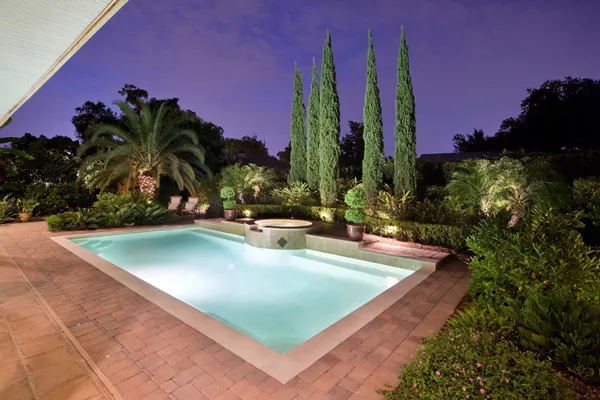

  3. Rear

    Rear

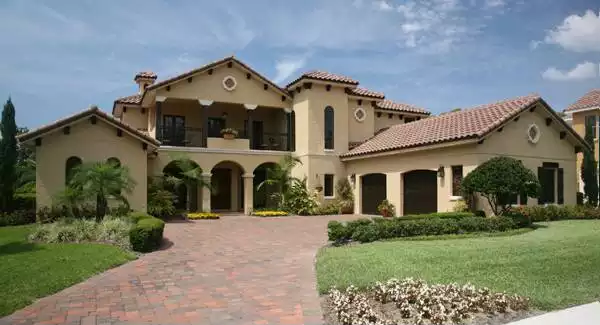

  4. Front Exterior

    Front Exterior

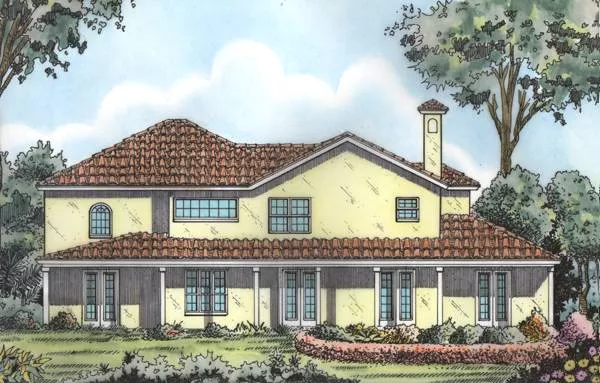

  5. Rear Elevation

    Rear Elevation

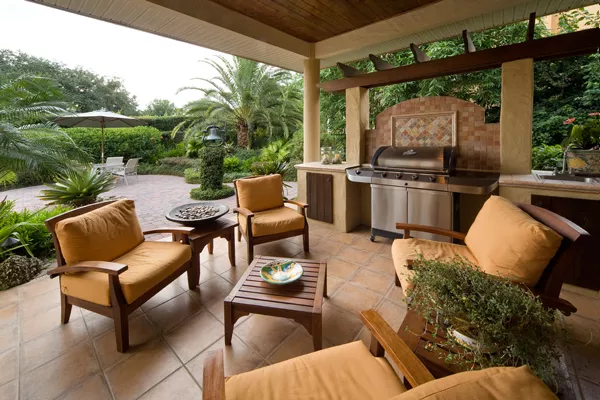

  6. Patio

    Patio

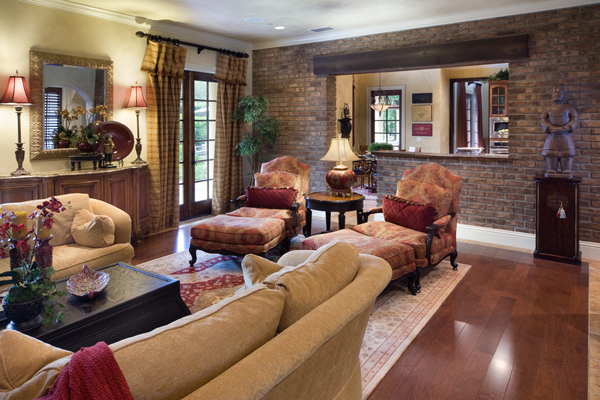

  7. Living Room

    Living Room

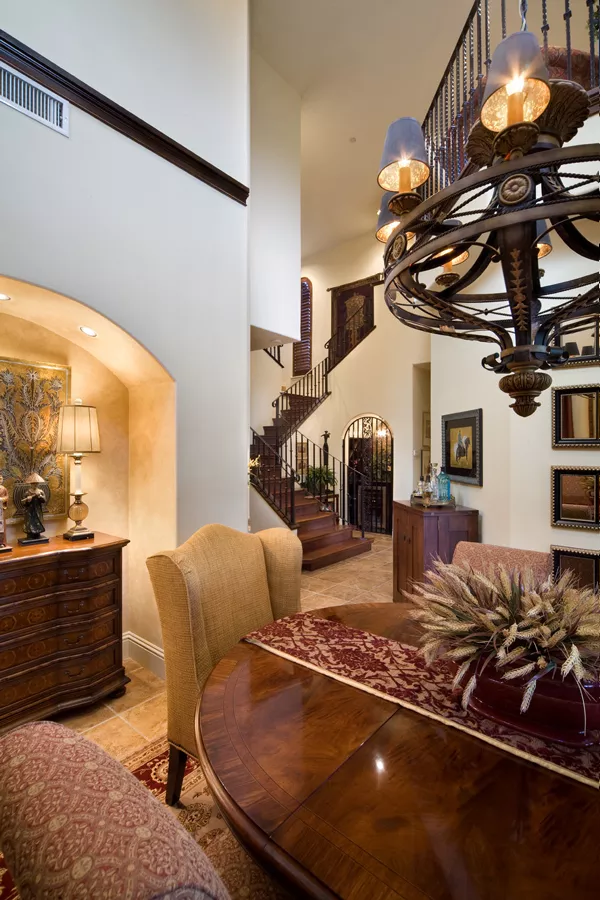

  8. Dining Room

    Dining Room

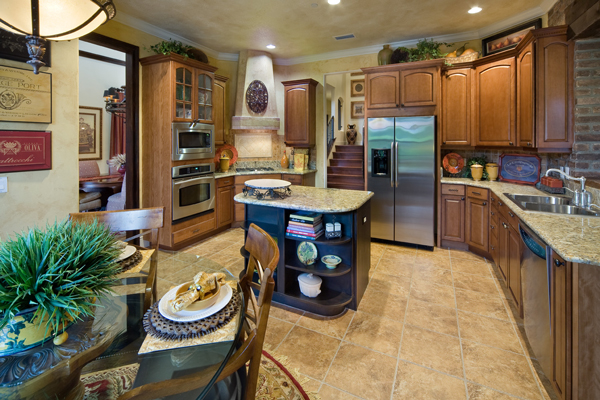

  9. Kitchen

    Kitchen

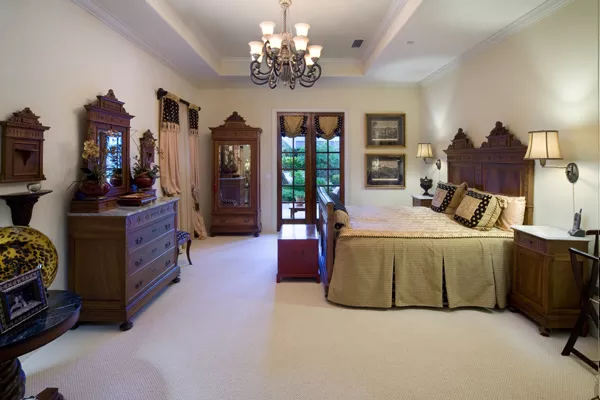

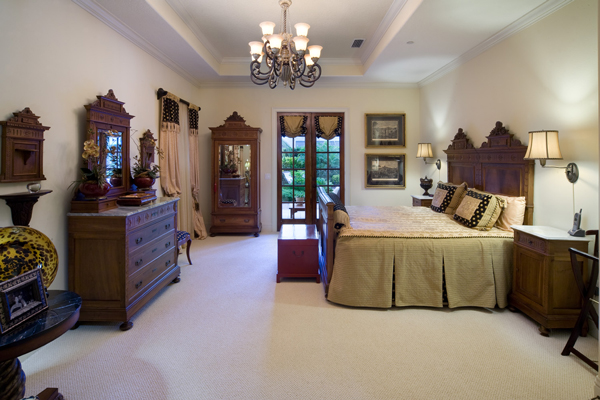

  10. Master Bedroom

    Master Bedroom

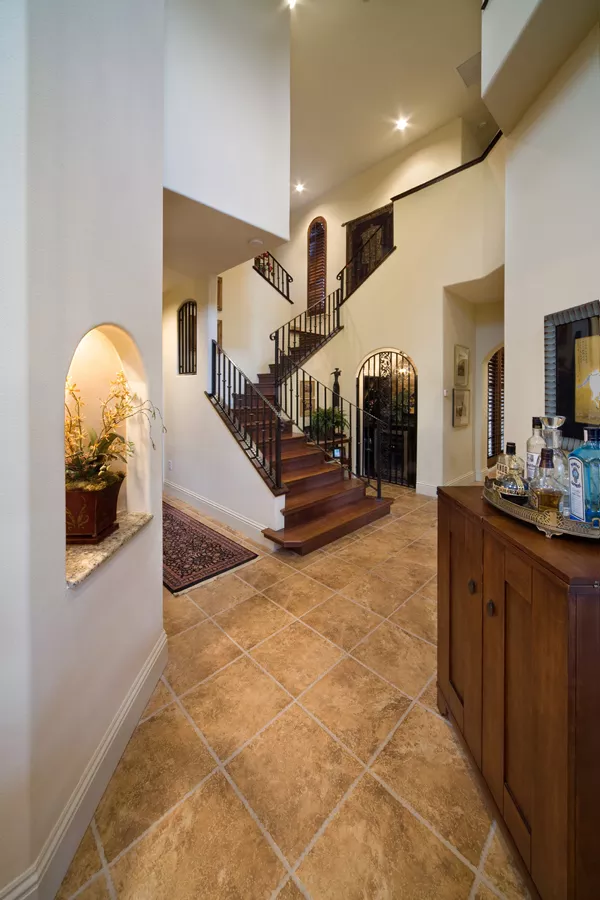

  11. Interior Photo

    Interior Photo
  12. Front Rendering

    Front Rendering

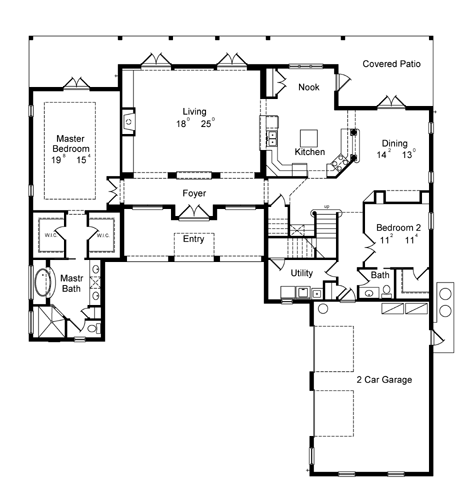

  13. First Floor Plan

    First Floor Plan

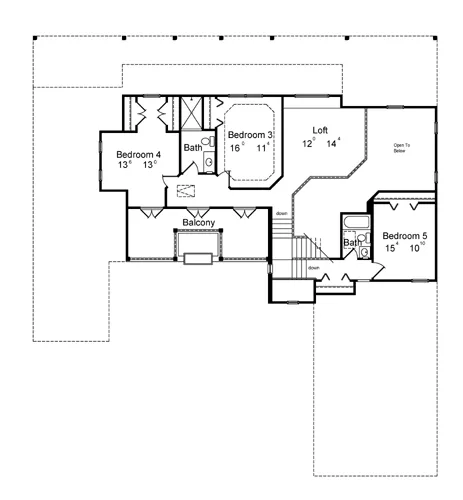

  14. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

First Floor Plan

First Floor Plan
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #5493: Sophia

Heated Area: 3,655 Sq. Ft.
First Floor: 2,443 Sq. Ft.
Second Floor: 1,212 Sq. Ft.
Width: 71 Ft.    Depth: 77 Ft. 4 In.
Bedrooms: 4           Bath: 3.5
Garage: 2
Styles: Beach, Mediterranean
Foundation: Basement Option - 1-2 week turnaround, Crawl Space Option - 1-2 week turnaround, Slab
Available Packages
 PDF Bid Set!  $600.00
 FIVE SETS OF BONDPRINTS  $1,100.00
 REPRODUCIBLES  $1,375.00
 PDF File Package  $1,375.00
 CAD FILES  $2,750.00
Foundation Options
 Slab  $0.00
 Basement Option - 1-2 week tur...  $450.00
 Crawl Space Option - 1-2 week ...  $450.00
Plan Options
 Additional sets   $45.00
 Builder's sales flyer   $45.00
 Builder's Marketing Package   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
71' 0"
Width:
77' 4"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Beach
Mediterranean
Florida
Concrete
Contemporary
Southwest
Spanish
European
FACADE
Stucco
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
2,443 Sq. Ft.
Main Level:
1,212 Sq. Ft.
Upper Level:
3,655 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
664 Sq. Ft.
Garage:
230 Sq. Ft.
Porch:
540 Sq. Ft.
Patio:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement Option - 1-2 week turnaround
Crawl Space Option - 1-2 week turnaround
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
28' 8"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
8" Block
Exterior Wall Framing:
ROOF PITCH
6:12
Primary:
INSULATION (R)
5
Exterior Wall:
0
Interior Wall:
19
Ceiling:
0
Floor:
KEY FEATURES
Arches
Attached
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Great Room
Guest Suite
His and Hers Master Closets
Home Office
KEY FEATURES
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Sitting Area
Split Bedrooms
Storage Space
Walk-in Closet
