Somerset-3104 House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

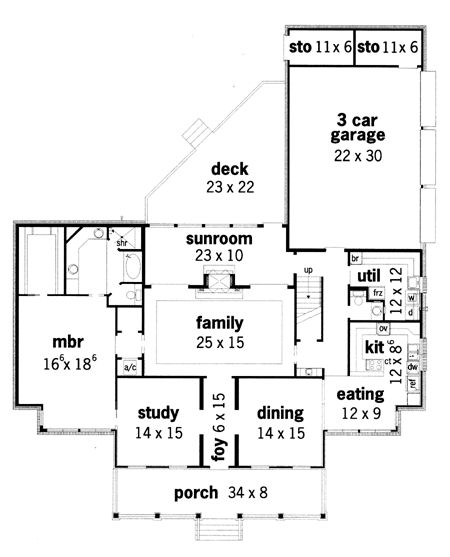

First Floor Plan

First Floor Plan image of Somerset-3104 House Plan
All images copyrighted by designer.

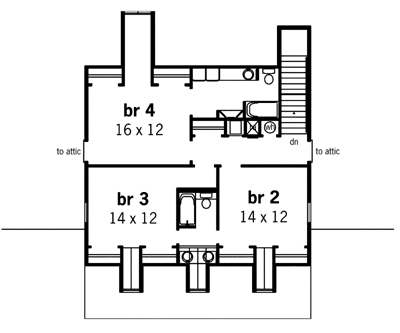

Second Floor Plan

Second Floor Plan image of Somerset-3104 House Plan
All images copyrighted by designer.





Plan: THD-BFD-3604
ENERGY STAR Heated Area: 3119 Sq. Ft.
First Floor: 2092 Sq. Ft.
Second Floor: 1027 Sq. Ft.
Width: 66 Ft.    Depth: 80 Ft.
Bedrooms: 4           Bath: 3.1
Garage: 3
Styles: Cape Cod, Southern
Foundation: Crawl Space Foundation, Optional Basement Foundation, Optional Concrete Slab Foundation
Designer Notes:
Learn more about the amenities and key features of Somerset-3104 House Plan.

Available Packages
 PDF BID SET  $800.00
 1 set  $804.00
 4 sets  $824.00
 8 sets  $864.00
 12 sets  $914.00
 Reproducible Set  $954.00
 PDF Construction Set - 1 Build  $954.00
 Cad Files  $1,908.00
Foundation Options
 Crawl Space Foundation  $0.00
 Optional Basement Foundation  $90.00
 Optional Concrete Slab Foundat...  $90.00
Plan Options
 ENERGY STAR® Approved  $375.00
 Additional Sets   $50.00
 Materials List   $80.00
 Materials List additional sets are available   $15.00
 Mirror Reverse Set   $60.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:66' 0"
Depth:80' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Traditional
Cape Cod
Southern
Farm House
  FACADE
Brick
Stucco
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:2092 Sq. Ft.
Upper Level: 1027 Sq. Ft.
Total: 3119 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:1317 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:3
  FOUNDATION
Crawl Space Foundation
Optional Basement Foundation
Optional Concrete Slab Foundation
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:29' 0"
  FRAMING INFORMATION
Exterior Wall Framing:2x6
  ROOF PITCH
Primary:9/12
  ROOF LOAD
Live:20
Dead:10
  INSULATION (R)
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19
  KEY FEATURES
Attached
  KEY FEATURES
Front Porch
