HOUSE PLANS SALE
START AT $1,955.00
SQ FT
5,109
BEDS
5
BATHS
5.5
STORIES
2
CARS
3
WIDTH
80'
DEPTH
98'
© copyright by designer
Photographs may reflect modified home | View all 1 images
SQ FT
5,109
BEDS
5
BATHS
5.5
STORIES
2
CARS
3

House Plan 6428: Santa Barbara

The alurring arches get your attention in the curb appeal of this home. It doesn't stop there either, arches again greet you as you enter the foyer area. Straight ahead is the living room that opens to the covered patio beyond. On one side you have the master wing on the other the family wing. Thru the gallery past the den/study you enter the large master suite. The master bedroom has a sitting area and access to the covered patio. Leading to the master bath are large his and her walk-in closets. The lavish master bath has a corner tub, large door-less walk-in shower, his and her vanities hers with a make-up area and a private toilet chamber.

In the center formal core of this home we have the columned and arched large formal dining room and living room. Following the gallery into the family wing were led to the turret stairway. To one side is the access to bedroom 2 and laundry room. Note the area next to the laundry that can be used for open shelving or built in desk/study area.

On the other side of the stairway is the combination family room, kitchen and nook areas. Again columned arches seperate the nook from the family room. Note the game room beyond, ideal for a pool table.

The second floor has two additional bedrooms with private baths, a loft area and a large bonus room. Note the deep balcony that each of the bedroom and loft access.

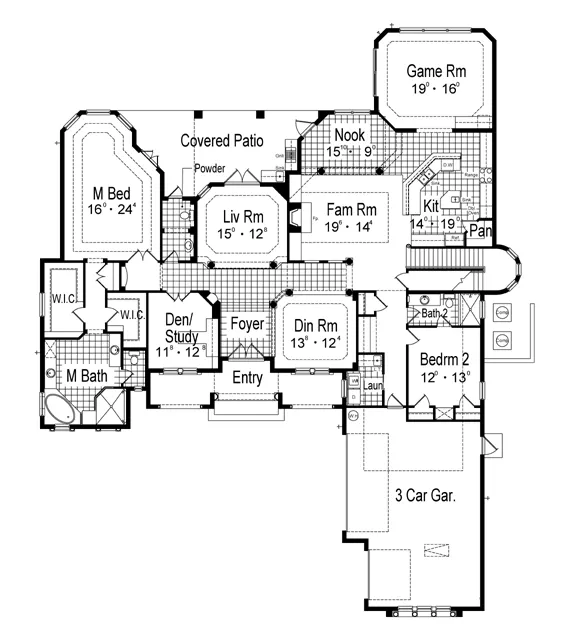

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$900
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,300
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$2,500
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$2,650
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$4,600
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Garage Location
Side
Garage Options
Attached
Foundation Options
Slab

Hide Plan Features
Details:
View All Plan Details
5,109 Ft
2
Total Heated:
3,476 Ft
2
1st Floor:
1,633 Ft
2
2nd Floor:
5
Bedrooms:
5.5
Bathrooms:
3
Garage:
2
Stories:
80' 0"
Width:
98' 0"
Depth:
Block
Framing:
Truss
Roof Framing:
6/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
729 Ft
2
Garage:
198 Ft
2
Porch:
332 Ft
2
Deck:
361 Ft
2
Patio:
352 Ft
2
Bonus Room:
Exterior Styles
Contemporary
Mediterranean
Collections
Florida
Luxury

Hide Plan Details
