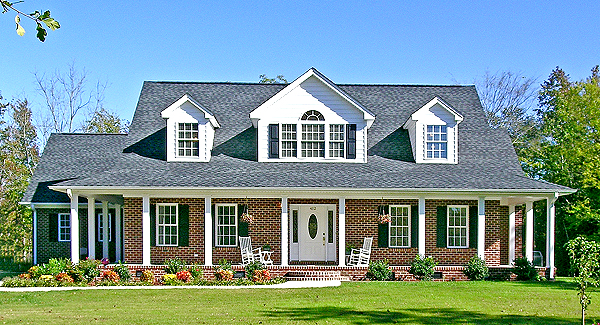

  1. Front Photo

    Front Photo

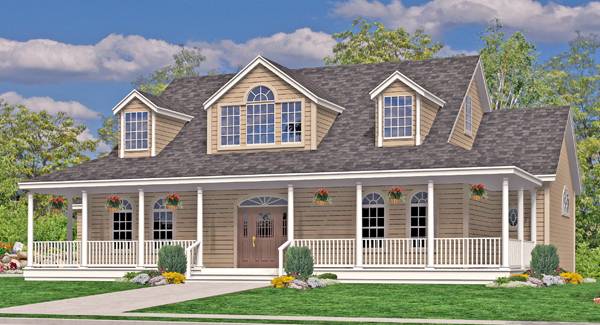

  2. Front Rendering

    Front Rendering

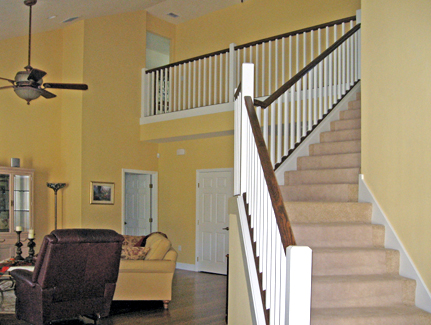

  3. Great Room

    Great Room
  4. Front Photo #1

    Front Photo #1
  5. Front Rendering

    Front Rendering

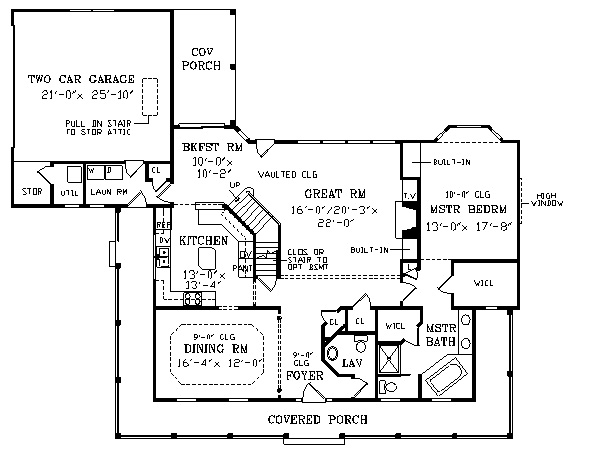

  6. First Floor Plan

    First Floor Plan

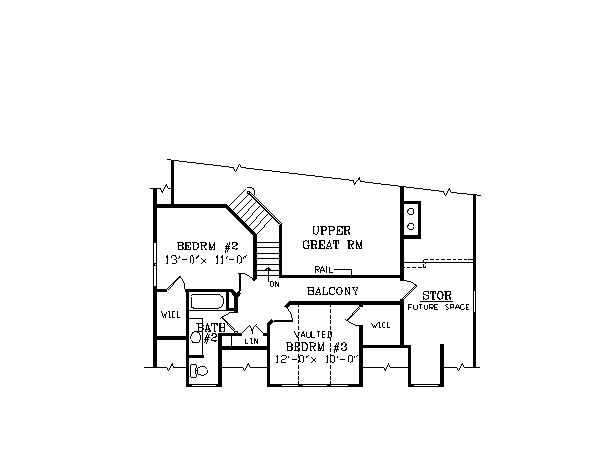

  7. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
A covered wrap-around porch and lovely arched windows give this home a comfortable country style. The attached garage is set way back to minimize it's impact and help retain the classic farmhouse appeal. The huge Great Room features an 18-ft.  Read more >
read our customer stories and testimonials
"The sales person was extremely helpful and friendly! She was always willing to answer any questions I had and was always patient with us during such an important decision. The blueprints arrived on time and in perfect condition. We are currently building and are looking forward to the finished product!"
Customer Review:
— Nease of MARIETTA, SC
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

First Floor Plan

First Floor Plan
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #2802: RALEIGH

ENERGY STAR Heated Area: 2,245 Sq. Ft.
First Floor: 1,720 Sq. Ft.
Second Floor: 525 Sq. Ft.
Bonus: 224 Sq. Ft.
Width: 68 Ft.    Depth: 57 Ft. 6 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Country, Southern
Foundation: Basement, Crawl Space, ICF - Basement (Insul. Conc. Forms), ICF - Slab (Insul. Conc Forms), Slab Foundation

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Review Set with Material List  $179.00
 PDF BID SET PDFs Now!   $675.00
 Upgrade From a Review Set  $716.00
 Four Set Package  $775.00
 Eight Set Package  $895.00
 PDF Construction Set - Single Use PDFs Now!   $995.00
 Reproducible Vellum Set  $1,025.00
 CAD FILE - single use  $1,545.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 ICF - Slab (Insul. Conc Forms)  $100.00
 Basement PDFs Now! available   $150.00
 ICF - Basement (Insul. Conc. F...  $175.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Additional Set   $50.00
 Full Reverse Plans If available   $350.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
68' 0"
Width:
57' 6"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
EXTERIOR STYLE
Traditional
Country
Southern
Farm House
Concrete
Tennessee
North Carolina
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,720 Sq. Ft.
Main Level:
525 Sq. Ft.
Upper Level:
2,245 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
502 Sq. Ft.
Garage:
224 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
ICF - Basement (Insul. Conc. Forms)
ICF - Slab (Insul. Conc Forms)
Slab Foundation
HOUSE AND CEILING HEIGHTS
9.1
First Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9: 12
Primary:
ROOF LOAD
30
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
Attached
Covered Front Porch
Covered Rear Porch
Expandable
Fireplace
Great Room
Laundry 1st Fl
KEY FEATURES
Master Bdrm Main Floor
Nook / Breakfast Area
Rear Porch
Vaulted Ceilings
Wrap Around Porches
Wraparound Porch
